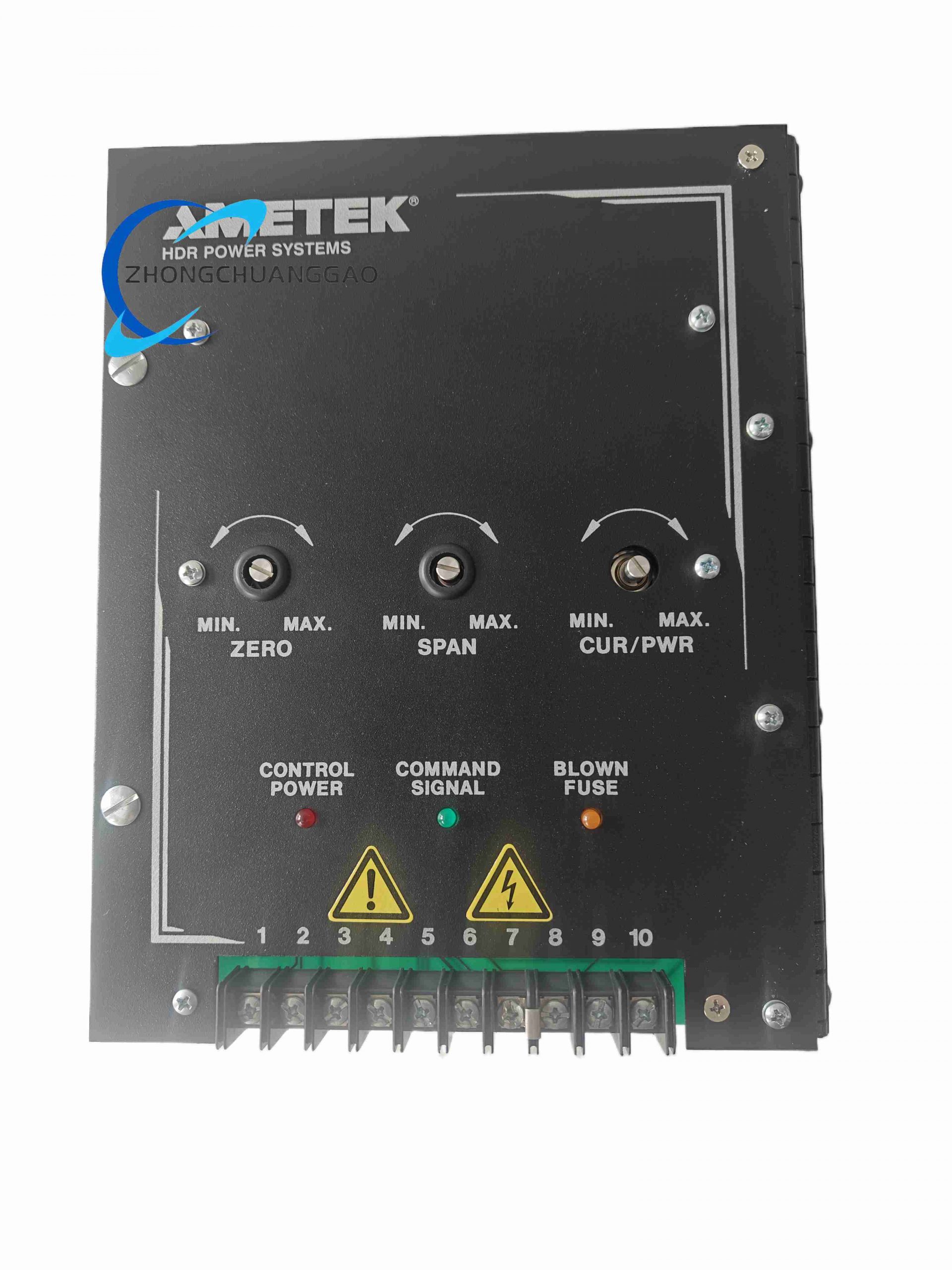

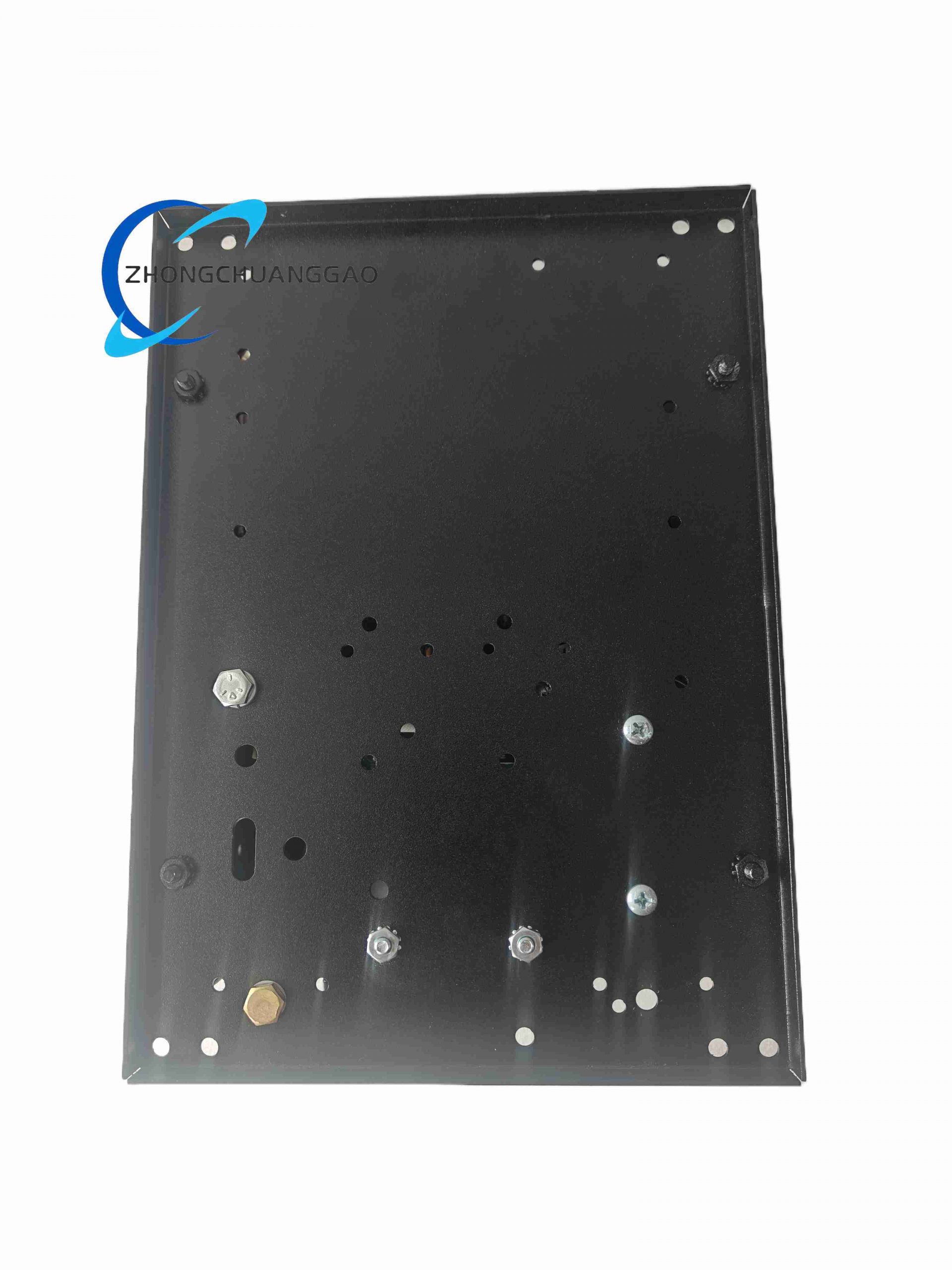

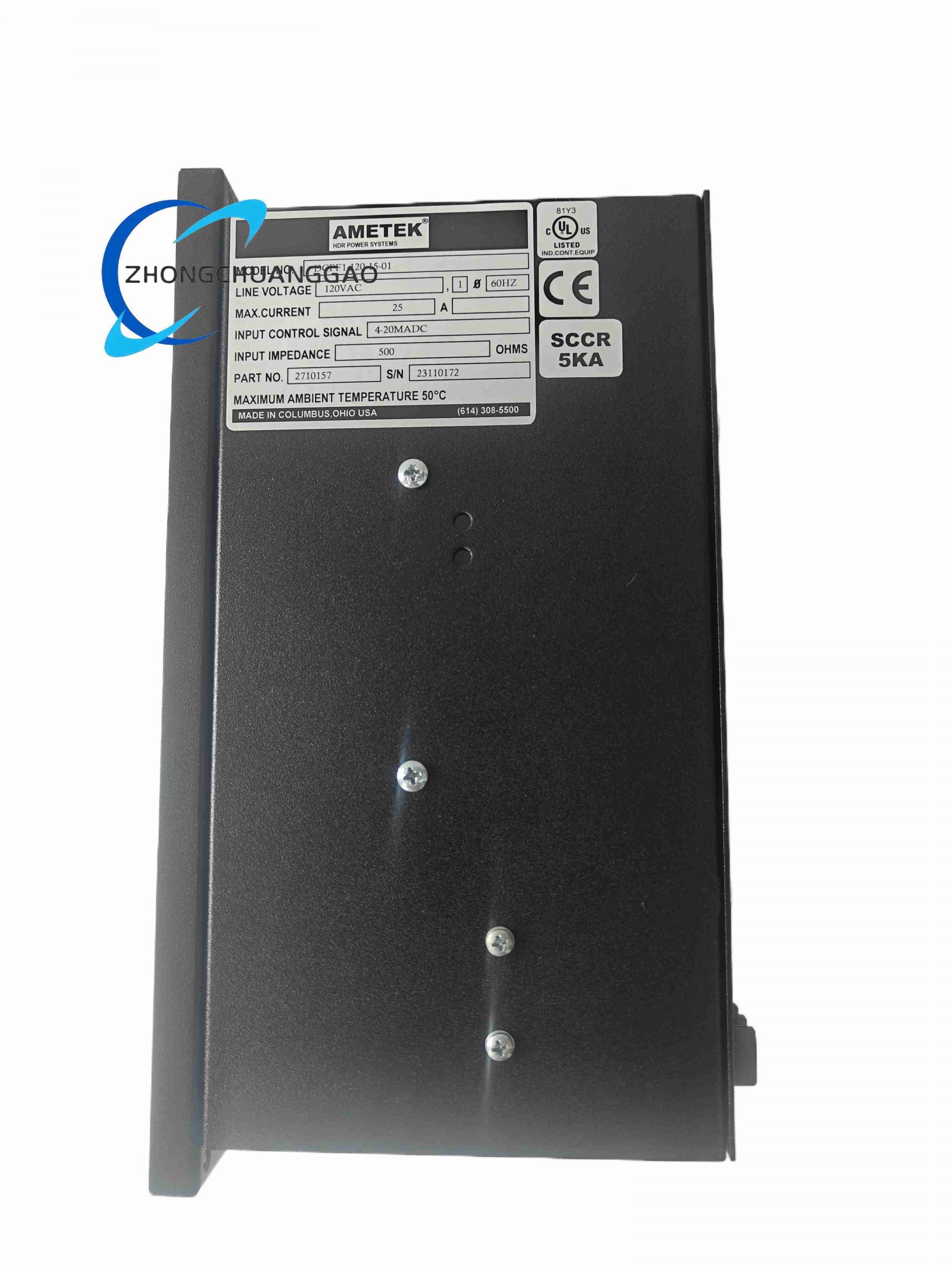

AMETEK DCPF1-120-15-01

Model Series Definition

• DCPF: Dense Compact Programmable Force-Fan power supply series
• 120: Max rated output voltage 120 VDC
• 15: Max continuous output current 15 A
• 01: Standard analog isolated control base configuration

Technical & Performance Parameters

1. Output Electrical Specs
   • Output Voltage Range: 0 – 120 VDC
   • Output Current Range: 0 – 15 ADC
   • Rated Output Power: 1800 W continuous
   • Static Voltage Regulation Accuracy: ±(0.03% full scale + 6 mV)
   • Static Current Regulation Accuracy: ±(0.05% full scale + 10 mA)
   • Ripple & Noise (20 Hz – 20 MHz): < 8 mVrms / 40 mVp-p
   • Voltage Programming Response Speed: < 1 ms (90% full-scale step change)
   • Load Transient Recovery Time: < 2 ms for 10%–90% load jump
2. Input Electrical Specs
   • Input AC Voltage: 200–240 VAC single-phase, 50/60 Hz
   • Input Power Factor: ≥ 0.92 at full load
   • Full-load Efficiency: Up to 89%
3. Environmental Specs
   • Operating Ambient Temperature: 0°C to 50°C
   • Storage Temperature: -40°C to +70°C
   • Operating Humidity: 5%–90% non-condensing
   • Cooling Method: Forced front-to-rear fan air cooling
4. Mechanical Dimensions & Weight
   • Overall Size (W × H × D): 419 mm × 44 mm × 465 mm (19-inch rack, 1U height)
   • Net Weight: 9.8 kg

Material Composition

• Outer Chassis: Cold-rolled steel with matte black powder anti-corrosion coating
• Internal Power PCB: FR4 high-temperature flame-retardant circuit board
• Power Switching Devices: Silicon IGBT power transistors
• Heat Dissipation Components: Aluminum extruded heat sinks
• Terminal Blocks: Copper alloy with nickel plating, high temperature resistant plastic housing

Structural Features

• Standard 1U rack-mount frame with integrated rack ear mounting holes
• Front panel: Digital voltage/current dual display, output enable toggle, local adjustment knobs, fault indicator LEDs
• Rear panel: AC input terminal block, isolated analog control port, optional communication expansion slot, DC output binding posts, fan air outlet
• Internal layered isolation layout: Power conversion layer separated from control signal layer via metal shielding partition
• Built-in overcurrent, overvoltage, overheat hardware protection circuit modules

Working Principle

Core Function Features

1. Closed-loop high-precision voltage & current dual regulation mode, automatic cross-over between constant voltage (CV) and constant current (CC)
2. Standard isolated analog control interface (0–10 V analog signal corresponds to full-scale voltage/current adjustment)
3. Optional communication expansion modules: GPIB, LXI LAN, USB full digital remote control
4. Built-in output short-circuit continuous protection, auto-recovery after fault clearance
5. Over-temperature protection with staged fan speed adjustment
6. Front-panel local manual adjustment lock function to prevent accidental parameter modification
7. Remote sense terminals eliminate voltage drop error from long output cables

Advantage Highlights

1. Ultra-compact 1U high power density design, saves cabinet rack space for multi-unit stacked integration
2. Ultra-low ripple noise performance, meets precision semiconductor testing requirements
3. High full-load energy efficiency reduces long-term operating power consumption
4. Multi-layer electromagnetic shielding structure, strong anti-interference capability for industrial automation environments
5. Wide temperature operating range without performance derating below 40°C ambient
6. Modular communication expansion design supports seamless integration with automated test equipment (ATE) systems

Applicable Industries

Installation Requirements

1. Mount on standard 19-inch industrial electrical rack, reserve ≥150 mm rear ventilation clearance
2. Install horizontally only; vertical mounting is prohibited to avoid heat sink heat accumulation
3. AC input wiring must match rated current wire gauge (minimum 2.5 mm² copper wire) with dedicated grounding wire
4. Remote sense wires must be twisted shielded cables, routed separately from power output cables
5. Communication signal cables require 120 Ω terminal matching resistors for long-distance wiring

Operation & Maintenance Precautions

1. Do not operate without load for long durations; no-load operation exceeding 2 hours triggers automatic low-power standby
2. Regularly clean front air intake filter every 3 months to prevent fan blockage and overheating faults
3. Disconnect AC input power before opening chassis for internal inspection to avoid high-voltage electric shock hazards
4. Do not connect capacitive loads exceeding 1000 μF without pre-charge configuration
5. Ambient operating temperature exceeding 50°C causes automatic power derating to 70% rated output
