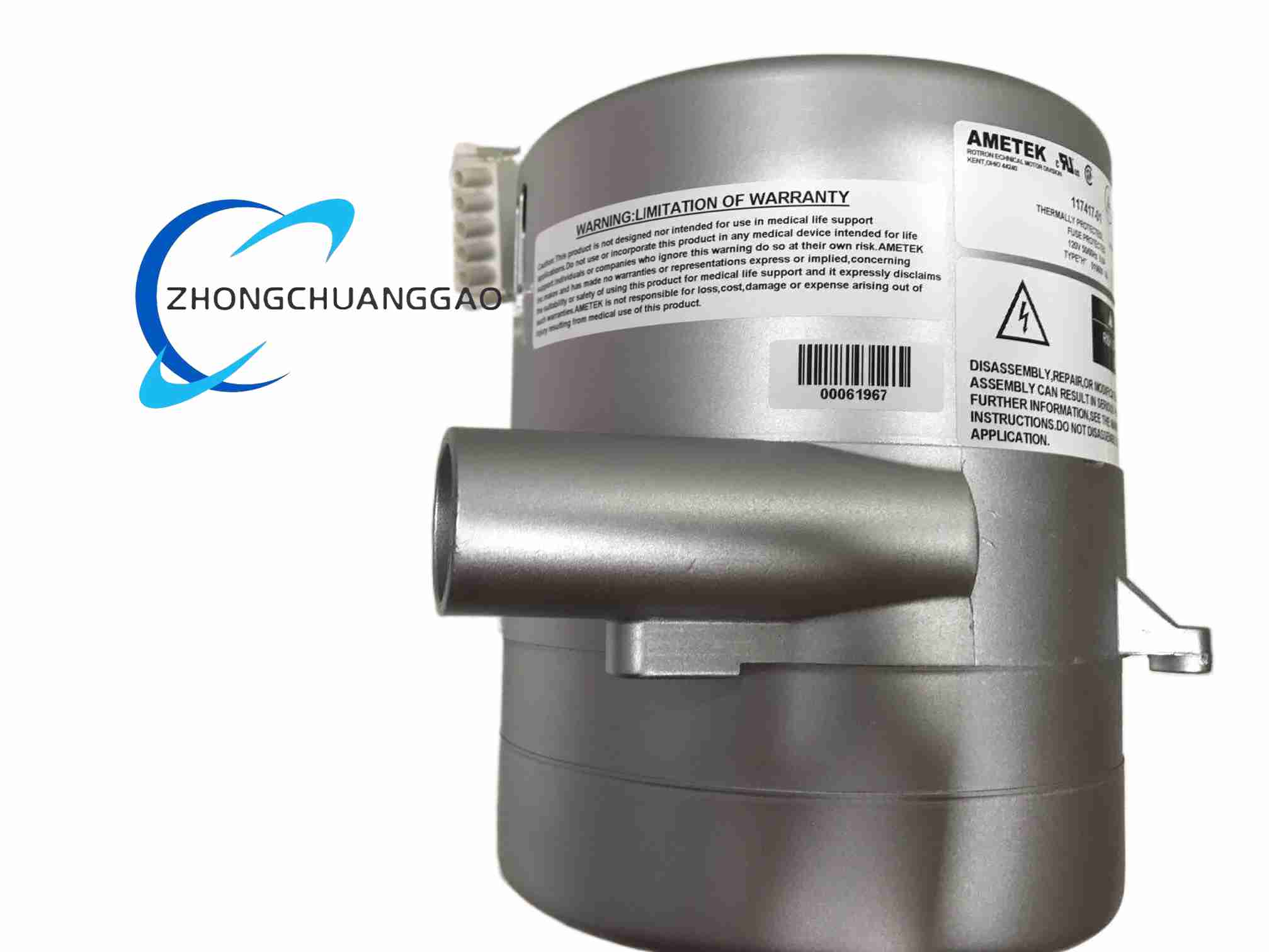

AMETEK 117417-01

Description

• Used where controlled airflow, cooling, vacuum, or pressure is required.
• Suitable for industrial equipment, analytical instruments, and process systems.
• Designed for continuous-duty operation in controlled environments.

• Manufacturer:​ AMETEK Technical and Industrial Products
• Model:​ 117417-01
• Product Type:​ Brushless DC blower controller or centrifugal blower component depending on source description
• Voltage Rating:​ 120 VAC reported for blower assembly listings; 11-52 VDC reported for related BLDC controller data
• Current Rating:​ Around 5 A continuous reported for controller-related data
• Power Rating:​ Up to approximately 800 W reported for blower listings
• Airflow:​ Around 76 CFM reported for blower listings
• Speed Control:​ 0-5 VDC or 0-10 VDC analog control reported depending on document
• PWM Control:​ 150 Hz to 400 Hz reported in related controller data
• Dimensions:​ Approximately 145 × 174.5 mm reported for blower listings
• Operating Temperature:​ 0°C to 50°C reported
• Compliance:​ RoHS reported in component listings

• Variable speed control through analog input or PWM signal.
• High-efficiency centrifugal airflow path.
• Brushless motor design for long service life.
• Optical isolation reported for low-voltage control circuits in related data.
• Backward-curved impeller for efficient air movement.
• Usable for pressure or vacuum applications depending on installation.

• Industrial cooling systems
• Analytical instruments
• Laboratory equipment
• Vacuum or pressure systems
• Process automation equipment
• Medical or scientific air-handling devices
• Electronic enclosure cooling

• Centrifugal blower housing or controller board depending on configuration.
• Backward-curved impeller assembly in blower versions.
• Terminal or connector interface for power and control.
• Compact industrial construction for panel or equipment integration.
• Drive electronics with rectifier, filter, and commutation control in related controller data.

• Receives DC or AC power depending on blower or controller variant.
• Electronic drive stages commutate the brushless motor.
• Impeller rotates to move air through inlet and outlet ports.
• Control voltage or PWM signal adjusts motor speed.
• Airflow, pressure, or vacuum output follows commanded speed setting.

• Mount on stable support with adequate clearance for airflow.
• Ensure inlet and outlet paths are free from obstruction.
• Use correctly rated power supply and wiring.
• Provide proper ventilation for controller cooling.
• Ground equipment according to manufacturer instructions.
• Verify voltage class because AC blower and DC controller data differ by source.

• Do not operate outside 0°C to 50°C ambient range reported for listed versions.
• Prevent foreign objects from entering blower inlet.
• Avoid blocking exhaust or suction ports.
• Inspect filters and impeller area periodically.
• Do not exceed rated current and power limits.
• Replace faulty units with identical catalog number when exact function must be preserved.
