Description
Technical Specifications
- Input Channels: 16 isolated analog inputs
- Input Signal Ranges: ±10 V DC, 0–10 V DC, 4–20 mA DC
- Resolution: 16-bit
- Accuracy: ±0.1% full scale at 25 °C
- Isolation Voltage: 1500 V AC (channel-to-channel)
- Sampling Rate: 100 Hz per channel
- Power Supply: 24 V DC ±10%, 0.8 A
- Operating Temperature: 0 °C ~ +50 °C
- Protection Class: IP30
- Dimensions (L×W×H): 340 mm × 220 mm × 35 mm
- Weight: 1.0 kg

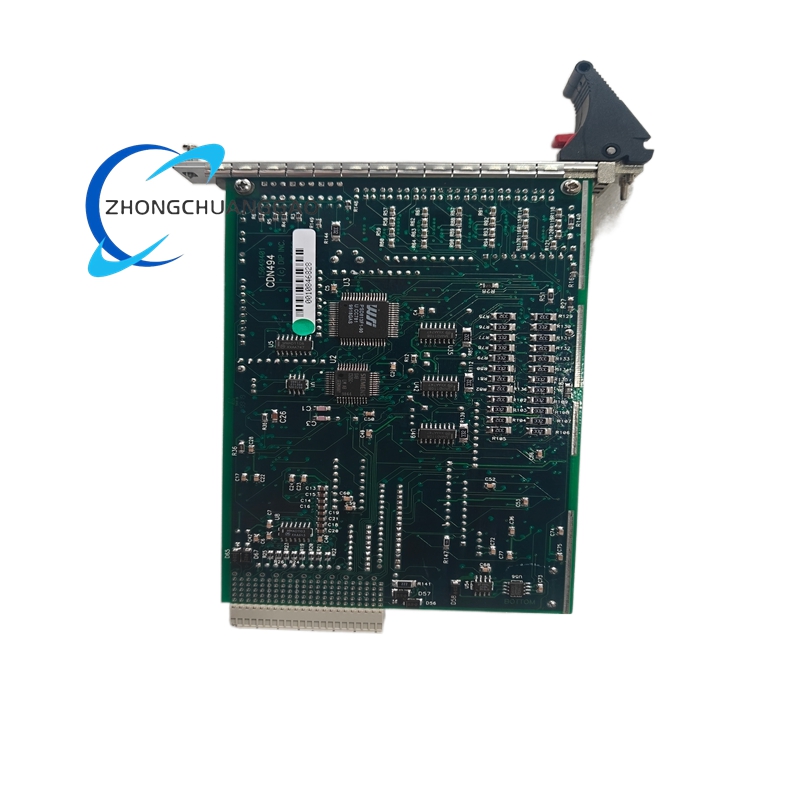

Structural Features
VMEbus-compatible form factor, 16-channel signal conditioning circuits, opto-isolated inputs, LED status indicators, gold-plated edge connectors, surge protection on all input lines.
Functional Characteristics
Precise acquisition of analog process parameters (temperature, pressure, flow, voltage) in semiconductor equipment; converts field analog signals to digital data for the controller; provides electrical isolation and noise filtering.
Working Principle
Input signals pass through surge protection and signal conditioning circuits; optocouplers provide electrical isolation; a 16-bit ADC converts analog signals to digital data; the module transmits data to the controller via the VMEbus.
Material Composition
- PCB: FR-4 high-temperature resistant substrate with gold-plated contacts
- Signal Conditioning Components: Precision resistors, capacitors, amplifiers
- Connectors: Tin-plated copper alloy
- Housing: Flame-retardant plastic (UL94 V-0)
Advantages & Highlights
High measurement accuracy, 16-bit resolution, 1500 V isolation, multiple input ranges, robust noise filtering, compatibility with AMAT process controllers, reliable operation in cleanroom environments.
Applicable Industries
Semiconductor manufacturing (process monitoring, data acquisition), industrial automation, chemical processing, pharmaceutical manufacturing, precision testing equipment.
Installation Requirements
- Insert into a standard VMEbus slot in the equipment controller.
- Secure the module with front panel screws.
- Connect shielded cables to analog input channels.
- Ensure adequate airflow around the module.
Usage Notes
- Avoid static electricity discharge when handling the module.
- Use shielded cables for analog signal wiring to reduce noise.
- Keep the edge connectors clean and free of dust.
- Disconnect power before wiring or maintenance.
