Product Short Description
Product Overview:

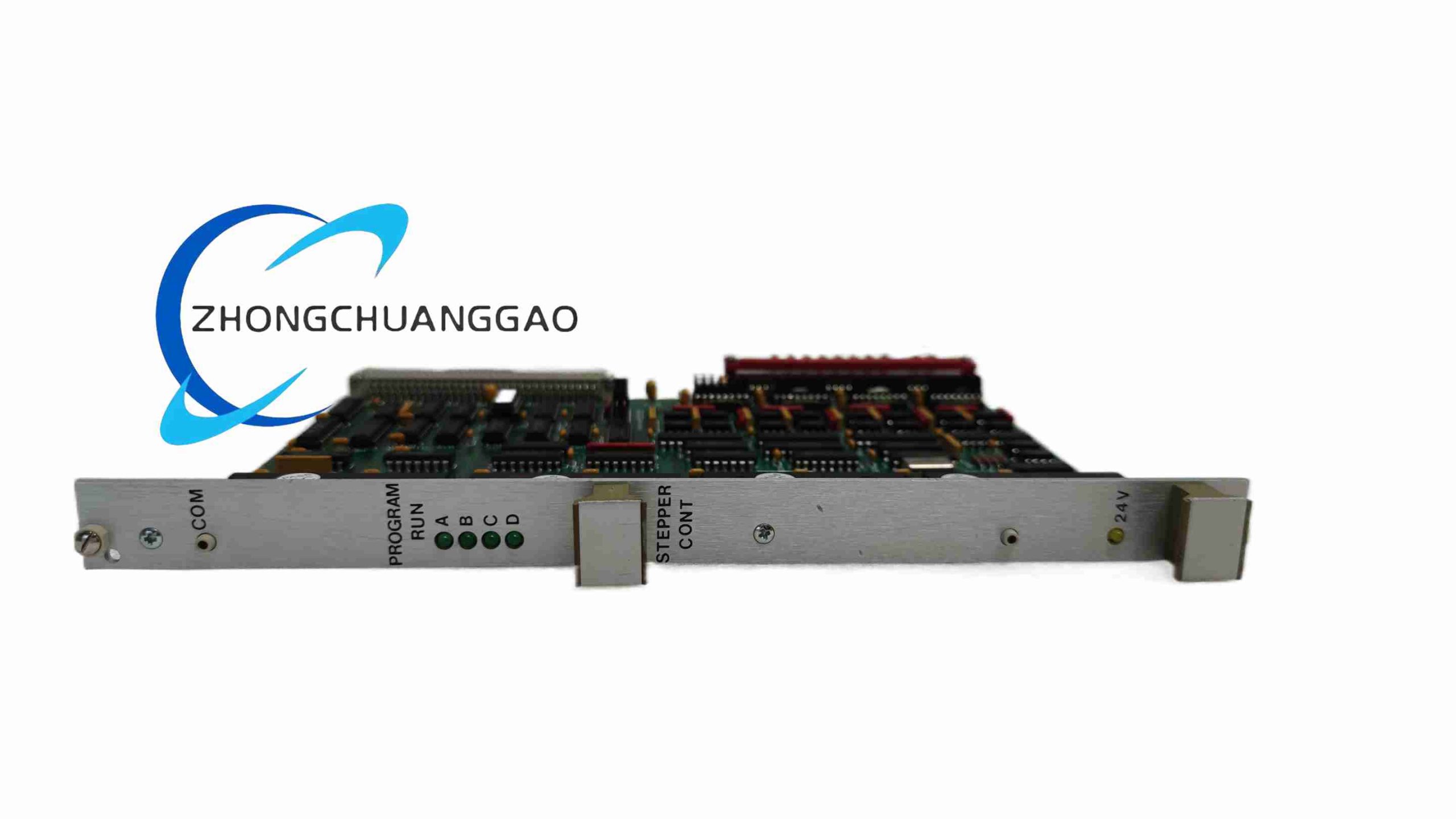

The AMAT 0100-00003 is a high-reliability VME stepper drive controller PCB designed by RadiSys for Applied Materials. This board is a legacy powerhouse in the semiconductor industry, specifically engineered to provide precise motion control for stepper motors used in wafer handling and positioning systems.
Description
Key Features:
-
Deterministic Micro-Stepping: Ensures vibration-free movement, protecting delicate wafers from sliding or breakage.
-
VMEbus Architecture: Utilizes the robust, industrial-standard VMEbus, known for reliability in high-interference cleanroom environments.
-
Real-Time Monitoring: Integrated feedback loops allow instant detection of motor stalls or mechanical obstructions.
-
Long Lifecycle: Field-proven with many units still in operation after 20+ years of 24/7 service.
-
Diagnostic LEDs: Onboard indicators for Power, Status, and Fault conditions.
Technical Specifications:
|
Parameter
|
Specification
|
|---|---|
|
Manufacturer
|
RadiSys / Applied Materials (AMAT)
|
|
Part Number
|
0100-00003
|
|
Alternative P/N
|
0100-00077 (cross-referenced in some systems)
|
|
Board Type
|
B-Sized VME Module
|
|
Function
|
Multi-axis Stepper Motor Drive/Control
|
|
Communication
|
VMEbus Interface
|
|
Shipping Weight
|
Approx. 1.36 kg (3 lbs)
|
|
Compatibility
|
AMAT Precision 5000 (P5000), Endura, Centura
|
|
Related Models
|
0100-09123 (Wafer Sensor Board), 0100-09145 (Video Interconnect Board), 0190-11528 (VME SBC), 0100-02100 (System Controller)
|
Working Principle:
This controller provides deterministic motion through micro-stepping capabilities. It communicates via the VMEbus interface and drives stepper motors with precision, ensuring vibration-free movement for wafer handling.
Application Scenarios:
-
AMAT Precision 5000 (P5000): Controlling robotic arms and susceptor lift mechanisms during CVD/Etch processes.
-
Wafer Handling Robots: Managing micro-stepping required for smooth substrate transfer between chambers.
-
Slit Valve Control: Driving stepper motors that open/close vacuum isolation valves.
Installation & Maintenance:
-
Install using standard VME “B-size” form factor—align with rack guides and use ejector handles to seat 96-pin DIN connectors firmly.
-
Always use an ESD-safe workspace; static electricity can destroy onboard ICs.
-
Verify DIP switch settings for VME base address match the board being replaced.
-
Inspect for burnt smells or discolored components near motor driver transistors (highest heat generation areas).
-
Fault LED lit typically indicates motor over-current or communication timeout with main CPU.
