Product Short Description

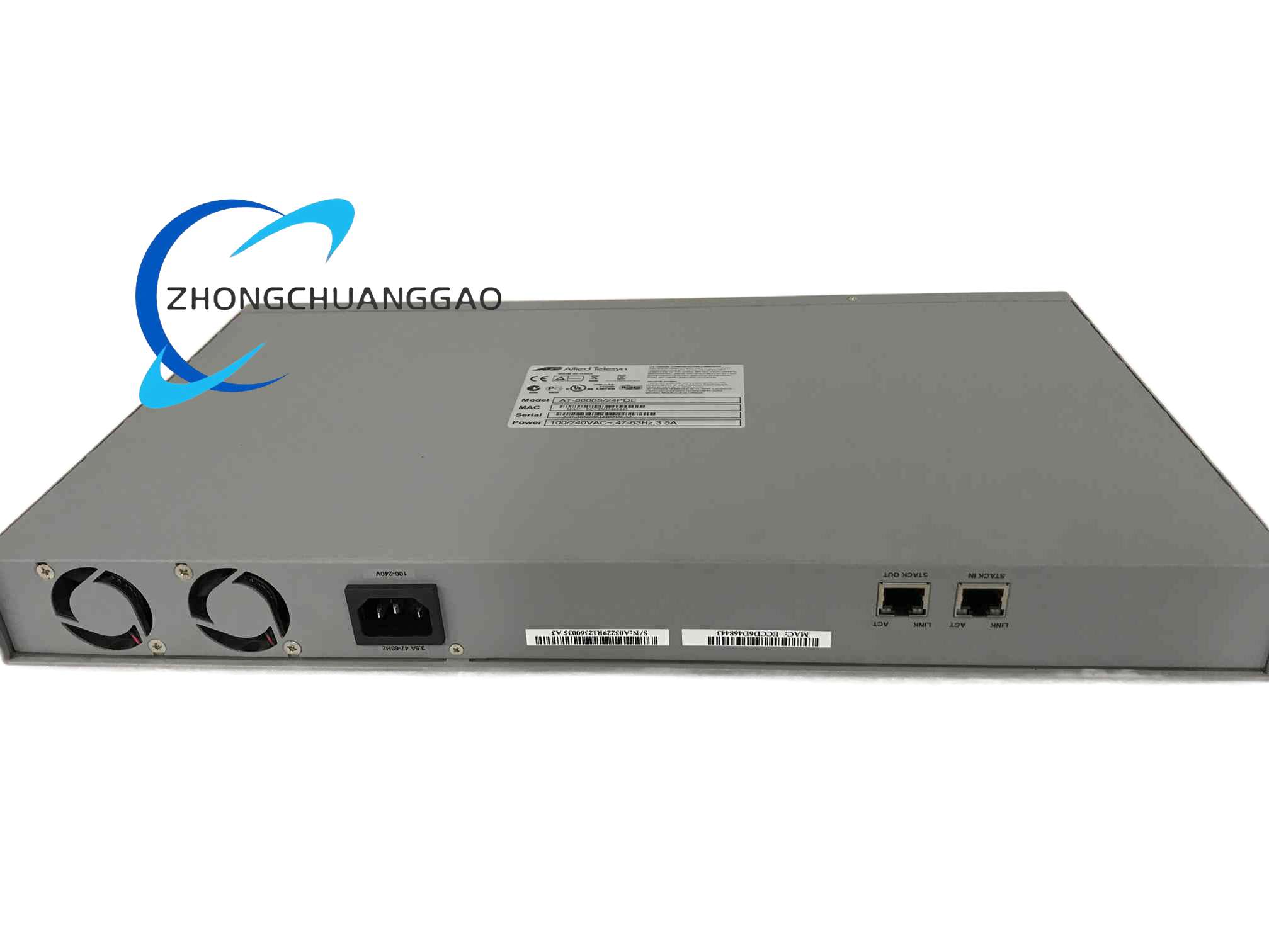

Product Name: Allied Telesis AT-8000S/24POE, Layer 2 Stackable Fast Ethernet Switch with PoE
Product Introduction: The AT-8000S/24POE is an entry-level managed Layer 2 stackable Fast Ethernet switch designed for SMB, small office/field office, and wiring closet deployments. It combines affordable fixed-configuration switching with Power over Ethernet capabilities to power edge devices such as IP phones and wireless access points.
Description
Technical Specifications:
-
Switching Capacity: 12.8 Gbps
-
Throughput: 9.52 Mpps
-
CPU: 400 MHz
-
Memory: 64 MB RAM, 16 MB flash
-
Packet Buffer: 1 Mbit
-
MTBF: 194,113 hours
-
VLAN Support: Up to 4,096 VLAN IDs, 256 active VLANs
-
MAC Address Table: 8,000 entries
-
Latency: 10Mbit 85.39 µsec / 100Mbit 17.76 µsec / 1000Mbit 2.72 µsec
-
Dimensions: 440 × 257 × 43 mm (W×D×H)
-
Weight: 3.7 kg
-
Mounting: 19-inch rack-mountable (hardware included)
Interface Configuration:
-
24 × 10/100TX PoE RJ-45 ports
-
2 × SFP slots (combo with 10/100/1000T RJ-45 ports)
-
1 × RS232 DB9 console port
-
Total: 26 interfaces
PoE Characteristics:
-
Total Power Budget: 225 W (45 W for switch + 180 W for PoE)
-
IEEE 802.3af Compliant
-
Supports up to 12 class 3 devices (15.4 W each) or 24 class 2 devices (7.3 W each)
-
Mode B PoE
Functional Features:
-
Wire-speed switching on all ports
-
Store-and-forward mode, non-blocking switch fabric
-
Auto MDI/MDI-X
-
IEEE 802.1D/w/s Spanning Tree, LACP link aggregation (up to 8 members per group)
-
IEEE 802.1p QoS, ToS/DSCP mapping
-
IEEE 802.1Q VLAN tagging, GVRP, private VLANs
-
IGMP snooping v1/v2/v3
-
Port security, 802.1x authentication, RADIUS
-
Secure management: SNMP v1/v2c/v3, SSH v2, SSL v3, Web UI, CLI
Standards Compliance: IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af
Environmental Specifications:
-
Operating Temperature: 0 °C to 45 °C
-
Storage Temperature: -25 °C to 70 °C
-
Operating Humidity: 10%–90% RH (non-condensing)
-
Storage Humidity: 5%–95% RH (non-condensing)
-
Altitude: Max 3,000 m
Power Characteristics:
-
Input: 100–240 VAC
-
Output: 48 VDC, 1.5 A
-
Heat Dissipation: 768.3 BTU/hour
Application Scenarios: Branch office connectivity, wiring closet aggregation, powering IP phones and wireless APs, higher port density applications via 4 Gbps resilient ring stacking topology.
Installation Requirements: The switch ships with rackmount kit, rubber feet for desktop installation, RS232 management cable, and stacking cable. Configure via industry-standard CLI or Allied Telesis Web interface. Default management uses SSHv2 and SSL for secure encrypted access.
Usage Precautions: Product status is discontinued/end-of-life. FCC Class A, EN55022 Class A, VCCI Class A, C-Tick compliant. UL 1950, EN60950, RoHS compliant.
