Description
- Nominal Throughput: 10 Gbps per module
- Supported Services: VPLS, IES, VPWS and other IP/MPLS services
- Support CCAG (Cross Connect Aggregation Group) link aggregation
- Support QoS policy mapping, traffic policing and shaping
- Support bidirectional traffic load balancing based on conversation hashing
- Operating Temperature: 0 °C ~ +65 °C
Function Features:
- Aggregate multiple cross-connect paths into a logical forwarding group
- Maintain complete ingress and egress service feature set during cross connection
- Support automatic traffic redistribution when single CCA card fails
- Fine-grained traffic statistics and accounting function
Application Scenarios:
Telecommunication carrier IP/MPLS core network, enterprise large-scale layer 2 VPN networking, metropolitan area network service aggregation
Material Composition:
Industrial-grade communication PCB, high-speed signal processing chip, metal shielding frame, gold-plated backplane connectors
Structural Features:

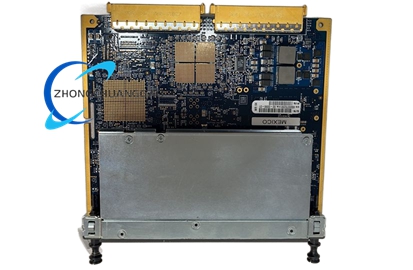

MDA daughter card form factor, pluggable into VSM mainboard slot inside router chassis
Working Principle:
Receive cross-connected service traffic from the service module; distribute data flows to available forwarding members in aggregation group according to hash algorithm; complete traffic forwarding while retaining configured QoS and security policies
Installation Requirements:
Insert into compatible VSM carrier board inside 7750 SR chassis; ensure sufficient chassis airflow cooling
Usage Notes:
All services within CCAG must deploy consistent service configuration; perform traffic planning to avoid bandwidth overload; complete configuration backup before online modification
