Product Short Description

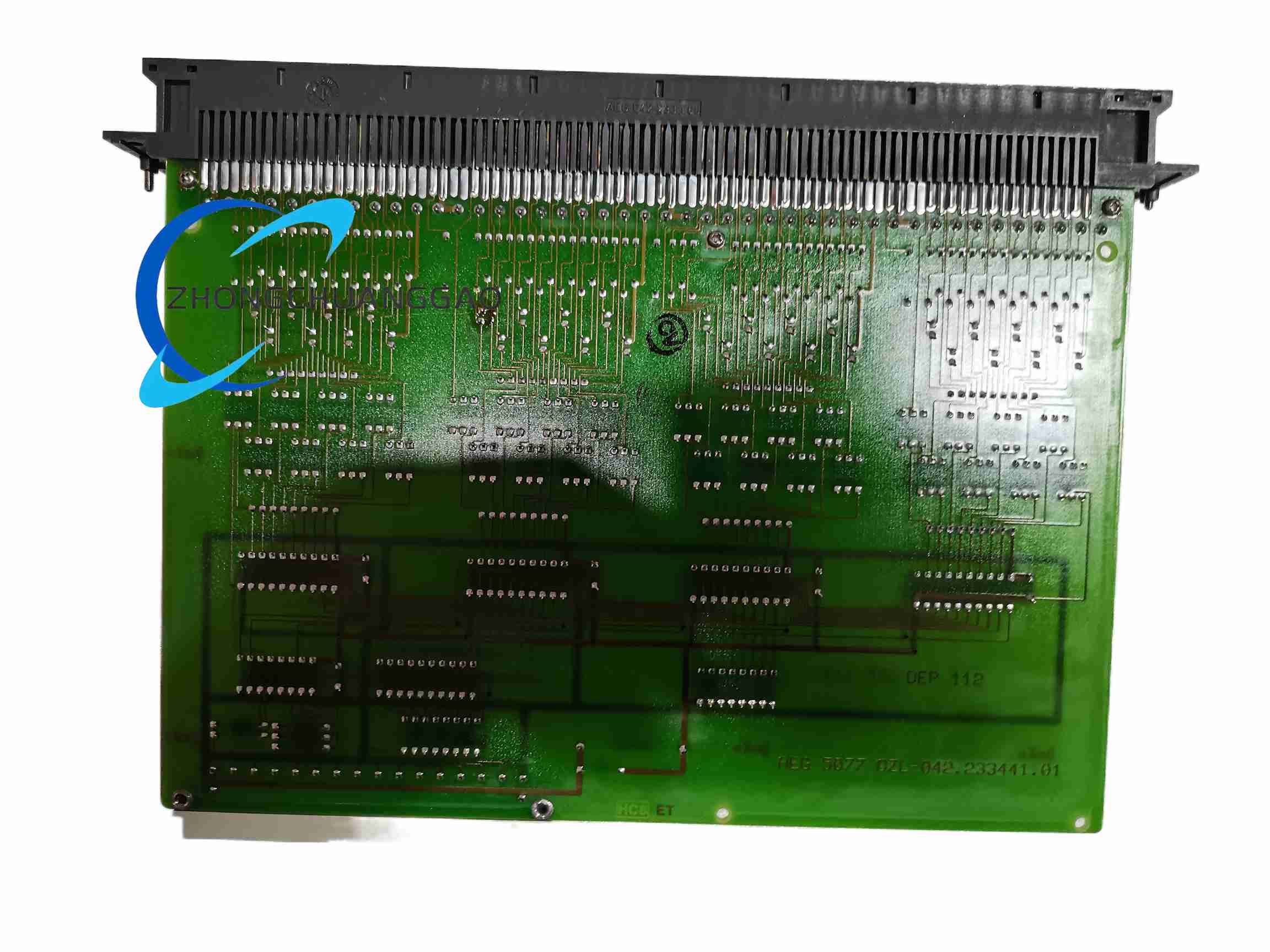

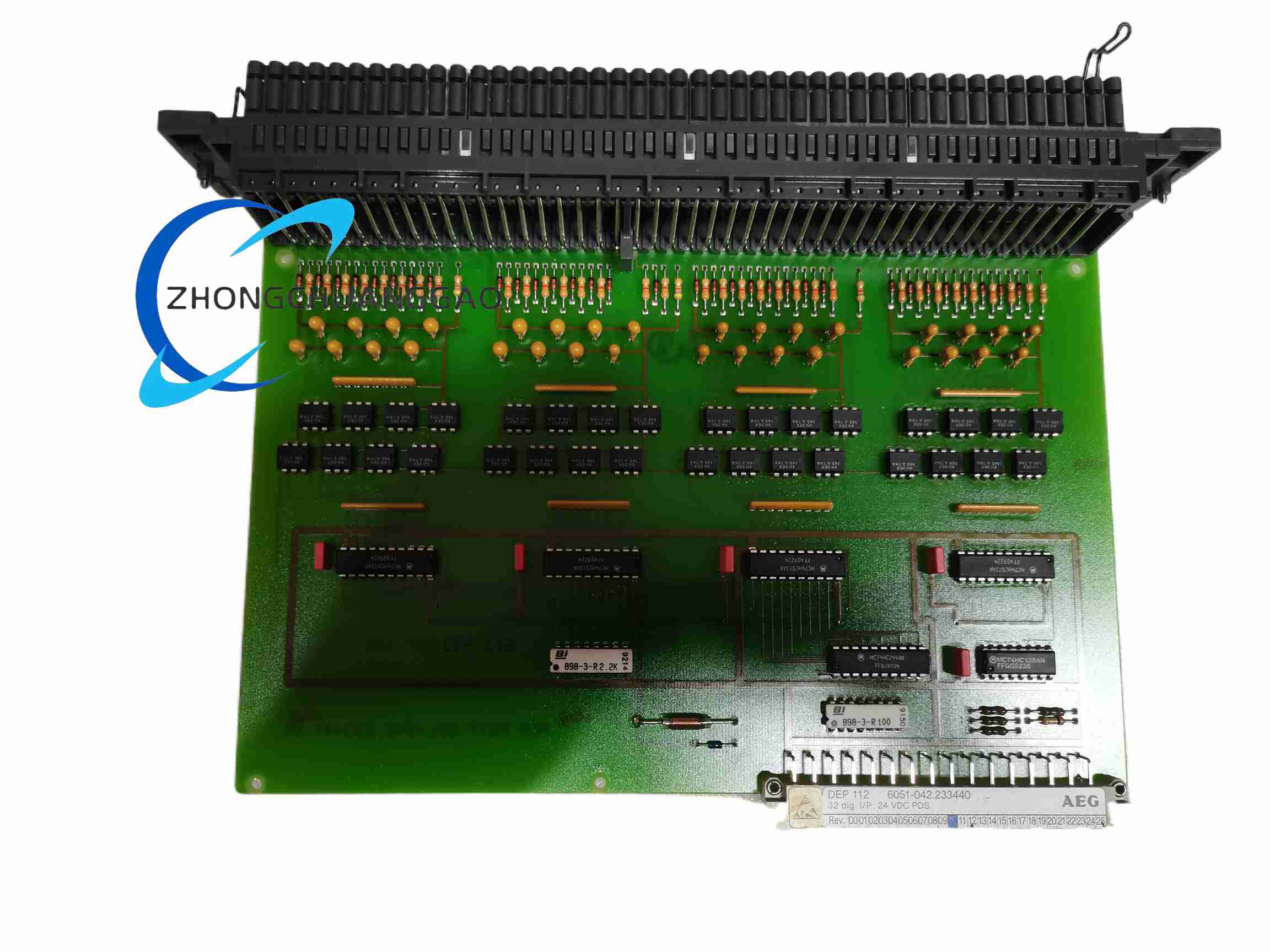

Product Name: AEG Modicon DEP112 6051-042.233440 — Modicon Series Industrial Extension / I-O Module
Product Overview: Based on available supplier documentation, the AEG Modicon DEP112 (6051-042.233440) is an industrial-grade extension module belonging to the Schneider Electric Modicon series. It provides mixed digital and analog I/O expansion with multi-protocol communication capability for distributed control architectures.
Description
Technical Specifications (per available documentation):
- Product Type: Mixed I/O extension module (digital + analog)
- Working Voltage: 24 VDC (±10%)
- Power Consumption: ≤ 5 W (full load)
- I/O Configuration: 16-channel digital input (DI) + 8-channel analog input (AI) hybrid
- Communication Interfaces: EtherCAT (100 Mbps), MODBUS RTU/TCP; optional PROFINET
- Protocol Compatibility: Unity Pro protocol (with Modicon CPUs)
- Protection Class: IP20 (indoor installation)
- Operating Temperature: –20 °C to +70 °C
- Humidity: 10%–95% (non-condensing)
- Certifications: IEC 61131-2, CE, RoHS
- Mounting: Standard DIN rail
- Dimensions: Compact design (~150 × 80 × 50 mm)
- Weight: ~1.2 kg
- Redundancy: Dual power input for continuous operation
Key Features: Hybrid digital/analog I/O configuration; hot-swappable module design for online maintenance; multi-protocol communication (EtherCAT + MODBUS); redundant dual power input.
Application Scenarios: Intelligent manufacturing (production line sensor signal acquisition, actuator control); energy & power (substation protection device I/O expansion); rail transit (train signal system redundant control).
Installation & Usage Notes: Install on standard DIN rail in indoor IP20 environment. Ensure 24 VDC power supply within ±10%. Follow Modicon series wiring and Unity Pro engineering library guidelines.
