Product Short Description

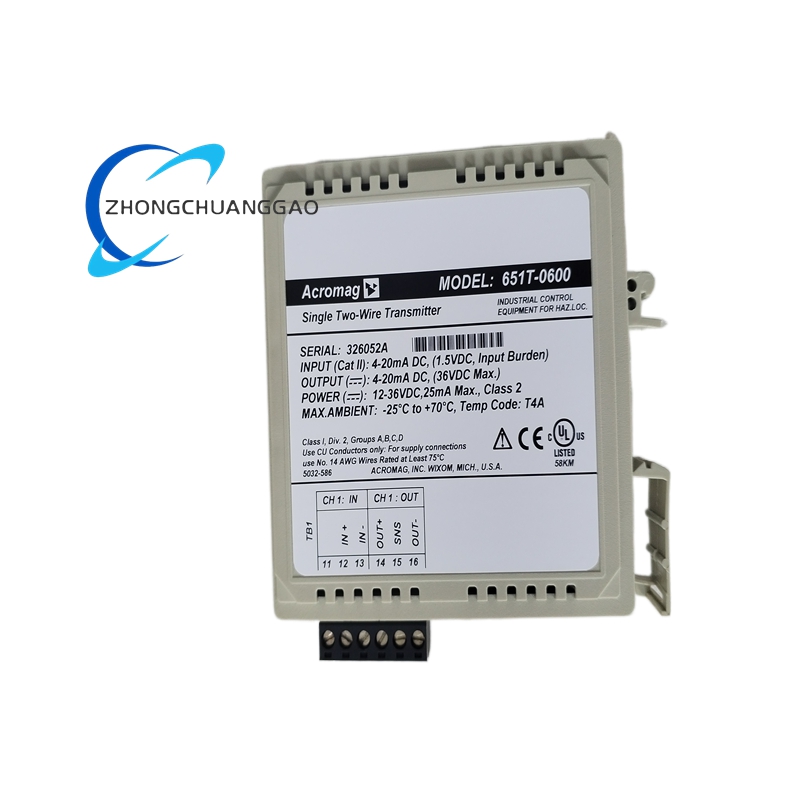

- Product Name: 651T-0600 Signal Isolation Transmitter
- Brief Introduction: Industrial high-precision signal isolation and conversion transmitter, applied to industrial analog signal transmission and isolation protection.
- Technical Specifications: Input signal 4–20 mA DC, output signal 4–20 mA DC, isolation voltage 2500 V AC, response time ≤ 10 ms, measuring range 0–600 (engineering unit customizable).
Description
- Functional Features: Galvanic isolation between input, output and power supply; signal amplification, conversion and anti-interference; overload protection and surge protection.
- Performance Parameters: Overall accuracy ±0.1% FS, temperature drift ≤ 50 ppm/°C, insulation resistance ≥ 1000 MΩ, working frequency DC to 1 kHz.
- Material Composition: Flame-retardant ABS plastic shell, copper alloy circuit board pins, industrial grade electronic components, aluminum alloy heat dissipation base.
- Structural Characteristics: DIN rail mounting structure, compact modular design, sealed shell, terminal screw wiring mode, integrated internal circuit module.
- Working Principle: Adopts electromagnetic isolation technology to isolate industrial analog signals, converts and transmits standard current signals, and filters out on-site electromagnetic interference.
- Advantages: High isolation strength, high measurement accuracy, strong anti-electromagnetic interference capability, wide working temperature range, easy wiring and installation.
- Applicable Industries: Industrial automation, petrochemical, power generation, water treatment, factory process control, instrumentation engineering.
- Series Information: ACROMAG 651T Series Isolated Signal Transmitters, 0600 represents full-scale range configuration.
- Installation Requirements: Install on standard 35 mm DIN rail; ambient installation space ≥ 20 mm for heat dissipation; wiring strictly follow terminal marking.
- Usage Precautions: Prohibit overvoltage input; avoid installation in high-humidity and corrosive gas environment; regularly check wiring tightness every 4 months.
