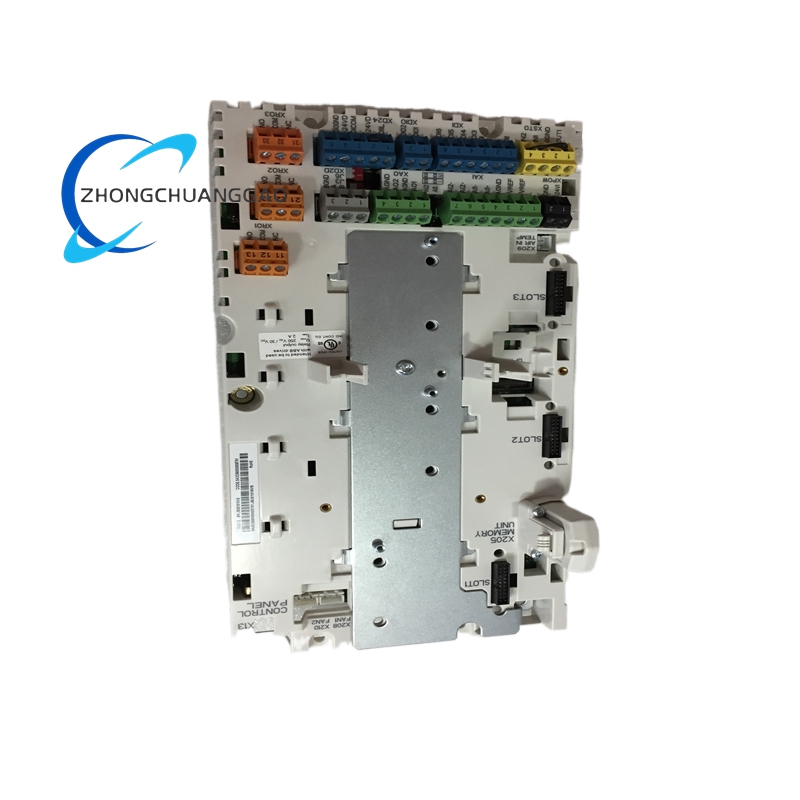

ABB ZCU-12 Inverter Control Unit

Description

Technical Specifications

• Product Type: Core Inverter Control Unit (CPU Board)
• Compatible System: ABB ACS880 Series Multi-Drive Inverters
• Processor: High-Speed 48 MHz Industrial Microprocessor
• Memory: 128 MB RAM, 128 MB Flash Memory
• Operating System: Embedded Real-Time Operating System (RTOS)
• Power Supply: 24 V DC ±10%
• Power Consumption: ≤ 15 W
• Control Modes: Vector Control (FOC), Sensorless Vector Control, PID Closed-Loop Control
• Motor Compatibility: Asynchronous Motors, Synchronous Motors, Servo Motors
• Output Frequency Control: Up to 50 kHz

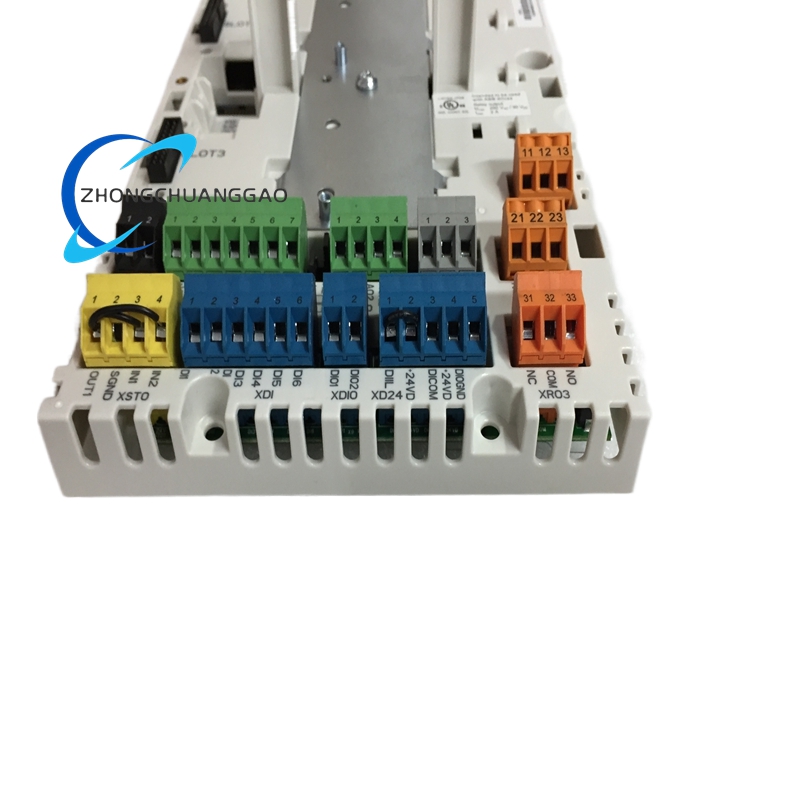

• Digital I/O: 6 Optically Isolated Inputs, 3 Optically Isolated Outputs
• Analog I/O: 2 Differential Inputs (16-bit ADC), 1 Analog Output (12-bit DAC)
• Encoder Interface: RS-422, SSI, Incremental & Absolute Encoder Support
• Communication Interfaces: Ethernet, RS-485, Modbus RTU
• Optional Communication Protocols: EtherCAT, Profibus-DP, PROFINET
• Isolation Voltage: 2.5 kV AC (Signal / Power Circuits)
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -25 °C to +70 °C
• Humidity: 5–95% RH (Non-Condensing)
• Vibration Resistance: 10 g (10–2000 Hz, IEC 60068-2-6)
• Shock Resistance: 30 g (11 ms, IEC 60068-2-27)
• Protection Class: IP20 (Unit), IP54 (Integrated Inverter)
• Dimensions: 120 mm × 110 mm × 125 mm (W × H × D)
• Weight: Approx. 0.6 kg
• Mounting: PCB Screw Mount (Inside Inverter Cabinet)
• Certifications: CE, UL, RoHS, ISO 9001
• Country of Origin: Sweden

Functional Features

Advanced Motor Control Algorithms

• Field-Oriented Control (FOC): Precise decoupling of torque and flux components for optimal motor performance.
• Sensorless Vector Control: Accurate speed and torque estimation without external encoders, reducing system cost.
• PID Closed-Loop Regulation: Integrated PID controller for pressure, flow, temperature, and speed process control.
• High-Frequency Response: Sub-millisecond command execution for dynamic load changes and rapid speed adjustments.
• Auto-Tuning Function: Automatic motor parameter identification for quick commissioning and optimal control setup.
• Multi-Motor Support: Simultaneous control of multiple motors with coordinated operation profiles.

Comprehensive I/O & Signal Management

• Isolated Digital I/O: Optically isolated channels protect against electrical noise and ensure signal integrity.
• High-Resolution Analog I/O: 16-bit analog inputs capture precise sensor data for accurate process feedback.
• Multi-Protocol Encoder Support: Interfaces with incremental and absolute encoders for high-precision position control.
• Configurable Signal Filtering: Hardware and software filtering eliminate electromagnetic interference (EMI).
• Flexible I/O Configuration: User-definable input/output logic for custom application requirements.
• PTC Sensor Input: Dedicated input for motor thermistor protection and temperature monitoring.

Industrial Communication Capabilities

• Standard Ethernet: High-speed communication for SCADA, HMI, and upper-level control systems.
• Modbus RTU (RS-485): Industry-standard fieldbus for reliable serial communication with PLCs.
• Optional Real-Time Ethernet: EtherCAT and PROFINET support for high-speed, synchronized automation networks.
• Data Logging & Transmission: Real-time process data acquisition and transmission for system monitoring.
• Parameter Upload/Download: Easy backup and restoration of inverter configuration via communication ports.
• Network Diagnostics: Continuous monitoring of communication status and error detection.

Robust Protection & Safety Functions

• Overcurrent Protection: Instantaneous detection and limiting to prevent inverter and motor damage.
• Overload Protection: I2t thermal overload monitoring for motor winding protection.
• Short-Circuit Protection: Fast-acting response to phase-to-phase or phase-to-ground faults.
• Overvoltage/Undervoltage Protection: Monitors DC link voltage and stabilizes power supply conditions.
• Overtemperature Protection: Monitors heat sink and motor temperatures with automatic shutdown.
• Safety Torque Off (STO): Built-in safe stop function conforming to EN ISO 13849-1, PLd.
• Earth Fault Detection: Sensitive ground fault monitoring for enhanced system safety.

Real-Time Diagnostics & Monitoring

• Continuous System Supervision: Ongoing monitoring of voltage, current, temperature, and I/O status.
• Comprehensive Fault Logging: Non-volatile storage of fault codes, timestamps, and operational data.
• Real-Time Status Indicators: LED diagnostics for power, operation, communication, and fault conditions.
• Pre-Alarm Functions: Early warning of abnormal conditions before system shutdown.
• Self-Diagnostic Routine: Power-on self-test and continuous internal circuit verification.
• Remote Troubleshooting: Access to diagnostic data via communication ports for remote maintenance.

Industrial-Grade Reliability

• Extended Temperature Range: Stable operation in extreme industrial temperature environments.
• High EMC Performance: Complies with IEC 61000-6-2/4 standards for electromagnetic compatibility.
• Anti-Vibration Design: Rugged PCB construction and secure component mounting.
• Long-Life Components: Industrial-grade electronics for extended service life and minimal maintenance.
• Voltage Surge Protection: Varistor and transient voltage suppression for power line disturbances.
• Humidity & Dust Resistance: Conformal coating protects against harsh environmental conditions.

User-Friendly Configuration & Integration

• Intuitive Parameter Structure: Organized parameter groups for simplified programming.
• PC Tool Compatibility: Full integration with ABB DriveStudio software for configuration and monitoring.
• Plug-and-Play Installation: Direct replacement and compatibility with ACS880 inverter series.
• Firmware Upgradability: In-field firmware updates for feature enhancements and performance improvements.
• Multi-Language Support: User interface and documentation in multiple industrial languages.
• Modular Design: Flexible configuration to adapt to diverse application requirements.

Application Scenarios

ABB ACS880 Inverter Systems

• Single-Drive ACS880 Inverters: Core control for standard industrial drive applications.
• Multi-Drive ACS880 Systems: Central coordination for common DC bus multi-motor configurations.
• High-Power ACS880 Drives: Control for industrial drives up to 500 kW and higher.
• ACS880 Cabinet Modules: Integrated control for wall-mounted and cabinet-mounted drive solutions.
• Custom Drive Solutions: Tailored control for specialized industrial drive applications.

Manufacturing & Production Lines

• Packaging Machinery: Precision speed control for filling, wrapping, and labeling machines.
• Material Handling Systems: Conveyor belts, elevators, and automated storage systems.
• Textile Machinery: Spinning, weaving, and dyeing equipment with constant tension control.
• Plastic Processing: Extruders, injection molding machines, and film blowing equipment.
• Printing & Paper Machines: Web tension control and registration systems.
• Food & Beverage Processing: Mixers, pumps, and processing line speed regulation.

Metal & Mining Industry

• Metal Rolling Mills: Main drive control for hot and cold rolling applications.
• Crushers & Mills: Heavy-duty motor control for mineral processing.
• Conveyor Systems: Long-distance material transport with high starting torque.
• Wire & Cable Machines: Precision tension control for drawing and extrusion lines.
• Foundry Equipment: Mixers, conveyors, and material handling automation.

Water & Wastewater Treatment

• Pump Systems: Constant pressure control for water supply networks.
• Fan Systems: Flow control for aeration and ventilation processes.
• Compressors: Efficient speed control for compressed air generation.
• Wastewater Treatment: Aerobic and anaerobic process control systems.
• Desalination Plants: High-pressure pump control for reverse osmosis systems.

Power Generation & Energy

• Wind Turbines: Pitch control systems and generator converters.
• Solar Power Systems: Grid-tie inverter control and maximum power point tracking.
• Power Plants: Boiler feed pumps, fans, and auxiliary system drives.
• Energy Storage Systems: Battery charging/discharging control converters.
• Substation Equipment: Voltage regulation and power quality systems.

Marine & Offshore Applications

• Ship Propulsion Systems: Azimuth thruster and main propulsion drive control.
• Dynamic Positioning: Precision speed control for station-keeping systems.
• Offshore Cranes & Winches: Heavy-lift equipment with load-dependent speed regulation.
• Marine Auxiliaries: Pumps, fans, and thruster control systems.
• Underwater Equipment: ROV and subsea automation drive control.

Oil & Gas Industry

• Pumping Stations: Pipeline transport and injection systems.
• Compressors: Gas processing and transmission equipment.
• Refinery Processes: Fluid catalytic cracking and distillation control.
• Offshore Platforms: Drilling and production automation systems.
• LNG Facilities: Liquefaction and regasification process drives.

HVAC & Building Automation

• Commercial HVAC Systems: Energy-efficient fan and pump control.
• Air Handling Units: Variable air volume control systems.
• Chilled Water Systems: Pump speed control for climate control.
• Commercial Refrigeration: Compressor and condenser fan control.
• Building Management Systems: Integration with central automation networks.

General Industrial Automation

• Machine Tools: Spindle and feed axis control for CNC machines.
• Robotics: Auxiliary axis control for industrial robot systems.
• Test Equipment: Dynamometer and environmental chamber control.
• Woodworking Machinery: Sawing, routing, and finishing equipment.
• Automotive Assembly: Paint shop, body shop, and assembly line drives.
