Product Short Description
Product Name: ABB Robot Controller Main Control Board
Product Introduction:

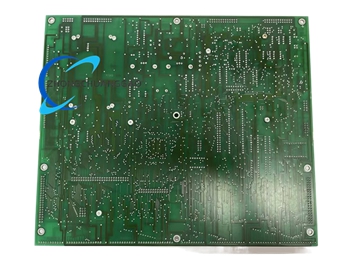

YT204001-KA5 is a core printed circuit control board for ABB industrial robot controller, responsible for motion logic processing, signal coordination and internal data communication of robot system.
Description
Receives position command from teach pendant, processes robot kinematics algorithm, outputs servo drive commands, collects feedback signals from each robot axis, and realizes closed-loop motion control.
Technical Specifications:
- Operating Voltage: 24 V DC
- Operating Temperature: -10 ℃ ~ +55 ℃
- Storage Temperature: -20 ℃ ~ +70 ℃
- Protection Class: IP20 (installed inside robot cabinet)
- Communication Interfaces: RS485, internal parallel bus
Function Features:
- Robot multi-axis kinematics calculation
- Servo signal coordination and fault monitoring
- Internal system data exchange with power board and I/O board
- Built-in hardware watchdog for fault reset
Material & Structure:
- Multi-layer printed circuit board; gold-plated edge connectors
- Surface mount industrial grade electronic components
Application Scenarios:
ABB series industrial robot control cabinet, automated production line robotic handling, welding, assembly stations.
Installation Requirements:
Install inside sealed robot electrical cabinet; Ensure good cabinet cooling; Fix board firmly to avoid vibration loosening connectors.
Usage Notes:
Prevent electrostatic discharge before touching circuit board; Cut off power supply during disassembly; Avoid liquid and dust contamination on PCB surface.
