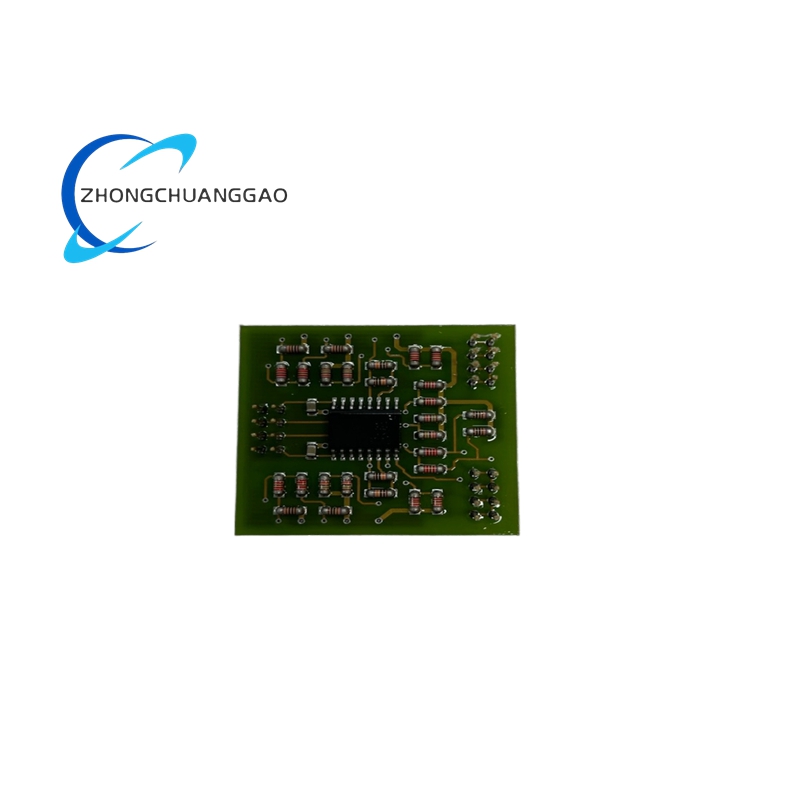

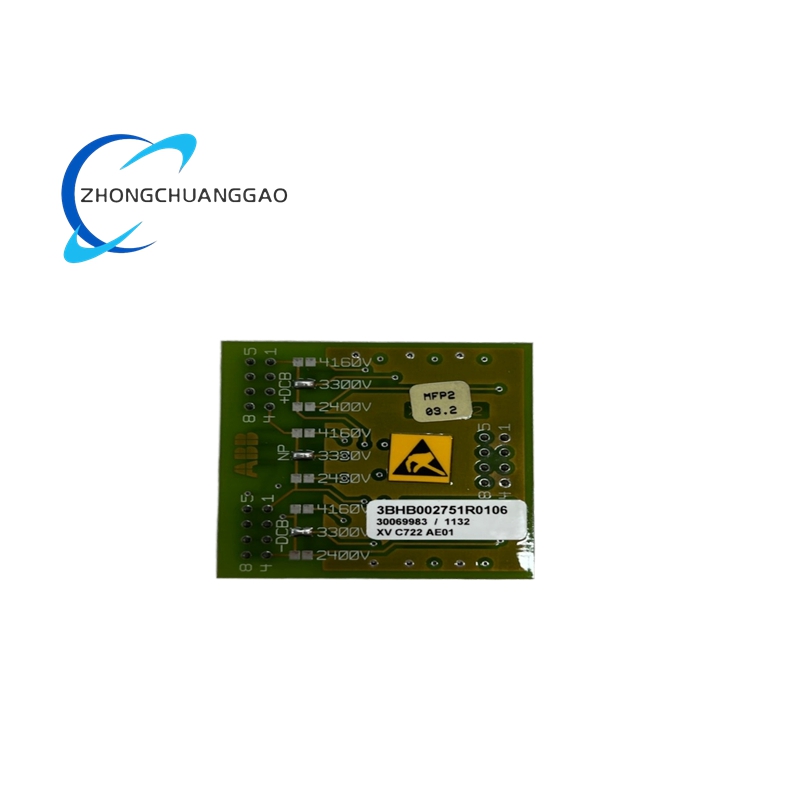

ABB XVC722AE01 3BHB002751R0106 Rectifier Supervision Board (SVA)

Description

Technical Specifications

• Product Type: Rectifier Supervision & Control Board (SVA)
• Compatible Systems: ABB ACS1000, ACS6000 Medium Voltage Drives
• Monitoring Functions: Rectifier Voltage, Current, Temperature
• Control Outputs: Cooling Fan Control, Rectifier Trigger Signals
• Input Voltage: 24 V DC (ModuleBus Powered)
• Power Consumption: ≤ 5 W
• Isolation Voltage: 4.0 kV AC (Field-Side / System-Side)
• Operating Temperature: -25 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–95% RH (Non-Condensing)
• Vibration Resistance: 15 g (10–2000 Hz, IEC 60068-2-6)
• Shock Resistance: 40 g (11 ms, IEC 60068-2-27)
• Dimensions: 180 mm × 160 mm × 25 mm (W × H × D)
• Weight: Approx. 0.4 kg
• Mounting: PCB Screw Mounting Inside Drive Cabinet
• Certifications: CE, UL, RoHS, ATEX Category 2
• Country of Origin: Switzerland

Functional Features

Comprehensive Parameter Monitoring

• Multi-Parameter Supervision: Real-time monitoring of rectifier input/output voltage, DC link current, and semiconductor junction temperature.
• High-Speed Sampling: Precision analog-to-digital conversion with microsecond-level sampling rate for accurate parameter tracking.
• Over/Under Voltage Detection: Configurable threshold monitoring for overvoltage and undervoltage conditions.
• Overcurrent Protection: Instantaneous overcurrent detection and response to prevent rectifier damage.
• Temperature Tracking: Continuous monitoring of heat sink and semiconductor temperatures for thermal management.

Active Cooling & Thermal Management

• Variable Speed Fan Control: Automatic adjustment of cooling fan speed based on real-time temperature measurements.
• Thermal Regulation: Maintains optimal operating temperature to maximize component lifespan and efficiency.
• Over-Temperature Protection: Triggers immediate protective actions at critical temperature thresholds.
• Fan Status Monitoring: Detects fan failure, stall conditions, and performance degradation.
• Heat Management Algorithms: Advanced control logic for efficient thermal distribution across rectifier components.

Advanced Fault Diagnosis & Protection

• Multi-Level Fault Detection: Identifies short circuits, open circuits, overvoltage, overcurrent, and overtemperature conditions.
• Instantaneous Response: Sub-millisecond fault reaction time to prevent component damage.
• Comprehensive Alarm System: Generates specific fault codes and signals for rapid troubleshooting.
• Safe Shutdown Sequences: Initiates controlled, safe shutdown procedures during critical faults.
• Event Logging: Stores fault history with timestamps for diagnostic analysis and maintenance.

Reliable Communication & Control

• High-Speed Drive Bus Interface: Direct communication with the main drive controller via internal ModuleBus.
• Real-Time Data Transmission: Transfers monitored parameters and status signals to the control system.
• Control Signal Output: Generates precise trigger and control signals for rectifier semiconductors.
• Synchronization Capability: Maintains precise synchronization with other drive control modules.
• Diagnostic Data Interface: Provides detailed operational data for system analysis and condition monitoring.

Industrial-Grade Reliability

• High-Voltage Isolation: 4.0 kV galvanic isolation protects control circuits from high-power side transients.
• Extended Temperature Range: Operates stably in extreme industrial temperature environments.
• Superior EMC Performance: Complies with strict IEC 61326-1 standards for electromagnetic immunity.
• Robust PCB Design: Multi-layer, high-tracking PCB with heavy copper for high-current paths.
• Long Service Life: Industrial-grade components ensure continuous operation with minimal maintenance.

Compact & Integrated Design

• Space-Saving Form Factor: Optimized dimensions for installation in limited drive cabinet space.
• Plug-and-Play Integration: Direct replacement and compatibility with existing ACS1000/ACS6000 drives.
• Pre-Configured Parameters: Factory-calibrated settings for immediate deployment.
• Status Indication: On-board LED indicators for power, operation, and fault status.
• Easy Maintenance: Accessible design simplifies inspection, testing, and replacement procedures.

Application Scenarios

1. ABB ACS1000 Medium Voltage Drives
   • Metallurgical industry rolling mill drives
   • Mining industry conveyor and crusher systems
   • Cement manufacturing kiln and mill drives
   • Water treatment plant pump and fan systems
   • Power plant auxiliary equipment drives
2. ABB ACS6000 Medium Voltage Drives
   • Marine propulsion systems
   • Offshore oil and gas pumping systems
   • Steel manufacturing process drives
   • Paper and pulp production lines
   • Large-scale HVAC systems
3. Power Generation & Distribution
   • Gas and steam turbine starter drives
   • Wind turbine pitch control systems
   • Pumped storage power station equipment
   • Substation auxiliary power systems
   • Grid frequency regulation drives
4. Oil & Gas Industry
   • Pipeline compressor drives
   • Offshore platform pumping systems
   • Refinery process pump drives
   • Natural gas liquefaction facilities
   • Wellhead injection systems
5. Metals & Mining Operations
   • Iron and steel rolling mill drives
   • Mine hoist and winding systems
   • Ore crushing and grinding equipment
   • Continuous casting machine drives
   • Metal processing line control
6. Water & Wastewater Management
   • Large-scale water pump drives
   • Wastewater treatment aeration systems
   • Desalination plant high-pressure pumps
   • Water distribution network control
   • Flood control pumping stations
7. Marine & Offshore Applications
   • Ship main propulsion drives
   • Dynamic positioning systems
   • Offshore crane and winch control
   • Marine auxiliary systems
   • Subsea pumping systems
8. Industrial Manufacturing
   • Large fan and compressor systems
   • Extrusion and molding equipment
   • Paper machine drive systems
   • Textile manufacturing machinery
   • Large conveyor systems
