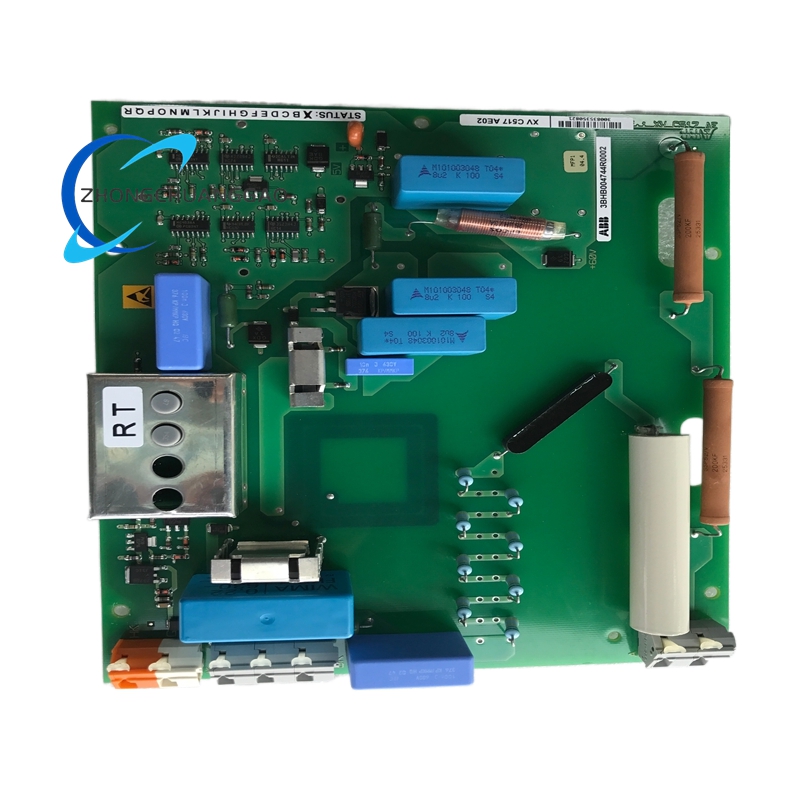

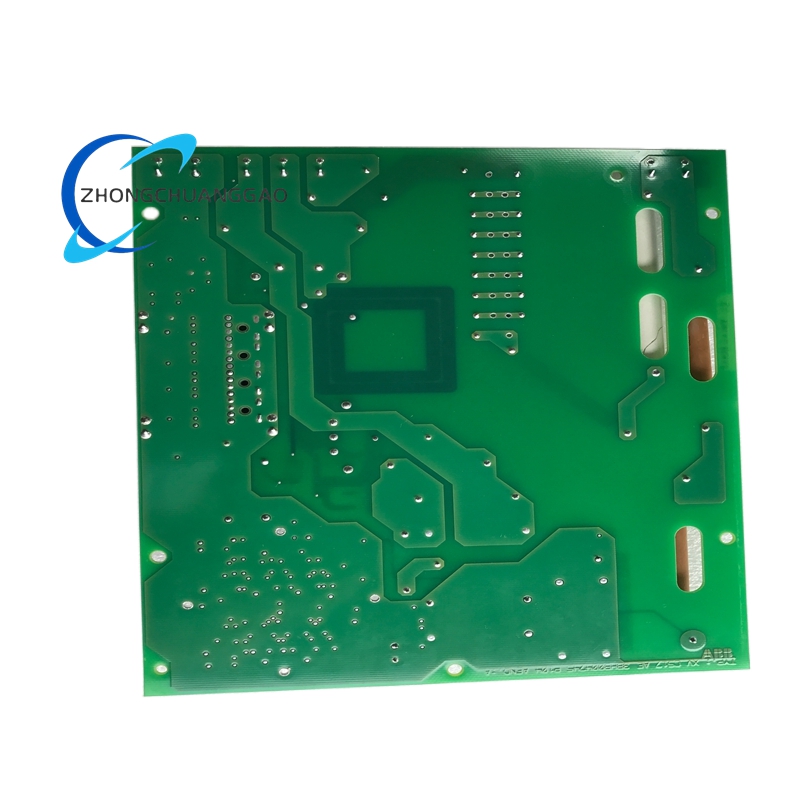

ABB XVC517AE02 3BHB004744R0002 Gate Driver Control Module

Description

Technical Specifications

Functional Features

1. Precision Gate Drive Control

• High-Power Signal Amplification: Delivers amplified gate control signals to reliably trigger high-power IGCT/IGBT semiconductor devices.
• Precise Timing Control: Microsecond-level accurate switching timing for optimal power conversion efficiency.
• Voltage Regulation: Maintains stable gate drive voltage levels across varying load conditions.
• Active Gate Control: Dynamic adjustment of gate current to optimize switching performance and reduce power losses.
• Parallel Device Support: Synchronized control signals for multiple parallel power semiconductors.

2. Comprehensive Fault Protection

• Overcurrent Protection: Instantaneous detection and shutdown on excessive current conditions.
• Overvoltage Protection: Monitors and limits gate voltage to prevent semiconductor damage.
• Undervoltage Lockout: Prevents operation when supply voltage falls below safe thresholds.
• Overtemperature Protection: Integrated temperature sensing with automatic thermal shutdown.
• Short-Circuit Protection: Rapid response to power circuit short circuits (less than 5 microseconds).
• Gate Failure Detection: Continuous monitoring of gate circuit integrity and open/short conditions.

3. Advanced Signal Isolation

• High-Voltage Galvanic Isolation: 4000 V AC isolation between low-voltage control and high-voltage power circuits.
• Optical Isolation: Light-based signal transmission to eliminate electrical interference.
• Ground Loop Elimination: Complete electrical separation to prevent ground potential differences.
• Surge Suppression: Multi-stage protection against voltage transients and lightning strikes.
• Noise Immunity: High common-mode noise rejection for stable operation in EMI environments.

4. Real-Time Monitoring & Diagnostics

• Status Indication: Multi-color LED indicators for power, operation, and fault status.
• Continuous Self-Diagnosis: Real-time monitoring of internal circuits and external connections.
• Fault Recording: Stores up to 200 fault events with timestamps for troubleshooting.
• Remote Monitoring: Transmits status and diagnostic data to upper-level control systems.
• Parameter Feedback: Provides real-time gate voltage, current, and temperature feedback.

5. Reliability & Durability

• Industrial-Grade Construction: High-quality components for extended service life.
• Vibration Resistance: Withstands industrial vibration up to 5g (IEC 60068-2-6).
• Shock Resistance: Designed to endure 15g shock acceleration without performance loss.
• Conformal Coating: Full circuit board protection against dust, moisture, and chemicals.
• Wide Temperature Range: Stable operation across extreme industrial temperature conditions.

6. Communication & Integration

• Status Communication: Transmits operational status via digital output signals.
• Fault Notification: Immediate fault signaling to system controller for rapid response.
• System Synchronization: Precise synchronization with other drive system modules.
• Hot-Swappable Design: Supports module replacement without complete system shutdown.
• Backward Compatibility: Compatible with legacy ACS1000/ACS6000 drive systems.

7. Easy Installation & Maintenance

• Plug-and-Play Design: Pre-configured parameters for straightforward installation.
• Front-Access Terminals: Convenient terminal connections for field wiring.
• Removable Connectors: Quick-disconnect connectors for simplified maintenance.
• Calibration-Free Operation: Factory-calibrated with no field adjustments required.
• Firmware Upgradable: Supports in-system firmware updates for performance enhancements.

Application Scenarios

1. Power Generation Industry

• Thermal Power Plants: Medium-voltage drives for boiler feed pumps, fans, and mills.
• Hydropower Plants: Control systems for turbine governors and excitation systems.
• Wind Turbines: Generator control and power conversion systems.
• Biomass Power Plants: Drives for waste heat recovery and material handling systems.
• Combined Cycle Plants: Gas and steam turbine auxiliary system controls.

2. Oil & Gas Industry

• Oil Refineries: Medium-voltage drives for compressors, pumps, and extruders.
• Offshore Platforms: Submersible pump and compressor control systems.
• LNG Facilities: Cryogenic process drives and gas handling systems.
• Pipelines: Long-distance pipeline compressor station controls.
• Petrochemical Plants: Polymerization reactor and fluid catalytic cracking drives.

3. Metallurgical Industry

• Steel Mills: Rolling mill drives, furnace fans, and continuous casting systems.
• Aluminum Smelters: Potline auxiliary drives and fume treatment systems.
• Cement Plants: Kiln, raw mill, and finish mill drive controls.
• Metal Rolling Mills: High-performance speed control for metal forming processes.
• Mineral Processing: Grinding mills, flotation cells, and material handling drives.

4. Water & Wastewater Treatment

• Municipal Water Systems: Large-scale pump and aeration system controls.
• Wastewater Facilities: Sludge treatment and chemical dosing drives.
• Desalination Plants: High-pressure reverse osmosis pump controls.
• Industrial Water Treatment: Boiler feed and cooling tower pump systems.

5. Marine & Offshore Applications

• Ship Propulsion: Medium-voltage drives for marine propulsion systems.
• Dynamic Positioning: Thruster control systems for offshore vessels.
• FPSO Vessels: Process and utility drive controls.
• Offshore Rigs: Drilling system and mud pump controls.

6. Mining & Mineral Processing

• Coal Mining: Longwall shearers, conveyors, and hoist systems.
• Ore Processing: SAG mills, ball mills, and leachate processing drives.
• Mineral Separation: Magnetic separator and flotation cell controls.
• Mine Ventilation: Large fan control systems for underground mines.

7. Paper & Pulp Industry

• Pulp Mills: Digester, recovery boiler, and chemical recovery drives.
• Paper Machines: Dryer sections, calenders, and coating system controls.
• Lignin Processing: Biomass drying and energy recovery systems.
• Paper Recycling: Pulping, screening, and cleaning process drives.

8. General Manufacturing

• Large Motor Control: High-power industrial motor speed regulation.
• Test Benches: Dynamometer and load test system controls.
• Material Handling: Crane, hoist, and conveyor systems.
• Industrial Furnaces: Fan and pump controls for high-temperature processes.
