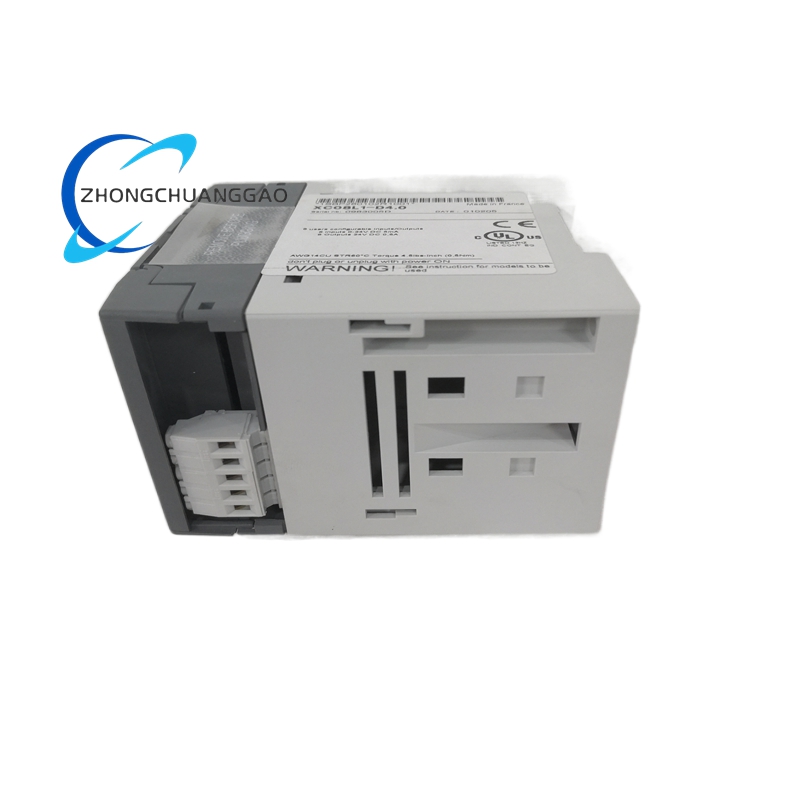

ABB XC08L1 1SBP260102R1001 Digital I/O Extension Module

Description

Technical Specifications

• Product Type: Digital Input/Output Extension Module
• Compatible Systems: ABB Advant Controller 31, ABB PLC Series, ABB ACS Inverter Drives
• Digital Input Channels: 8 Channels, 0–24 V DC, 5 mA Input Current
• Digital Output Channels: 8 Channels, 24 V DC, 0.5 A Output Current
• I/O Configuration: User-configurable Input/Output Channels
• Power Supply: 24 V DC ±20%
• Isolation: Galvanic Channel-to-Bus Isolation (1.5 kV)
• Communication Interface: Internal I/O Bus (System Backplane Connection)
• Operating Temperature: -25 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5–95% RH (Non-Condensing)
• Vibration Resistance: 10 g (10–150 Hz)
• Shock Resistance: 30 g (11 ms Duration)
• Protection Rating: IP20 (Enclosed Control Cabinet Installation)
• Physical Dimensions: 120 mm × 80 mm × 30 mm (W × H × D)
• Weight: Approx. 0.18–0.20 kg
• Mounting: DIN-Rail Mounting (Standard 35 mm)
• Wire Connection: Screw Terminals, AWG 14 Copper Stranded Wire
• Torque Specification: 0.5 Nm (4.5 lbs-inch) Terminal Torque
• Certifications: CE, UL, RoHS, IEC 61131-2
• Country of Origin: France

Functional Features

Flexible I/O Configuration

• Configurable Channels: 8 input and 8 output channels with user-definable signal settings to match diverse application requirements.
• Universal Signal Compatibility: Accepts standard 24 V DC digital signals from industrial sensors, switches, and proximity detectors.
• Independent Channel Operation: Each I/O channel operates independently with no cross-channel interference.
• Output Driving Capacity: Each output channel supports up to 0.5 A load current, capable of direct driving of relays, solenoids, and indicator lights.
• Quick Wiring Setup: Screw terminal connections enable secure and rapid field wiring with standardized torque specifications.

Industrial Reliability & Durability

• Extended Temperature Range: Operates flawlessly in extreme industrial environments from -25 °C to +70 °C.
• High Vibration/Shock Resistance: Rugged construction withstands heavy industrial vibration and mechanical shock loads.
• Electrical Isolation: 1.5 kV galvanic isolation protects against ground loops, electrical noise, and module damage from transient voltages.
• Overload Protection: Built-in overcurrent and short-circuit protection on all output channels prevents component damage.
• Long-Term Stability: High-quality components ensure consistent performance with minimal signal drift over extended service life.

Compact Design & Easy Integration

• Space-Saving Form Factor: Compact dimensions optimize cabinet space utilization for high-density I/O installations.
• DIN-Rail Mounting: Standard 35 mm DIN-rail mounting enables quick, tool-less installation and module positioning.
• Plug-and-Play Compatibility: Direct integration with ABB control systems without additional interface components.
• Status Indication: Integrated LED indicators for power status, input signal detection, and output activation.
• Hot-Swappable Support: Allows module replacement under system power conditions to minimize downtime.

Enhanced System Performance

• High-Speed Signal Processing: Rapid input signal sampling and output response for real-time control applications.
• Low Power Consumption: Energy-efficient design minimizes power dissipation and heat generation.
• Scalable Expansion: Supports multiple XC08L1 modules in a single system for unlimited I/O point expansion.
• Diagnostic Capabilities: Provides channel-level status monitoring and fault detection for simplified troubleshooting.
• Wide System Compatibility: Seamlessly integrates with ABB’s complete range of industrial automation controllers.

Application Scenarios

1. Manufacturing & Machinery Automation
   • Production line machine control and status monitoring
   • Conveyor system position and speed control
   • Packaging equipment sensor input and actuator control
   • Assembly line component detection and sorting control
   • Material handling equipment operation control
2. Industrial Drive Systems
   • ABB ACS inverter drive I/O expansion
   • Motor control center signal interfacing
   • Variable speed drive auxiliary control
   • Pump and fan motor status monitoring
   • Mechanical brake and clutch control
3. Process Control & Factory Automation
   • PLC-based distributed control system expansion
   • Digital signal acquisition from field instruments
   • Valve and solenoid control in process loops
   • Safety interlock and emergency stop systems
   • Production counter and speed monitoring
4. Building Automation & HVAC
   • HVAC equipment control interfaces
   • Building management system I/O extension
   • Lighting and ventilation control
   • Access control and security systems
   • Fire alarm system signal interfacing
5. Water & Wastewater Treatment
   • Pump station control and monitoring
   • Valve position feedback and control
   • Liquid level and flow switch monitoring
   • Treatment process sequence control
   • Filtration system operation control
6. Material Processing & Mining
   • Crushing and screening equipment control
   • Conveyor belt safety and monitoring systems
   • Mineral processing equipment interfacing
   • Bulk material handling control
   • Mine ventilation system control
7. Food & Beverage Industry
   • Hygienic processing equipment control
   • Filling and packaging machine automation
   • Clean-in-place (CIP) system control
   • Temperature and level switch monitoring
   • Production line safety interlocking
8. Marine & Offshore Applications
   • Shipboard machinery control systems
   • Offshore platform equipment monitoring
   • Marine auxiliary system control
   • Cargo handling and pumping control
   • Navigation aid equipment interfacing
