Product Short Description

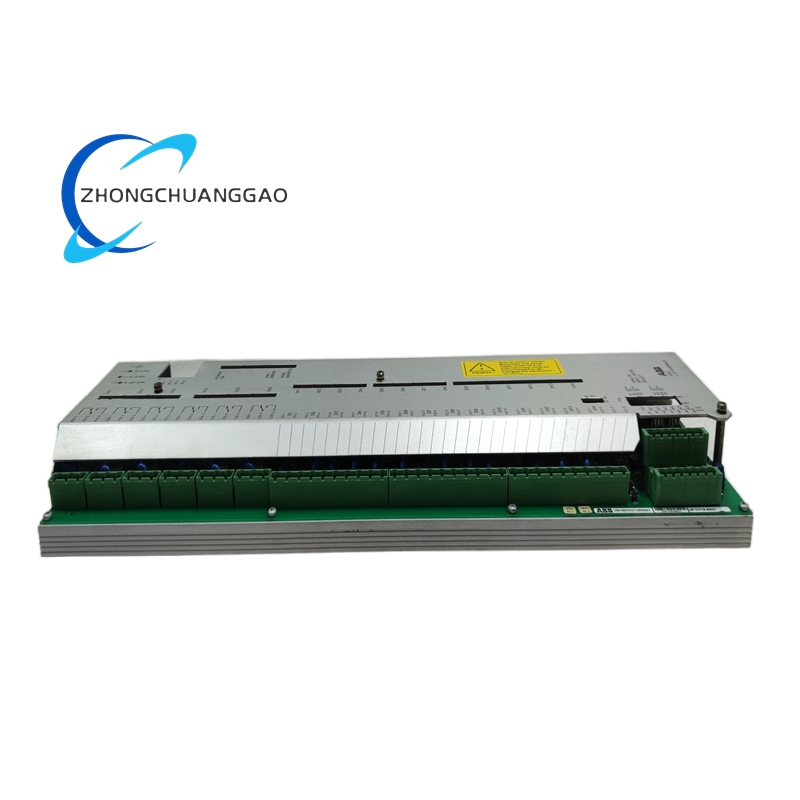

The ABB UFC719AE01 is a high-performance, industrial-grade I/O (Input/Output) controller interface module, engineered as a critical component for advanced automation and control systems. It functions as a robust bridge between field instrumentation (sensors, transmitters, actuators) and the main control unit (PLC/DCS), facilitating reliable, real-time signal acquisition, processing, and transmission. Designed for demanding industrial environments, this module integrates powerful processing capabilities, versatile signal handling, and multiple communication protocols, ensuring precise control, system stability, and seamless interoperability across diverse industrial applications.
Description
Technical Specifications
- Product Type: IOEC (Input/Output Controller) Interface Module
- Processor: Dual-core ARM Cortex-R4, 1.2 GHz
- Memory: 2 MB Flash Memory, 1 MB RAM
- Power Supply: 24 V DC ±20% (Backplane Powered)
- Digital Input Channels: 8 Channels, 24 V DC (Sinking/Sourcing)
- Analog Input Channels: 4 Channels, Universal (4–20 mA, 0–10 V)
- Digital Output Channels: 8 Channels, Relay Output (5 A / 250 V AC)
- Communication Interfaces:
- 2 × RJ45 Ethernet Ports (100 Mbps)
- Serial Interfaces (RS-232, RS-485)
- Supported Protocols: IEC 61850, Modbus TCP, DNP3, Profibus DP
- Operating Temperature: -25 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5–95% RH (Non-Condensing)
- Isolation: Galvanic Channel-to-Bus Isolation
- Protection Rating: IP20 (For Indoor/Control Cabinet Installation)
- Mounting: Direct Chassis Slot Mounting / DIN Rail Compatible
- Dimensions: Approx. 185 mm × 65 mm × 55 mm (W × H × D)
- Weight: Approx. 0.45 kg
- Certifications: CE, UL, RoHS, IEC 61010-1, EMC Compliant (EN 61000-6-2/6-4)
- Country of Origin: Sweden
Functional Features
High-Speed Processing & Signal Precision
- Powerful Dual-Core Processor: Executes complex control algorithms and signal processing with millisecond-level response time, ensuring high-speed and accurate data handling.
- Universal Signal Compatibility: Accepts and processes both analog (4–20 mA, 0–10 V) and digital (24 V DC) signals, eliminating the need for separate modules.
- High-Resolution Conversion: Delivers precise measurement and control for critical process variables such as pressure, temperature, flow, and level.
- Independent Channel Isolation: Provides full galvanic isolation between all I/O channels and the system bus, preventing ground loops, signal crosstalk, and electrical interference.
Advanced Communication & Integration
- Multi-Protocol Network Support: Connects seamlessly to major industrial communication standards (IEC 61850, Modbus TCP, DNP3), ensuring compatibility with modern and legacy control systems.
- Dual Ethernet Ports: Supports redundant network connections and high-speed data exchange with HMIs, SCADA systems, and other controllers.
- Flexible Serial Communication: Integrates with a wide range of field devices via RS-232 and RS-485 interfaces.
- Plug-and-Play Integration: Designed for direct integration into ABB control systems (e.g., AC 800M, Advant OCS) with minimal configuration.
Industrial Robustness & Reliability
- Extended Temperature Range: Operates flawlessly in extreme environmental conditions from -25 °C to +70 °C.
- Vibration & Shock Resistance: Built to withstand high levels of mechanical vibration and shock common in industrial plants.
- Comprehensive Diagnostics: Features built-in self-testing, real-time channel monitoring, and fault reporting (overvoltage, short circuit, loss of signal) for predictive maintenance.
- Long-Term Stability: Utilizes high-grade industrial components to ensure consistent performance and minimal drift over extended operational lifecycles.
Flexible Design & Ease of Maintenance
- Modular & Compact Design: Space-efficient form factor optimizes control cabinet space and allows for easy installation.
- Hot-Swappable Capability: Supports replacement under power (in compatible systems) to reduce system downtime during maintenance.
- User-Friendly Wiring: Equipped with industrial-grade terminal blocks for secure and quick field wiring.
- Status Indication: Clear LED indicators for power, communication status, and channel-specific faults for quick visual diagnostics.
Application Scenarios
The ABB UFC719AE01 module is deployed across critical industries requiring reliable I/O management and precise control:
- Power Generation & Transmission
- Substation automation and protection control
- Smart grid monitoring and control systems
- Power plant boiler/turbine auxiliary systems
- Renewable energy (wind, solar) farm data acquisition
- Oil & Gas Industry
- Refinery process control (distillation, cracking)
- Emergency Shutdown Systems (ESD)
- Pipeline pressure and flow monitoring
- Offshore platform instrumentation and control
- Chemical & Petrochemical Processing
- Continuous process manufacturing lines
- Hazardous area monitoring and control
- Batch reaction control (pH, temperature, pressure)
- Material handling and storage systems
- Metals & Mining
- Smelting furnace control systems
- Conveyor belt and hoist motor control
- Mineral processing plant automation
- Mill drive and vibration monitoring
- Water & Wastewater Treatment
- Pump station flow and pressure regulation
- Water distribution network telemetry
- Desalination plant process control
- Sewage treatment aeration systems
- Rail Transportation
- Traction power supply control
- Signal and communication systems
- Station automation and platform safety systems
- Regenerative braking energy management
- Manufacturing & Automotive
- Automated assembly line control
- Robot I/O interfacing
- Packaging machinery control
- Quality inspection data acquisition
- Marine & Offshore
- Ship propulsion and thruster control
- Onboard power management systems
- Dynamic positioning control
- Cargo handling and monitoring systems
