Product Short Description

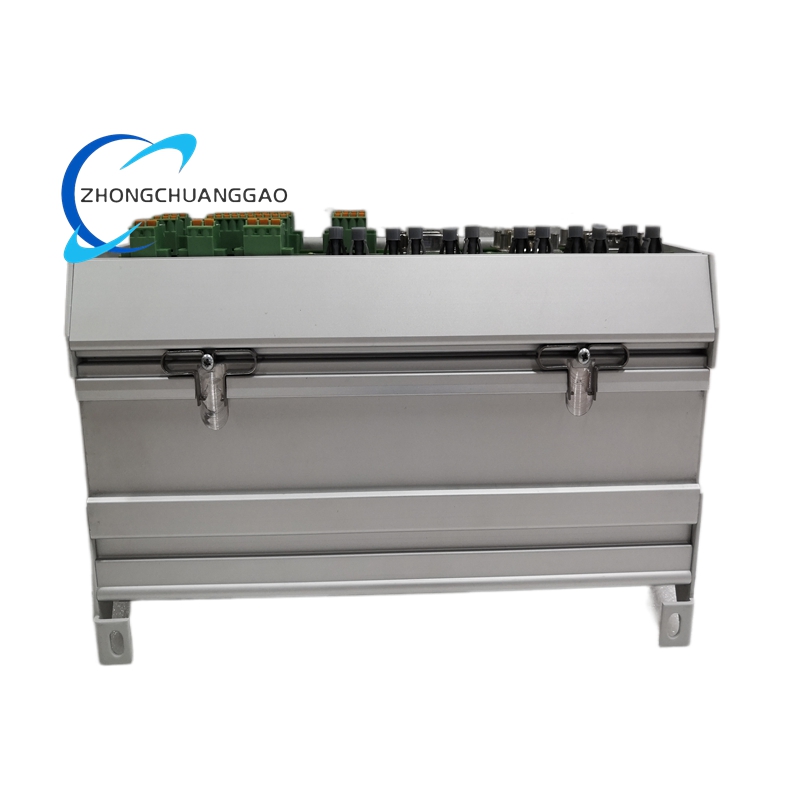

The ABB UAD149A0011 is a high-performance, multi-functional combined I/O and motion control module engineered as a core component for the ABB AC 800PEC and AC 800M control systems, as well as the System 800xA DCS platform. It is purpose-built for demanding applications requiring ultra-precise control, specifically generator excitation systems (AVR) and high-performance servo/motion control. This module integrates high-speed analog and digital I/O, advanced closed-loop control algorithms, encoder interfacing, and multi-protocol communication into a compact, rugged industrial package.
Description
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Combined I/O & Motion/Excitation Control Module |
| Compatible Platforms | ABB AC 800PEC, AC 800M, System 800xA DCS |
| Supply Voltage | 24 V DC (5A input) |
| Power Consumption | Max. 5 W (nominal 2 W) |
| Analog Inputs (AI) | 8 channels, -10 V to +10 V / 0–20 mA |
| Analog Outputs (AO) | 8 channels, 0–10 V / 0–20 mA |
| Digital I/O (DIO) | 16 configurable channels (24 V DC) |
| Encoder Interface | 1Vss differential, up to 2048 lines / 200 kHz |
| Control Cycle Time | Position loop: 500 µs; Excitation closed-loop: <1 ms |
| Processor | 32-bit RISC CPU, 40 MHz clock speed |
| Memory | 256 KB RAM, 512 KB Flash memory |
| Communication Interfaces | SERCOS, Profibus DP, Modbus RTU, Ethernet |
| Isolation | Full galvanic isolation (500 V AC) between field and system |
| Operating Temperature | -25 °C to +70 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (W × H × D) | 275 mm × 148 mm × 100 mm |
| Weight | Approx. 1.68 kg |
| Mounting | Standard DIN-rail mounting, hot-swappable |
| Protection Rating | IP20 (front), IP67 (module body) |
| Certifications | CE, UL, cULus, ATEX Zone 2, IEC 61000 (EMC), RoHS |
Functional Features
1. High-Speed Closed-Loop Control
- Microsecond Response: Executes precision closed-loop control with a position cycle time of 500 microseconds and excitation regulation in under 1 millisecond.
- Dual Control Modes: Optimized for both Automatic Voltage Regulator (AVR) functions in generators and high-dynamics servo positioning in motion systems.
- Advanced Algorithms: Integrates proprietary PID, fuzzy logic, and adaptive control algorithms for optimal stability and response.
- Direct Excitation Drive: Capable of directly controlling excitation power converters to form a complete, standalone AVR system.
2. Versatile Multi-Channel I/O
- Combi I/O Configuration: Features 8 analog inputs, 8 analog outputs, and 16 digital I/O points in a single module.
- High-Resolution Signaling: Handles high-precision analog signals (-10 V to +10 V, 4–20 mA) for accurate process measurement.
- Encoder Compatibility: Direct connection for high-performance incremental encoders (1Vss) for precise position and speed feedback.
- Galvanic Isolation: Complete electrical isolation between all field circuits and the control backplane, eliminating ground loops and noise.
3. Robust Industrial Communication
- Multi-Protocol Support: Seamlessly integrates with SERCOS, Profibus DP, Modbus RTU, and Ethernet for flexible system connectivity.
- High-Speed Fieldbus: SERCOS interface for real-time communication with drives and motion components.
- Redundant Paths: Supports redundant communication links to ensure uninterrupted data flow in critical applications.
- Remote I/O Capability: Operates as a distributed remote I/O slave connected to the AC 800PEC/AC 800M main controller.
4. Extreme Environmental Durability
- Wide Temperature Range: Operates reliably from -25 °C to +70 °C, suitable for extreme industrial environments.
- High Vibration Resistance: Rugged construction designed to withstand high levels of industrial vibration and mechanical shock.
- Superior EMC Performance: Complies with strict IEC 61000 standards for electromagnetic compatibility in electrically noisy environments.
- Long-Term Reliability: High-quality components deliver exceptional MTBF (Mean Time Between Failures) for minimal maintenance.
5. Flexible Installation & Maintenance
- Hot-Swappable Design: Allows module replacement under power without system shutdown, reducing downtime.
- DIN-Rail Mount: Standard industrial mounting for quick and secure installation in control cabinets.
- Comprehensive Diagnostics: Continuous self-monitoring of all I/O channels, communication, and internal functions.
- LED Status Indicators: On-board visual indicators for power, communication status, I/O activity, and fault diagnostics.
- Software Configuration: Full parameterization via ABB Control Builder M software, supporting IEC 61131-3 programming standards.
6. Scalable & Integrated Architecture
- System Expansion: Supports multi-module configurations for large-scale I/O and motion control requirements.
- Legacy Compatibility: Fully interoperable with older ABB control systems and latest-generation 800xA platforms.
- Multi-Axis Coordination: Capable of managing multi-axis motion with synchronized movement and interpolation.
- Safety Integration: Interfaces with safety systems for emergency stop and safe speed monitoring functions.
Application Scenarios
1. Power Generation (Excitation Control)
- Thermal Power Plants: Core component of generator AVR systems for voltage regulation, reactive power control, and grid synchronization.
- Hydroelectric Power Stations: Precision excitation control for turbines and generators in renewable energy facilities.
- Nuclear Power Plants: Reliable voltage regulation for auxiliary power generation and critical systems.
- Gas Turbines & CHP Plants: High-speed excitation management for stable grid connection and load sharing.
2. Industrial Motion & Servo Control
- CNC Machine Tools: High-precision positioning control for milling, lathe, and grinding machines.
- Industrial Robots: Multi-axis motion control for articulated robots in assembly and material handling.
- Printing & Packaging Machinery: High-speed registration and tension control for web processing lines.
- Textile Manufacturing: Precision control for spinning, weaving, and fiber processing equipment.
3. Metals & Mining Industry
- Steel Rolling Mills: High-dynamics control for rolling stands and material positioning systems.
- Aluminum Smelters: Reliable control in high-electrical-noise potline environments.
- Mining Conveyors: Precision speed and torque control for heavy-duty material transport.
- Metal Processing: Accurate control for cutting, stamping, and forming machinery.
4. Oil & Gas Sector
- Offshore Platforms: Robust control for drilling equipment and subsea production systems.
- Refineries: Precision control for pumps, compressors, and process valve actuators.
- LNG Facilities: Stable operation in cryogenic processing and storage automation.
- Pipelines: Control for pump stations and flow regulation along distribution networks.
5. Marine & Offshore Applications
- Dynamic Positioning Systems: High-performance control for ship and rig positioning.
- Propulsion Drives: Precision control for electric propulsion systems on commercial vessels.
- Deck Machinery: Control for winches, cranes, and mooring systems.
- Naval Vessels: Shock-resistant control for military shipboard automation.
6. Water & Wastewater Treatment
- Pump Control Systems: Variable speed control for large water supply and distribution pumps.
- Aeration Systems: Precision air flow control in biological treatment processes.
- Desalination Plants: Reliable control for high-pressure reverse osmosis systems.
- Sludge Processing: Accurate control for dewatering and thermal treatment equipment.
7. Specialized Industrial Automation
- Semiconductor Manufacturing: Ultra-precise positioning for wafer handling and processing.
- Automotive Assembly: Multi-axis control for body-in-white and powertrain assembly lines.
- Test & Measurement: High-performance control for dynamometers and material test systems.
- Packaging & Filling: High-speed control for filling, capping, and labeling machines.
