Product Short Description

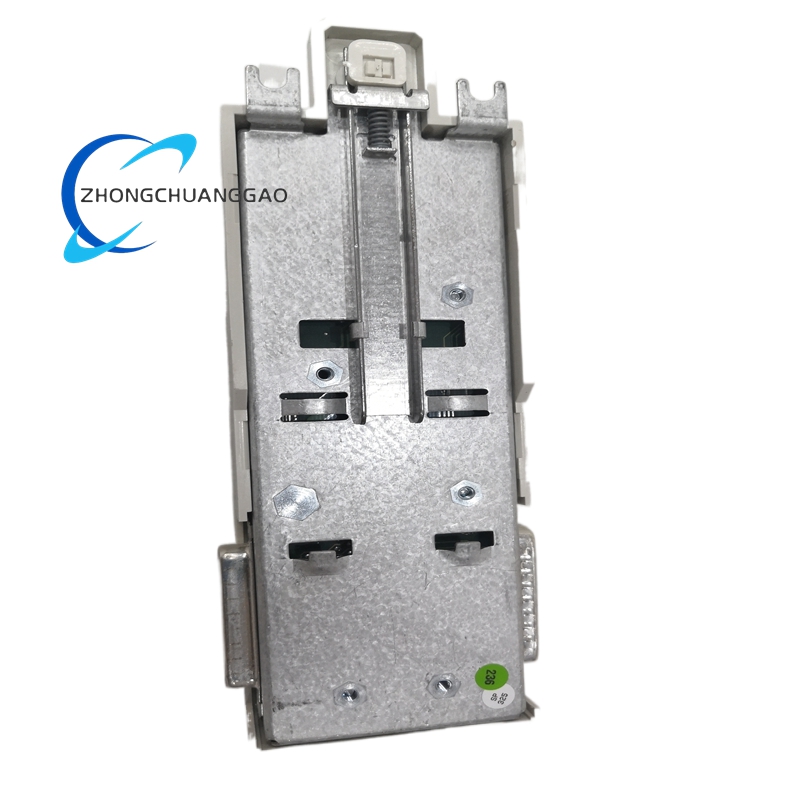

The ABB TP867 is a high-performance, passive industrial communication baseplate designed exclusively for ABB’s AC 800M controller and System 800xA distributed control systems (DCS). It functions as a critical mechanical and electrical foundation, providing secure physical mounting, stable power distribution, and high-speed signal connectivity for a range of ABB communication interface modules. As a core component in modular automation architectures, it facilitates seamless integration between the AC 800M controller and external industrial networks, ensuring reliable data exchange in demanding process environments.
Description
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Passive Communication Module Baseplate |
| Compatible Modules | CI867, CI868, CI871, CI873, CI874 communication interface modules |
| Mounting Method | DIN Rail Mounting (standard 35 mm DIN rail) |
| Material | High-strength, impact-resistant industrial plastic |
| Communication Bus | CEX Bus (backplane connection for module communication) |
| Ethernet Interfaces | 2 × RJ45 female ports, 10/100 Mbps data rate |
| Power Distribution | 24 V DC, rated current up to 5 A |
| Isolation | Galvanic isolation between power and signal paths |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Rating | IP20 (rear), IP66 (front face) |
| Dimensions | 112 mm (L) × 76 mm (W) × 32 mm (H) |
| Weight | Approximately 0.15–0.18 kg |
| Certifications | CE, UL, CSA, RoHS, IEC 61000-6-2/4 (EMC compliance) |
| Country of Origin | Sweden |
Functional Features
1. Passive, Maintenance-Free Operation
- Fully Passive Design: Requires no external power supply or active components to operate, eliminating points of failure and reducing maintenance demands.
- Zero Power Consumption: Operates without energy draw, minimizing system heat generation and energy costs.
- Long Service Life: Rugged construction with no moving parts ensures continuous operation over extended industrial lifecycles.
2. Robust Module Compatibility & Integration
- Wide Module Support: Provides dedicated mounting and connectivity for CI867, CI868, CI871, CI873, and CI874 communication modules.
- Seamless DCS Integration: Directly connects to AC 800M controllers and System 800xA via the CEX backplane bus.
- Protocol Flexibility: Supports industrial communication protocols including Modbus TCP, PROFIBUS DP-V1/V2, and Ethernet/IP.
- Redundancy Support: Enables redundant configuration of connected communication modules for uninterrupted network operation.
3. Industrial-Grade Durability
- Extreme Temperature Resistance: Operates reliably across a -40 °C to +85 °C range, suitable for harsh plant environments.
- High Protection Ratings: IP66 front face resists dust, moisture, and chemical splashes; IP20 rear safeguards internal connections.
- Vibration & Shock Resistance: Rugged plastic construction withstands industrial vibration (up to 2g, 10–500 Hz) and mechanical shocks.
- EMC Immunity: Complies with IEC 61000-6-2/4 standards, maintaining signal integrity in high-electromagnetic-interference environments.
4. Efficient Installation & Configuration
- DIN Rail Compatibility: Fast, tool-free mounting on standard 35 mm DIN rails for simplified cabinet installation.
- Compact Form Factor: Space-saving dimensions optimize control cabinet space for dense module configurations.
- Hot-Swap Support: Allows replacement of connected communication modules without system shutdown, minimizing downtime.
- Clear Diagnostic Indicators: Integrated LED status lights display power, communication, and module health for quick troubleshooting.
5. Reliable Power & Signal Management
- Stable Power Distribution: Delivers regulated 24 V DC power to connected modules with overcurrent and overvoltage protection.
- Galvanic Isolation: Provides electrical isolation between field devices and control systems, preventing ground loops and equipment damage.
- High-Speed Connectivity: Dual 10/100 Mbps Ethernet ports ensure fast, reliable data transmission between controllers and networks.
Application Scenarios
1. Oil & Gas Industry
- Offshore Platforms: Supports Modbus TCP communication for remote well monitoring, pipeline control, and safety systems in corrosive marine environments.
- Refineries & Petrochemical Plants: Connects AC 800M controllers to distributed I/O and safety instrumented systems (SIS) for reactor, distillation, and storage tank automation.
- LNG Facilities: Enables reliable Ethernet/IP communication for cryogenic process control and terminal operations.
2. Power Generation & Transmission
- Thermal & Hydro Power Plants: Integrates with turbine control, boiler management, and substation automation systems using PROFIBUS DP protocols.
- Renewable Energy Farms: Supports communication for wind turbine converters, solar inverter arrays, and grid-tie control systems.
- Smart Grid Substations: Provides noise-immune connectivity for protection relays, SCADA systems, and demand-response management.
3. Chemical & Pharmaceutical Manufacturing
- Chemical Processing Plants: Facilitates real-time control of batch reactors, mixing systems, and material handling in explosive and high-temperature zones.
- Pharmaceutical Production: Ensures sterile, reliable communication for GMP-compliant manufacturing lines, cleanroom automation, and quality control systems.
- Specialty Chemical Facilities: Supports modular expansion for multi-product production lines with frequent configuration changes.
4. Water & Wastewater Management
- Municipal Water Treatment: Connects pump stations, filter systems, and UV disinfection equipment across geographically dispersed sites.
- Industrial Wastewater Plants: Operates reliably in corrosive environments for pH adjustment, sludge dewatering, and effluent monitoring systems.
- Desalination Plants: Provides stable communication for reverse osmosis (RO) and membrane filtration control systems.
5. Metals & Mining
- Steel Mills & Smelters: Supports high-temperature operation for rolling mill control, furnace automation, and material transport systems.
- Mining Operations: Enables underground and surface communication for ore crushing, grinding, and conveyor belt control.
- Aluminum Production: Integrates with potline control and casting process systems in high-electrical-noise environments.
6. Marine & Offshore Vessels
- Shipboard Automation: Connects engine control, dynamic positioning, and cargo management systems on commercial vessels and offshore rigs.
- Naval Vessels: Provides shock-resistant, EMI-immune communication for propulsion, navigation, and weapons systems.
- Offshore Support Vessels: Supports modular communication for anchor handling, supply, and subsea operations.
7. Food & Beverage Production
- Processing Facilities: Ensures hygienic, washdown-resistant operation for mixing, cooking, and packaging lines.
- Breweries & Distilleries: Facilitates precise temperature and pressure control for fermentation, filtration, and bottling systems.
- Dairy Plants: Integrates with pasteurization, separation, and packaging automation in strict sanitary environments.
