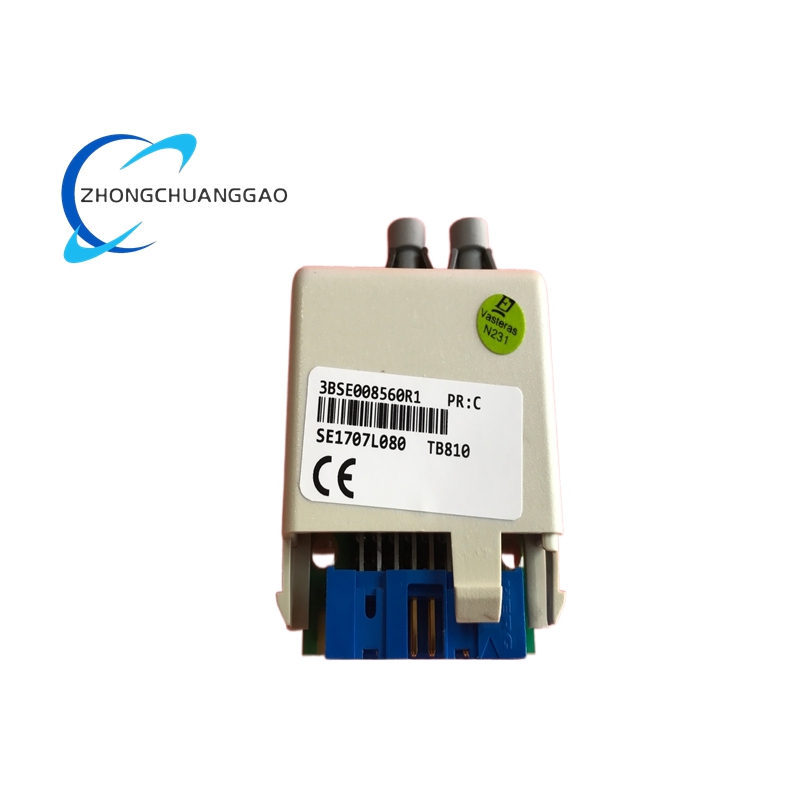

ABB TB810 Modulebus Optical Port Module

Description

Technical Specifications

• Product Type: Modulebus Optical Port Communication Module
• Compatible Systems: ABB S800 I/O System, ABB 800xA DCS
• Partner Modules: Works with CI810, CI820, CI830 communication interface modules
• Communication Protocol: Modulebus (proprietary ABB I/O bus protocol)
• Data Transfer Rate: 10000 kbit/s (10 Mbps)
• Fiber Type Support: POF (Plastic Optical Fiber), HCS (Hard Clad Silica) fiber
• Maximum Communication Distance:
  • Direct transmission: Up to 200 meters
  • With TB826 optical converter: Up to 5000 meters
• Power Supply: 24 V DC (external power required)
• Power Consumption: Maximum 20 mA
• Connector Type: M12 industrial optical connector
• Mounting: Standard DIN rail mounting
• Dimensions (W x H x D): Approx. 114 mm x 117 mm x 90 mm
• Net Weight: 0.261 kg
• Protection Degree: IP20 (suitable for indoor control cabinet installation)
• Operating Temperature: -25 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5% to 95% (non-condensing)
• Certifications & Compliance: CE, UL508, ATEX Zone 2, RoHS

Functional Features

High-Speed Optical Communication

• 10 Mbps Fiber-Optic Link: Delivers rapid and stable data transmission for real-time I/O signal exchange, meeting the high-speed communication demands of modern industrial automation systems.
• Electromagnetic Interference Immunity: Fiber-optic technology completely eliminates electrical noise, electromagnetic interference (EMI), and radio frequency interference (RFI), ensuring error-free communication in heavy industrial environments with high voltage equipment and variable frequency drives.
• Long-Distance Transmission: Supports extended communication ranges, enabling flexible system architecture and remote I/O deployment across large industrial sites.

Robust Industrial Design

• Hot-Swappable Construction: Allows installation, removal, or replacement while the system is powered on, minimizing system downtime and maintenance costs.
• Industrial-Grade M12 Connector: Provides a secure, vibration-resistant connection that prevents accidental disconnection and ensures consistent performance in harsh conditions.
• Wide Environmental Tolerance: Operates reliably across a broad temperature range and high humidity levels, adapting to challenging industrial conditions without performance degradation.
• Compact Form Factor: Space-efficient design optimizes panel space utilization, ideal for compact control cabinet setups.

Enhanced System Compatibility & Flexibility

• Seamless S800 I/O Integration: Fully compatible with the entire ABB S800 I/O module range, supporting digital, analog, and special function I/O modules.
• Dual Compatibility with Fiber Types: Supports both plastic optical fiber (POF) for cost-effective short-distance links and hard clad silica (HCS) fiber for extended-range applications.
• Redundancy Support: Can be deployed in redundant network configurations when paired with modules like TB815 and CI820, ensuring uninterrupted communication and high system availability.

Application Scenarios

1. Process Industry Automation
   • Oil and gas refineries and offshore platforms
   • Chemical and pharmaceutical production facilities
   • Power generation plants (thermal, hydro, nuclear)
   • Pulp and paper manufacturing mills
   • Mining and mineral processing operations
2. Manufacturing & Infrastructure
   • Large-scale automotive manufacturing plants
   • Steel mills and metal processing facilities
   • Water treatment and wastewater management systems
   • Smart grid and substation automation
   • Material handling and logistics systems
3. Marine & Offshore Applications
   • Shipboard control and monitoring systems
   • Offshore drilling rigs and production platforms
   • Port and harbor automation equipment
4. Special Industrial Environments
   • High-EMI industrial zones with heavy machinery
   • Long-distance I/O communication across large industrial complexes
   • Systems requiring electrical isolation between control and field equipment

System Integration & Compatibility

• Primary Use Case: Establishes optical Modulebus communication between S800 I/O stations and 800xA controllers.
• Cooperation Modules: Used in conjunction with CI810, CI820, CI830 communication interfaces to build complete optical communication networks.
• Configuration: Configurable via ABB Control Builder Plus software for parameter setting, network diagnostics, and communication monitoring.
• Safety Standards: Complies with international industrial safety standards, suitable for use in critical process control applications.
