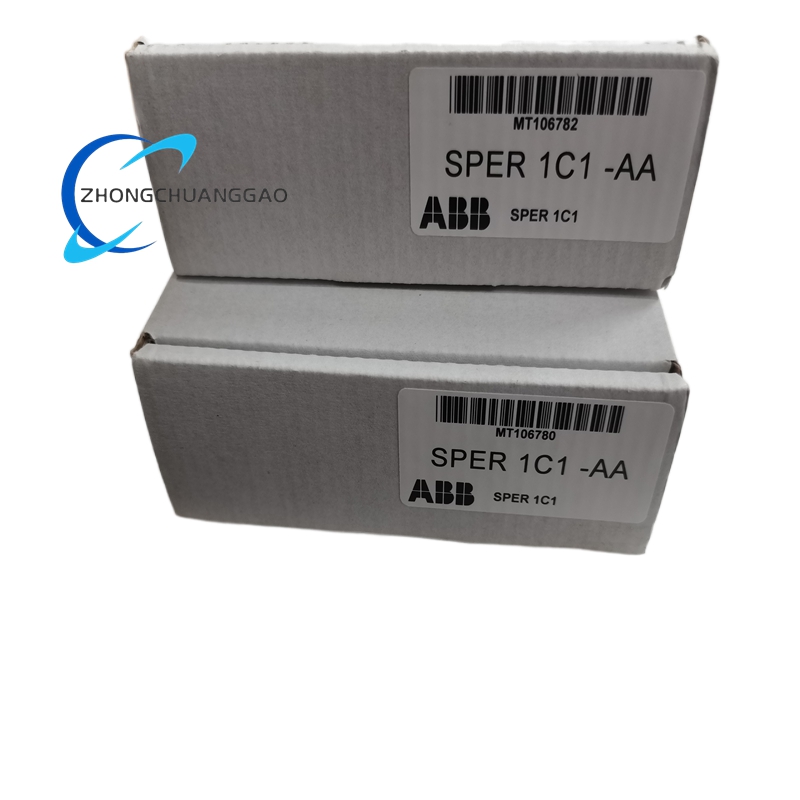

ABB SPER1C1 Trip Circuit Supervision Relay

Description

Basic Parameters

• Product Type: Trip Circuit Supervision Relay
• Mounting Standard: COMBIFLEX System (2U height × 6C width, 1U=44.45mm, 1C=7mm)
• Auxiliary Supply Voltage: 40–265 V DC (wide universal range)ABB Group
• Supervised Circuit Voltage Range: 40–265 V DC (matching auxiliary supply)
• Monitoring Current (Typical): 1.5 mA (constant current generator)
• Minimum Residual Voltage (Terminals 11–21): >40 V DC
• Operating Time: 3 seconds (preset delay, fixed)
• Output Relay Configuration: 1 × change-over contact (CO), normally energized
• Output Contact Breaking Capacity:
  • 220 V DC: 0.15 A (L/R ≤ 40 ms)
  • 110 V DC: 0.25 A (L/R ≤ 40 ms)
  • 48 V DC: 1 A (L/R ≤ 40 ms)
• Dimensions: 88.9 mm (H) × 42 mm (W) × 100 mm (D)
• Weight: Approx. 0.2 kg
• Termination: Screw terminals via COMBIFLEX terminal base

Isolation & Safety Specifications

• Input-Output Isolation: 2500 V AC (1 minute, optical galvanic isolation)
• Isolation Resistance: ≥ 100 MΩ (500 V DC test)
• Leakage Current: < 10 µA (max at nominal voltage)
• Insulation Material: Class B (130°C) industrial-grade thermoset
• Protection Class: IP20 (open-frame module)

Environmental Specifications

• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5–95% (non-condensing, IEC 60068-2-30)
• Vibration Resistance: 1–500 Hz, 1 g (IEC 60068-2-6)
• Shock Resistance: 15 g, 11 ms (IEC 60068-2-27)
• EMC Compliance: EN 61000-6-2 (immunity), EN 61000-6-4 (emission)

Certifications & Compliance

• Safety Approvals: CE, UL Listed, CSA Certified
• Industry Standards: IEC 60255, IEC 60947-5-1
• Environmental: RoHS, REACH
• Quality System: ISO 9001:2015

Key Functional Features

Continuous Constant-Current Monitoring

• Constant Current Source: Injects a stable 1.5 mA monitoring current into the supervised circuit
• Full Fault Detection: Identifies circuit interruptions, poor connections, high contact resistance, and wire breaks
• Contact Welding Detection: Recognizes welded contacts in circuit-breaker auxiliary switchesABB Group
• Voltage Loss Detection: Triggers alarm for complete loss of auxiliary voltage in the monitored circuit
• Supply Voltage Supervision: Monitors its own auxiliary power and signals failure if supply is lost
• Non-Intrusive Operation: Monitoring current does not affect or activate the trip circuit under normal conditions

Optical Isolation & Noise Immunity

• Galvanic Isolation: Complete optical separation between monitoring and relay circuits
• Ground Loop Elimination: Isolation prevents interference from differing ground potentials
• High Noise Rejection: Multi-stage filtering suppresses electromagnetic interference (EMI/RFI)
• Transient Protection: 6 kV surge immunity on all terminals (IEC 61000-4-5)
• Polarity Insensitivity: Operates correctly regardless of DC input polarity

Preset Time Delay Function

• Fixed 3-Second Delay: Prevents false alarms during normal circuit-breaker operationABB Group
• Anti-Flicker Filtering: Ignores transient voltage dips and momentary contact disturbances
• Debounce Functionality: Filters contact bounce and temporary signal fluctuations
• Secure Tripping: Ensures only sustained faults activate alarm outputs
• Selective Fault Recognition: Differentiates between temporary disturbances and permanent faults

Dual Indication System

• Front-Panel LED Indicators:
  • Green LED (OK): Illuminates steady for normal, fault-free operation
  • Red LED (FAULT): Lit continuously when a fault is detected
• Output Relay Signaling:
  • Normally energized during healthy operation
  • De-energizes (drops out) on fault detection or supply loss
  • Provides both normally open (NO) and normally closed (NC) alarm contacts
• Local & Remote Status: Simultaneous local visual indication and remote signaling capabilityABB Group

COMBIFLEX System Integration

• Modular Mounting: Direct fit into ABB COMBIFLEX control and protection panels
• Space-Efficient Design: Compact 2U×6C form factor for high-density panel layouts
• Plug-and-Play Installation: Pre-configured for quick mounting and wiring
• Backward Compatibility: Interchangeable with legacy COMBIFLEX supervision relays
• System Compatibility: Fully integrated with SPACOM distribution automation systems

Reliability & Durability

• Industrial-Grade Components: Long-life components for extended service life
• MTBF Value: > 300,000 hours (at +25°C ambient)
• Weld-Free Construction: All internal connections use pressure contacts
• Vibration-Proof Design: Secured internal components for high-vibration environments
• Corrosion Resistance: Gold-plated internal contacts for stable long-term performance

Application Scenarios

Power Transmission & Distribution

• High-Voltage Substations: Supervision of circuit-breaker trip coils in 110 kV–765 kV installations
• Medium-Voltage Switchgear: Monitoring of feeder, transformer, and bus-section circuit breakers
• Gas-Insulated Switchgear (GIS): Trip circuit supervision in compact GIS assemblies
• Air-Insulated Switchgear (AIS): Control circuit monitoring for conventional switchgear
• Distribution Networks: Supervision of ring main unit (RMU) control circuits

Power Generation Facilities

• Thermal Power Plants: Generator outlet circuit-breaker trip circuit monitoring
• Hydropower Stations: Turbine-generator switchgear control circuit supervision
• Gas Turbine Plants: Peak-load generator circuit-breaker fault detection
• Wind Farms: Collector grid circuit-breaker control circuit monitoring
• Solar Power Plants: Inverter output switchgear supervision

Industrial Power Systems

• Oil & Gas Facilities: Refinery and petrochemical plant substation circuit supervision
• Chemical Plants: Hazardous area switchgear trip circuit monitoring
• Steel Mills: Heavy-industry power distribution control circuit supervision
• Mining Operations: Underground and surface mine power switchgear monitoring
• Cement Plants: Raw material and kiln circuit-breaker control supervision

Infrastructure & Commercial

• Railway Electrification: Traction power substation circuit supervision
• Metro & Light Rail: Transit system power distribution monitoring
• Data Centers: Uninterrupted power supply (UPS) bypass circuit supervision
• Hospitals: Critical care facility backup power control circuit monitoring
• Airports: Airside and terminal power distribution switchgear supervision

Marine & Offshore

• Shipboard Power Systems: Vessel main and emergency switchgear supervision
• Offshore Platforms: Top-side and substation power circuit monitoring
• FPSO Vessels: Floating production unit power distribution control
• Naval Vessels: Military ship power protection circuit supervision
• Port Facilities: Container terminal power switchgear monitoring

Utility & Municipal

• Water Treatment Plants: Pump station power control circuit supervision
• Wastewater Facilities: Aeration and sludge treatment switchgear monitoring
• District Heating: Power distribution for large-scale heating systems
• Telecom Towers: Remote power station circuit-breaker supervision
• Municipal Grids: Urban and rural power distribution network monitoring
