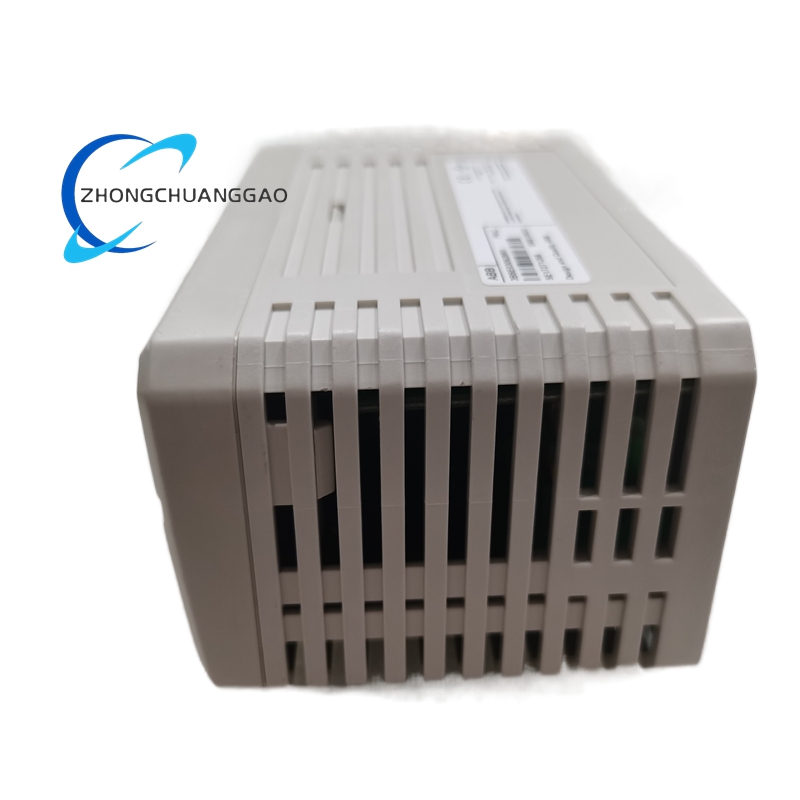

ABB SM810K01 Safety CPU Module Kit

Description

Basic Parameters

• Product Type: Safety CPU Module Kit
• Component Composition: SM810 Safety Module + TP855 Baseplate
• Compatible Systems: ABB AC 800M DCS, S800 I/O Systems
• Baseplate Width: 60 mm (TP855)
• Processor Clock Speed: 96 MHz
• Memory Capacity: 32 MB (Non-volatile Safety Memory)
• Power Supply: 24 V DC (Nominal, 18–32 V DC Range)
• Power Consumption: Max. 5 W
• Dimensions (SM810 Module): 119 mm (L) × 73 mm (W) × 38 mm (H)
• Weight: Approximately 0.3 kg
• Mounting: DIN Rail Mounting (via TP855 Baseplate)
• Protection Class: IP20 (Open-Frame Module)

Safety & Isolation Specifications

• Safety Standard Compliance: IEC 61508 SIL 3, IEC 61511 SIL 3
• Channel Isolation: 2500 V AC (Channel-to-Backplane)
• Isolation Resistance: ≥ 100 MΩ (500 V DC Test)
• Leakage Current: < 10 µA (Max.)
• Fault Response Time: < 10 ms (Safety Shutdown)

Communication Specifications

• Backplane Communication: AC 800M DCS Backplane Bus
• Safety Communication Protocol: PROFIsafe, Modbus Safety
• Ethernet Interface: 1 × 10/100 Mbps RJ45 Port
• Serial Interfaces: 2 × RS-485 Ports (Isolated)
• Communication Distance: Up to 100 m (Ethernet), 1200 m (RS-485)
• Network Topologies: Star, Line, Ring (Redundant)

Environmental Specifications

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% (Non-Condensing)
• Vibration Resistance: 2 g (10–2000 Hz, IEC 60068-2-6)
• Shock Resistance: 15 g (11 ms, IEC 60068-2-27)
• EMC Standards: EN 61000-6-2, EN 61000-6-4, IEC 61326

Certifications & Compliance

• Functional Safety: TÜV Rheinland SIL 3 Certification
• Safety Approvals: ATEX, IECEx (for Hazardous Areas)
• Safety Standards: IEC 61508, IEC 61511, ISO 13849-1
• General Certifications: CE, UL, CSA
• Environmental: RoHS, REACH Compliance

Key Functional Features

High-Integrity Safety Processing

• SIL 3 Certified Architecture: Dual-processor cross-checking design for zero fault tolerance
• Safety Program Execution: Dedicated safety logic execution separate from standard control
• Non-Volatile Safety Memory: Retains safety programs and configurations without power
• Deterministic Operation: Fixed scan times guarantee predictable safety response
• Safe State Management: Automatic transition to predefined safe state on fault detection

Comprehensive Safety I/O Integration

• Direct Safety I/O Support: Interfaces with S800 Safety I/O modules (DO, DI, AI, AO)
• 16-Channel Digital Output Capability: Controls safety actuators (valves, drives, alarms)
• Channel-Isolated Outputs: Galvanic isolation prevents fault propagation between loops
• Safety Feedback Monitoring: Continuous verification of actuator position and status
• Redundant I/O Configuration: Supports 1oo2, 2oo3 voting for critical safety functions

Advanced Diagnostic Capabilities

• Real-Time Fault Detection: Continuous self-testing of all safety-critical components
• Channel-Level Diagnostics: Per-channel fault reporting (short circuit, overload, disconnection)
• Safety Event Logging: Non-volatile storage of last 100 safety events (timestamped)
• Built-In Test (BIT): Power-up and periodic self-diagnostics for full integrity verification
• Fault Isolation: Precise fault identification for rapid maintenance and reduced downtime

Reliable Communication & Redundancy

• Safe Communication Protocols: PROFIsafe V2, Modbus Safety for secure data transmission
• Redundant Network Support: Dual Ethernet/serial ports for communication redundancy
• Data Integrity: 16-bit CRC checks for all safety-critical data transfers
• Isolated Communication Ports: Prevents ground loops and electrical interference
• Synchronized Communication: Time-stamped safety data for multi-node coordination

Robust Industrial Design

• Wide Temperature Operation: Functions reliably in extreme industrial environments
• High Immunity Design: Multi-stage filtering against electromagnetic interference
• Surge Protection: 6 kV surge immunity (IEC 61000-4-5) for power and communication lines
• Conformal Coating Option: Available for harsh environments (dust, moisture, chemicals)
• Long-Life Components: Industrial-grade parts for extended service life (MTBF > 500,000 hours)

Flexible Programming & Configuration

• Safety Programming Language: Function Block Diagram (FBD), Ladder Logic (LD)
• Pre-Certified Safety Function Blocks: Emergency shutdown, over-speed protection, flame detection
• Offline Simulation: Safety program testing without process interruption
• Change Management: Secure access control for safety program modifications
• Version Control: Complete audit trail for all safety logic changes

Status Indication & Interface

• Multi-Color LED Indicators: Power (green), Run (green), Fault (red), Safety Active (yellow)
• Channel Status LEDs: Per-channel indication for output state and faults
• Local Operator Interface: Basic status and reset functions via front-panel buttons
• Remote Monitoring: Full status access via DCS network or HMI
• Fault Relay Output: Isolated contact for remote safety fault indication

Application Scenarios

Oil & Gas Industry

• Refinery Safety Systems: Emergency shutdown for distillation units, catalytic crackers
• Offshore Platforms: Wellhead shutdown, fire and gas protection systems
• Pipeline Stations: Pipeline emergency isolation, pump station safety interlocks
• LNG Facilities: Cryogenic process safety, storage tank overpressure protection
• Drilling Rigs: Blowout preventer control, rig safety interlock systems

Chemical & Petrochemical Processing

• Reactor Safety Systems: High-pressure/temperature emergency shutdown
• Hazardous Material Handling: Storage tank safety, toxic material release prevention
• Polymerization Plants: Exothermic reaction safety control
• Fertilizer Production: Ammonia plant safety, gas detection and shutdown
• Pharmaceutical Manufacturing: Sterile process safety, pressure vessel protection

Power Generation

• Thermal Power Plants: Boiler safety systems, turbine protection
• Nuclear Power Facilities: Non-nuclear safety system control
• Hydropower Stations: Turbine overspeed protection, penstock shutdown
• Wind Turbines: Generator safety, rotor brake control
• Substations: Transformer protection, switchgear interlock systems

Metals & Mining

• Steel Mills: Blast furnace safety, continuous caster emergency stop
• Aluminum Smelters: Potline safety, short-circuit protection
• Mining Operations: Conveyor safety, mine ventilation control
• Mineral Processing: Crusher safety, grinding mill overpressure protection
• Metal Fabrication: Furnace safety, hydraulic system protection

Pulp & Paper Manufacturing

• Recovery Boiler Safety: High-temperature shutdown, flame failure protection
• Digester Systems: Pressure relief control, emergency chemical injection
• Paper Machine Safety: Dryer section fire protection, roll breakage shutdown
• Chemical Recovery: Black liquor oxidation system safety
• Effluent Treatment: Waste gas combustion system protection

Water & Wastewater Treatment

• Water Purification: Filter backwash safety, chemical feed protection
• Wastewater Plants: Anaerobic digester safety, gas detection systems
• Desalination Plants: High-pressure pump protection, membrane safety
• Pumping Stations: Wet well overfill protection, pump interlock systems
• Water Distribution Networks: Pipeline rupture detection, valve isolation control

Marine & Offshore Applications

• Vessel Propulsion: Engine safety, propulsion system emergency stop
• Dynamic Positioning: Thruster safety, position reference loss protection
• Deck Machinery: Crane overload protection, winch emergency brake
• FPSO Vessels: Process safety, fire and gas detection systems
• Naval Vessels: Weapon system safety, machinery protection

General Manufacturing & Infrastructure

• Automotive Production: Paint shop safety, robot cell emergency stop
• Food & Beverage: Sterilization system safety, pressure vessel protection
• Textile Mills: Dyeing vessel safety, steam system protection
• Building Automation: High-rise fire safety, HVAC emergency shutdown
• Material Handling: Elevator safety, conveyor system emergency stop
