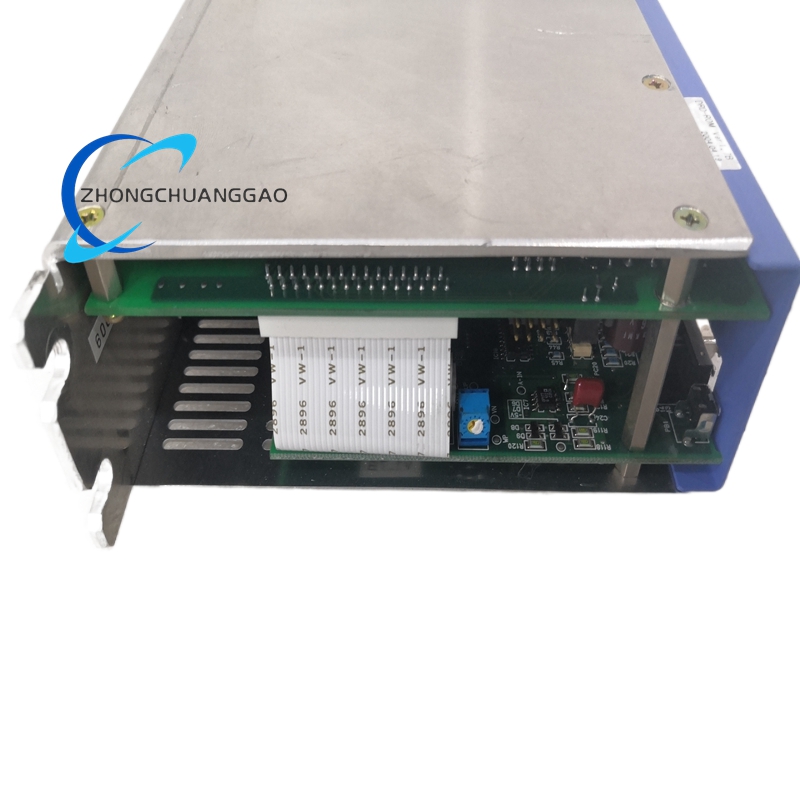

ABB SDN-DRI-025 Industrial DeviceNet Network Communication Interface Module

Description

Technical Specifications

• Product Type
  • DeviceNet Network Communication Interface Module
• Network Compatibility
  • Network Standard: DeviceNet (CAN-based industrial network protocol)
  • Underlying Protocol: CAN 2.0A
  • Data Transmission: Differential signaling
  • Network Topology: Linear (bus) structure
• Communication Performance
  • Baud Rates: 125 kbps, 250 kbps, 500 kbps
  • Maximum Cable Length: 500 m (at 125 kbps)
  • Maximum Network Nodes: 64 devices
  • Isolation Voltage: 500 Vrms (network to logic)
• Electrical Specifications
  • Supply Voltage: 24 V DC (±10%)
  • Current Consumption: 200 mA (typical)
  • Power Dissipation: ≤ 4.8 W
• Physical & Mechanical Data
  • Dimensions: Standard DIN-rail mountable form factor
  • Weight: Approximately 0.2 kg
  • Mounting: 35 mm DIN rail mounting
  • Connector: 5-pin Mini Quick Disconnect (DeviceNet standard)
  • Board Construction: Multi-layer FR-4 PCB with conformal coating
• Environmental Ratings
  • Operating Temperature: -20 °C to +60 °C
  • Storage Temperature: -40 °C to +85 °C
  • Relative Humidity: 5 – 95% RH (Non-condensing)
  • Vibration Resistance: Complies with IEC 61131-2
  • Shock Resistance: Complies with IEC 61131-2
  • Pollution Degree: 2
• Safety & Compliance
  • Certifications: CE, UL, cUL, RoHS
  • EMC Standards: EN 61000-6-2 (Industrial immunity), EN 61000-6-4 (Emission)
  • Protection Class: IP20

Key Features

• High-Reliability Industrial Communication
  • Galvanic Isolation: 500 Vrms electrical isolation eliminates ground loops and protects control circuits from high-voltage transients on the network.
  • Signal Integrity: Advanced differential signaling ensures error-free data transmission over long cables in high-interference industrial environments.
  • Wide Baud Rate Support: Auto-detects and supports three standard DeviceNet baud rates for flexible network design.
  • Large Node Capacity: Supports connection of up to 64 field devices, enabling extensive distributed I/O and drive networks.
• Robust & Durable Design
  • Conformal Coating: Full PCB conformal coating protects against dust, moisture, oil, and corrosive gases found in industrial facilities.
  • Wide Temperature Range: Operates reliably across extreme temperature variations without performance degradation.
  • Industrial Grade Components: Utilizes high-quality, long-life electronic components for continuous 24/7 operation.
  • Shock & Vibration Proof: Rugged construction withstands mechanical shocks and vibrations common in industrial machinery environments.
• Seamless System Integration
  • Plug-and-Play Compatibility: Directly integrates with ABB ACS800, ACS580, DCS800 series drives and ABB PLCs/Controllers.
  • Standard DeviceNet Profile: Implements standard DeviceNet communication profiles for easy integration with third-party DeviceNet devices.
  • DIN-Rail Mount: Quick and secure installation on standard 35 mm DIN rails within control cabinets.
  • Compact Form Factor: Space-saving design minimizes panel space usage, ideal for compact control systems.
• Advanced Communication & Diagnostics
  • Real-Time Data Exchange: Enables high-speed transfer of process data, status signals, and control commands.
  • Comprehensive Diagnostics: Built-in LED indicators for network status, communication activity, and fault conditions.
  • Error Detection & Correction: Implements CAN protocol error handling and retransmission for maximum data reliability.
  • Remote Configuration: Supports remote parameter setting, firmware updates, and drive diagnostics via the network.
• Easy Installation & Maintenance
  • Tool-Free Wiring: Uses standard 5-pin quick-disconnect connectors for fast, error-free wiring.
  • Hot-Swappable: Supports module replacement without complete system shutdown in redundant configurations.
  • Auto-Baud Detection: Automatically detects network baud rate, simplifying commissioning.
  • Minimal Maintenance: Solid-state design with no moving parts ensures long-term, maintenance-free operation.

Application Scenarios

• Industrial Automation & Manufacturing
  • Automotive Production: Integrates robot controllers, assembly line drives, and I/O systems on a unified DeviceNet network.
  • Packaging Machinery: Connects labeling machines, fillers, and wrappers for synchronized control and monitoring.
  • Material Handling Systems: Controls conveyors, lifts, and sorting systems with real-time communication.
  • General Assembly Lines: Links PLCs, HMIs, and variable speed drives for flexible manufacturing cells.
• Food & Beverage Industry
  • Processing Lines: Manages mixing, grinding, and extrusion drives with centralized network control.
  • Packaging & Bottling: Synchronizes filling, capping, and labeling machines.
  • Storage & Retrieval: Controls automated warehouse cranes and conveyors.
• Metals & Mining
  • Rolling Mills: Connects main drive inverters and tension control systems.
  • Conveyor Systems: Reliable communication for long-distance mining conveyors.
  • Crushing & Screening: Integrates multiple motor drives in mineral processing plants.
• Pulp & Paper
  • Paper Machines: Networked control for sectional drives and tension regulators.
  • Pulp Processing: Connects digester drives and auxiliary equipment.
• Water & Wastewater Treatment
  • Pump Control: Remote monitoring and control of water supply and wastewater pumps.
  • Treatment Processes: Integrates blowers, valves, and sensor networks.
• Oil & Gas Industry
  • Pumping Stations: Networked control for pipeline pumps and compressors.
  • Refinery Processes: Connects drive systems in hazardous area classified zones.
• Marine & Offshore
  • Ship Automation: Controls propulsion aids, winches, and deck machinery.
  • Dynamic Positioning: Integrates thruster control systems.
