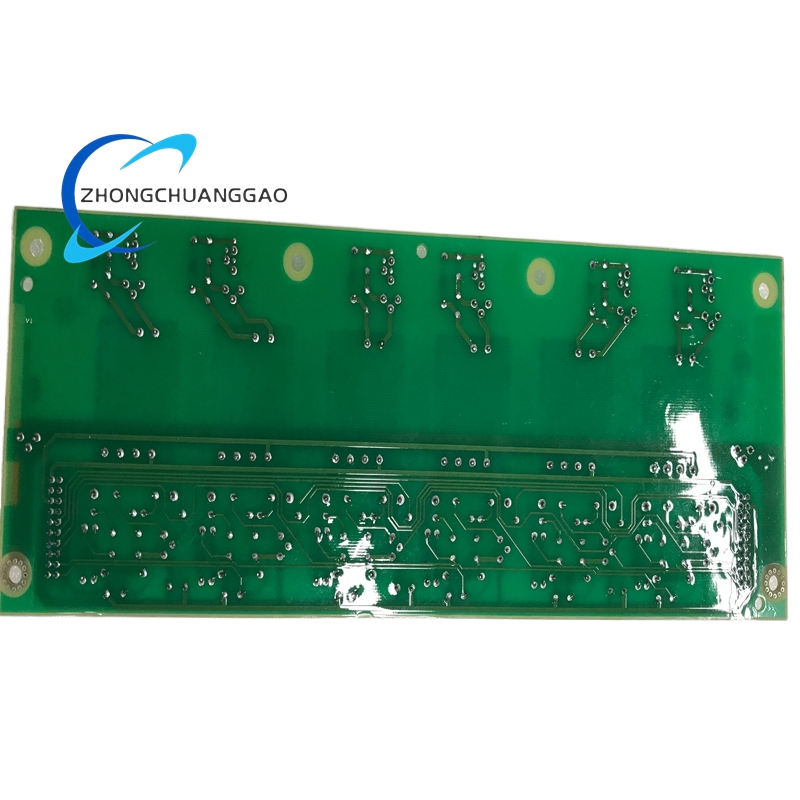

ABB SDCS-PIN-48-SD High-Performance Pulse Transformer Board for Industrial Drives

Description

Technical Specifications

• Product Type
  • Pulse Transformer Board (Gate Drive Interface Board)
• Compatible Drive Systems
  • ABB DCS800 Series DC Drives
  • ABB DCS500 Series DC Drives
  • ABB DCS600 Series DC Drives
  • ABB ACS800 Series AC Drives
• Isolation Performance
  • Isolation Voltage: 2500 V AC (Input to Output)
  • Isolation Type: Galvanic Isolation via Pulse Transformers
• Power Supply
  • Operating Voltage: 24 V DC (Supplied by the host drive system)
  • Power Consumption: ≤ 5 W (Typical)
• Signal Interface
  • Input: Low-voltage control pulse signals from the main control board (SDCS-CON series)
  • Output: Isolated, amplified gate drive pulses for power converter stages
  • Number of Pulse Channels: 6 Channels (For 3-phase bridge converter topologies)
• Physical & Mechanical Data
  • Dimensions (W x H x D): 231 mm x 91 mm x 20 mm
  • Weight: 0.328 kg
  • Mounting: Internal PCB mounting within drive chassis
  • Board Construction: Multi-layer FR-4 epoxy resin PCB
  • Connector Type: Edge connector with 48-pin interface
• Environmental Ratings
  • Operating Temperature: -20 °C to +70 °C
  • Storage Temperature: -40 °C to +85 °C
  • Relative Humidity: 5 – 95% RH (Non-condensing)
  • Vibration/Shock Resistance: Complies with IEC 61131-2
  • Pollution Degree: Degree 2 (IEC 60664-1)
  • Flammability Class: UL 94 V-0
• Safety & Compliance
  • Certifications: CE, UL, cUL
  • EMC Standards: EN 61000-6-2, EN 61000-6-4
  • Protection Class: IP20 (For internal installation)

Key Features

• Superior Signal Isolation & Integrity
  • High-Voltage Isolation: 2500 V AC galvanic isolation separates low-voltage control circuits from high-voltage power circuits, ensuring personnel safety and equipment protection.
  • Pulse Fidelity: Maintains precise pulse width, rise time, and amplitude characteristics for accurate converter switching.
  • EMI Immunity: Advanced shielding and transformer design suppress electromagnetic interference, ensuring stable signal transmission in industrial environments.
  • Low Signal Distortion: Minimizes pulse delay and distortion for high-precision drive control performance.
• Robust Industrial Design
  • Conformal Coating: PCB is protected by a conformal coating against dust, moisture, oil, and corrosive industrial gases.
  • High-Grade Components: Utilizes industrial-grade transformers and electronic components for extended service life (>10 years).
  • Wide Temperature Range: Operates reliably across extreme temperature variations without performance degradation.
  • Vibration Resistant: Secure component mounting and rigid PCB design withstand industrial vibration and shock loads.
• Optimized Drive Integration
  • Plug-and-Play Compatibility: Directly interfaces with ABB SDCS-CON series main control boards via a 48-pin edge connector.
  • 6-Channel Topology: Six independent pulse channels fully support three-phase bridge power converter configurations.
  • No External Components: Integrates all necessary pulse shaping, amplification, and protection circuits internally.
  • Compact Form Factor: Slim profile design minimizes space usage within the drive cabinet.
• Comprehensive Protection Features
  • Overcurrent Protection: Built-in current limiting for each pulse channel prevents damage to output stages.
  • Short-Circuit Protection: Isolates and protects against short-circuit conditions on the output side.
  • Reverse Polarity Protection: Safeguards against incorrect power supply connections.
  • Thermal Stability: Maintains performance under high thermal load conditions with stable component characteristics.
• Easy Installation & Maintenance
  • Tool-Less Installation: Secure edge connector enables quick installation and replacement.
  • Hot-Swap Support: Allows module replacement without complete drive shutdown in redundant configurations.
  • Long Service Life: High-quality materials and design ensure minimal maintenance requirements.
  • Standardized Interconnects: Uses industry-standard connectors for consistent and reliable connections.
