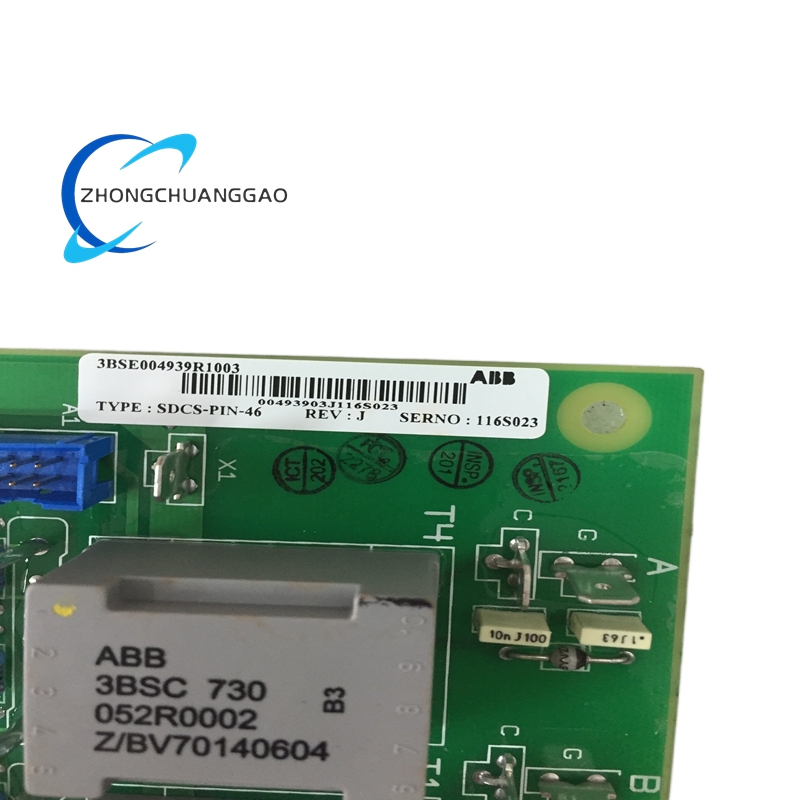

ABB SDCS-PIN-46-COAT Pulse Transformer Interface Board

Description

Basic Parameters

• Product Series: SDCS (DCS DC Drive Series)
• Module Type: Pulse Transformer Interface Board (Conformal Coated)
• Compatible Drives: ABB DCS400, DCS500, DCS600, DCS800 DC drives
• Logic Supply Voltage: 24 V DC (from drive control system)
• Power Consumption: Max. 8 W
• Dimensions: 260 mm (L) × 150 mm (W) × 40 mm (H)
• Weight: Approximately 0.4 kg (0.399 kg)
• Mounting: Plug-in slot mounting (drive internal chassis)
• Protection Class: IP20 (conformal coated PCB)
• Conformal Coating: Industrial-grade protective lacquer (full PCB coverage)

Isolation & Signal Specifications

• Galvanic Isolation Voltage: 2500 V rms (control logic to power section)
• Pulse Channels: 8 independent isolated pulse output channels
• Pulse Voltage Level: 15 V DC (gate drive output)
• Pulse Current Capacity: 2 A peak (per channel)
• Pulse Frequency Range: 0–10 kHz
• Rise/Fall Time: <1 µs (fast pulse edge for precise switching)
• Signal Transmission Delay: <5 µs (channel-to-channel consistency)
• Channel-to-Channel Isolation: 1500 V rms (between individual pulse channels)

Environmental Specifications

• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% (non-condensing, coated for high humidity)
• Vibration Resistance: 10–2000 Hz, 2 g (IEC 60068-2-6)
• Shock Resistance: 15 g, 11 ms (IEC 60068-2-27)
• EMC Standards: EN 61800-3, EN 61000-6-2, EN 61000-6-4

Certifications & Compliance

• Safety Certifications: CE, UL, CSA
• Environmental Compliance: RoHS, REACH
• Quality Standard: ISO 9001:2015
• Industrial Safety: IEC 61508 (SIL 2 compatible for drive safety functions)

Key Functional Features

High-Precision Pulse Transmission

• 8-Channel Independent Outputs: Eight fully isolated gate pulse channels for multi-bridge power converter control
• Low Signal Distortion: High-bandwidth pulse transformers maintain pulse integrity for accurate semiconductor triggering
• Precise Timing Control: Sub-microsecond pulse synchronization for balanced power switching and reduced harmonic distortion
• Adjustable Pulse Width: Configurable pulse duration (1–500 µs) for different power semiconductor requirements

Superior Galvanic Isolation

• Multi-Stage Isolation Design: Transformer-based isolation between control logic and high-voltage power circuits
• Ground Loop Elimination: Full electrical separation prevents ground potential differences and interference
• High Dielectric Strength: 2500 V isolation withstands voltage spikes and transient overvoltages in industrial power systems
• Personnel & Equipment Protection: Isolation barrier protects control electronics and operators from high-voltage hazards

Conformal Coated Durability

• Chemical Resistance: Protective coating repels oils, solvents, acids, and industrial contaminants
• Moisture & Dust Protection: Sealed PCB surface prevents short circuits from humidity, dust, and particulate accumulation
• Corrosion Resistance: Ideal for offshore, coastal, and chemical plant environments with corrosive atmospheres
• Extended Service Life: Coating reduces component aging and increases MTBF (mean time between failures)

Comprehensive Protection Functions

• Short-Circuit Protection: Electronic current limiting on each pulse channel (2 A peak)
• Overcurrent Detection: Instantaneous fault detection and pulse inhibition for shorted gate drives
• Undervoltage Lockout: Prevents pulse output when logic supply voltage falls below threshold
• Temperature Monitoring: On-board thermal sensing for over-temperature protection
• Fault Feedback: Isolated fault signal output to drive control system for abnormal condition handling

Drive System Compatibility

• Plug-and-Play Integration: Direct replacement for standard SDCS-PIN-46 boards in DCS drive series
• Hot-Swap Compatible: Board replacement without complete drive shutdown (with proper safety procedures)
• Firmware Compatibility: Supports all standard DCS drive firmware versions (no updates required)
• Status Indication: LED indicators for power, pulse output active, and fault conditions
• Flexible Wiring: Screw terminal or connector-based pulse output connections for easy installation

Reliability & Performance

• Industrial-Grade Components: High-temperature, long-life electronic components for continuous operation
• Low Leakage Current: Isolation design maintains <1 µA leakage for high safety standards
• Wide Voltage Tolerance: Operates with 24 V DC ±10% logic supply voltage fluctuations
• EMI Immunity: Multi-stage filtering and shielding against electromagnetic interference in industrial environments
• Burn-In Testing: 100% factory burn-in testing under full load and temperature extremes

Application Scenarios

Metals & Steel Industry

• Rolling Mills: Gate control for main DC drives in hot/cold rolling mills
• Strip Processing Lines: Tension reel and coiler drive pulse control
• Wire Rod Mills: High-speed motor control for wire drawing operations
• Aluminum Rolling Mills: Multi-stand coordinated drive control systems

Paper & Pulp Manufacturing

• Paper Machines: Drive control for forming, press, dryer, and calender sections
• Pulp Digester Systems: High-power DC drive firing for rotary digesters
• Slitter Rewinders: Precision pulse control for tension and speed regulation
• Coating & Laminating Lines: Synchronized multi-drive control systems

Mining & Mineral Processing

• Mine Hoists: Deep-shaft hoist DC drive pulse control
• Crusher Drives: Variable speed control for ore crushing systems
• Conveyor Systems: Long-distance belt conveyor drive control
• Grinding Mills: Ball mill and SAG mill high-power drive control

Oil & Gas Industry

• Offshore Drilling Rigs: Draw works and rotary table drive control
• Pipeline Pumping Stations: Multi-pump parallel drive systems
• Refinery Process Units: Fluid catalytic cracking and hydrocracker drives
• LNG Facilities: Cryogenic pump and compressor drive control

Marine & Offshore Applications

• Vessel Propulsion Drives: Azimuth thruster and main propulsion motor control
• Deck Machinery: Winch, crane, and mooring system drive pulse control
• Dynamic Positioning Systems: Thruster speed and torque regulation
• Offshore Supply Vessels: Cargo handling and crane drive systems

Cement & Building Materials

• Rotary Kiln Drives: Variable speed control for cement kilns
• Vertical Roller Mills: Grinding mill drive firing control
• Raw Material Handling: Long conveyor system drive control
• Packing Plant Machinery: Rotary packer and palletizer drive systems

Harsh Environment Industrial Sites

• Coastal & Offshore Installations: Conformal coated design for salt spray resistance
• Chemical Processing Plants: Corrosion-resistant operation in chemical atmospheres
• Wastewater Treatment Facilities: Humidity and contaminant resistance
• Food & Beverage Plants: Washdown environment protection (coated PCB)

General Industrial Automation

• Test Benches: Dynamometer and load test system drive control
• Material Handling: Elevator, escalator, and automated storage systems
• Printing Presses: Web tension control for multi-color printing machines
• Textile Machinery: Spinning, weaving, and dyeing line precision drives
• Plastic Processing: Extrusion and injection molding machine drives
