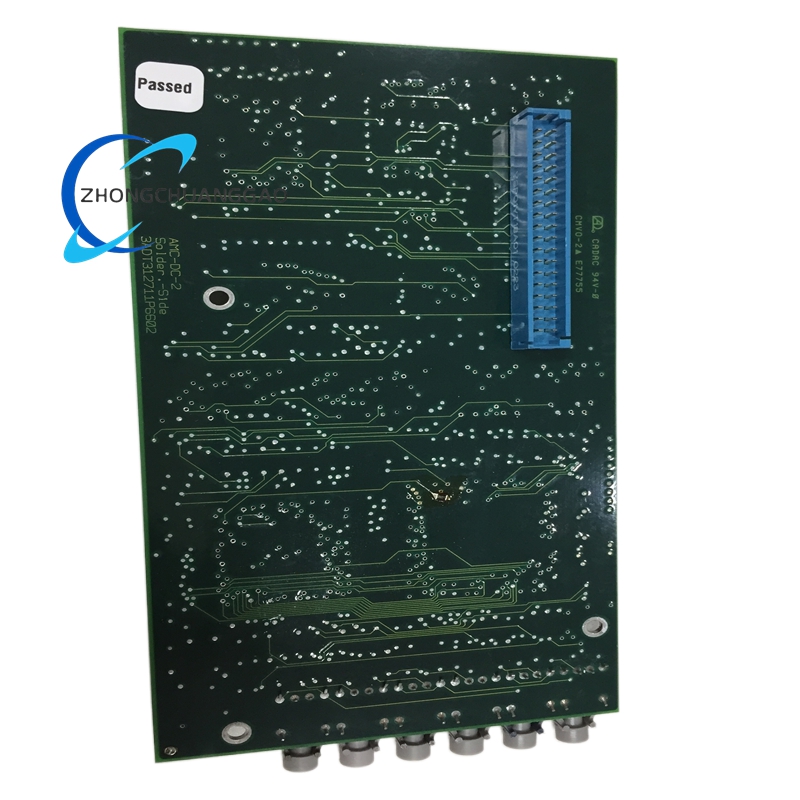

ABB SDCS-AMC-DC-D2 DC Drive Control Module

Description

Basic Parameters

• Product Series: DCS DC Drive Series (Compatible with DCS400, DCS500, DCS600, DCS800)
• Module Type: DC Drive Control Module / Master-Follower Link Board
• Supply Voltage: 24 V DC (nominal)
• Power Consumption: Max. 10 W
• Dimensions: 200 mm (W) × 150 mm (D) × 50 mm (H)
• Weight: Approximately 0.4 kg
• Mounting: PCB mounting / Rack-mountable (Drive control cabinet)
• Protection Class: IP20 (conformal coating optional)

I/O Interface Specifications

• Digital Inputs: 8 optically isolated digital input channels (24 V DC, active high/low configurable)
• Digital Outputs: 4 relay output channels (30 V DC / 250 V AC, 5 A resistive load)
• Analog Outputs: 4 analog output channels (0–10 V DC / 4–20 mA, 12-bit resolution)
• Encoder Inputs: 2 channels (supports incremental encoders, 5 V / 24 V, up to 1 MHz pulse frequency)
• Isolation Voltage: 2500 V rms (channel-to-channel, I/O-to-logic)
• Signal Sampling Rate: 16-bit ADC, 10 kHz sampling frequency

Processing & Memory

• Processor: High-speed 32-bit DSP (Digital Signal Processor)
• Control Cycle Time: 0.1–1 ms (user-configurable)
• RAM: 8 KB (volatile data storage)
• Non-Volatile Memory: 32 KB EEPROM (program & parameter storage)
• Clock Resolution: 1 µs (precision timing for control loops)

Communication Interfaces

• Serial Ports: 1 × RS-232, 1 × RS-485 (isolated)
• Fieldbus Protocols: Modbus RTU, Profibus DP, CANopen
• Ethernet: 1 × 10/100 Mbps Ethernet (TCP/IP, Modbus TCP)
• Master-Follower Link: Dedicated high-speed synchronous bus (12 Mbps)
• Drive Bus: Internal parallel bus for communication with drive power modules

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% (non-condensing)
• Vibration Resistance: 10–2000 Hz, 2 g (IEC 60068-2-6)
• Shock Resistance: 15 g, 11 ms (IEC 60068-2-27)
• EMC Compliance: EN 61800-3, EN 61000-6-2, EN 61000-6-4

Certifications & Compliance

• Safety Certifications: CE, UL, CSA
• Environmental Compliance: RoHS, REACH
• Quality Standard: ISO 9001:2015

Key Functional Features

Precision DC Motor Control

• Closed-Loop Speed Regulation: ±0.01% speed accuracy (encoder feedback)
• Torque Control: Precise torque limiting & control (0–100% rated torque)
• Four-Quadrant Operation: Full regenerative braking & bidirectional power flow
• Vector Control: Advanced field-oriented control (FOC) for dynamic performance
• Soft Start/Stop: Programmable acceleration/deceleration ramps (0.1–300 s)

Master-Follower Synchronization

• High-Speed Link: Dedicated bus for <1 ms cross-drive synchronization
• Speed Following: ±0.1% speed tracking error between master & follower drives
• Torque Following: Direct torque distribution for multi-motor load sharing
• Position Synchronization: Electronic line shaft for coordinated multi-axis motion
• Redundant Link: Dual communication paths for fault-tolerant operation

Comprehensive Protection Mechanisms

• Overvoltage Protection (OVP): Clamps DC bus voltage & triggers safe shutdown
• Overcurrent Protection (OCP): Instantaneous electronic current limiting (<5 µs response)
• Overtemperature Protection (OTP): IGBT & motor thermal monitoring with auto-recovery
• Under Voltage Lockout (UVLO): Prevents operation below minimum voltage threshold
• Short-Circuit Protection: Gate drive interlock & fast fuse integration
• Motor Protection: Overload, stall, phase loss, & earth fault detection

Advanced Diagnostics & Monitoring

• Real-Time Status: LED indicators for power, run, fault, comms, & I/O status
• Parameter Monitoring: Continuous tracking of voltage, current, speed, torque, & temperature
• Fault Logging: Non-volatile storage of 50+ fault events with timestamps & codes
• Oscilloscope Function: 4-channel trace recording (1 µs resolution) for process analysis
• Self-Diagnostics: Power-on self-test (POST) & continuous runtime diagnostics

Flexible Configuration & Programming

• Parameterization: PC software (DriveWindow) for offline/online configuration
• Control Modes: Selectable speed, torque, or position control modes
• Signal Routing: Fully configurable I/O mapping & function assignment
• Custom Logic: Programmable logic functions (PLC-style ladder logic)
• Firmware Upgrades: Flash-based firmware updates via USB/fieldbus

Industrial Reliability Design

• Conformal Coating: Optional PCB coating for corrosive/dusty environments
• Long-Life Components: Industrial-grade electrolytic capacitors (≥100,000 hours MTBF)
• Isolated Design: Full galvanic isolation eliminates ground loops & noise interference
• EMI Filtering: Multi-stage filtering for compliance with industrial EMC standards
• Hot-Swappable: Module replacement without complete drive shutdown (with backup power)

Application Scenarios

Metals & Mining Industry

• Steel Mills: Main drive control for rolling mills, strip processing lines, & coilers
• Aluminum Smelters: Soderberg anode rod positioning & cathode drive control
• Wire Drawing: Precision speed synchronization for multi-drum drawing machines
• Metal Rolling: Master-follower control for tandem mill stands & tension reels

Paper & Pulp Manufacturing

• Paper Machines: Drive control for forming, pressing, drying, & calendering sections
• Pulp Mills: Digester, washer, & bleaching process drive systems
• Converting Lines: Laminators, coaters, & slitter-rewinders with tension control
• Master-Follower Systems: Synchronized multi-drive control for paper machine sections

Cement & Minerals Processing

• Kiln Drives: Variable speed control for rotary cement kilns
• Grinding Mills: Ball mill & vertical roller mill drive control
• Conveyor Systems: Long-distance belt conveyor master-follower drive control
• Packing Lines: Precision speed control for rotary packers & bagging machines

Oil & Gas Industry

• Pumping Stations: Multi-pump parallel control for pipeline transmission
• Drilling Rigs: Draw works, rotary table, & mud pump drive control
• Offshore Platforms: Compressor & pump control for topside processing
• LNG Terminals: Cryogenic pump & valve actuator drive systems

Marine & Offshore Vessels

• Propulsion Drives: Azimuth thruster & main propulsion motor control
• Deck Machinery: Winch, crane, & mooring system drive control
• Dynamic Positioning: Thruster speed & torque control for station-keeping
• Cargo Handling: Offshore supply vessel crane & winch master-follower systems

Manufacturing & Automation

• Machine Tools: Spindle & feed axis control for lathes, mills, & grinders
• Printing Presses: Web tension control & multi-axis synchronization
• Textile Machinery: Spinning, weaving, & dyeing line precision speed control
• Material Handling: Elevators, escalators, & automated storage/retrieval systems

Power Generation

• Turbine Control: Governing system for steam & gas turbines
• Pump Control: Feedwater, condensate, & cooling water pump variable speed drives
• Excitation Control: Generator field excitation current regulation
• Balancing Plants: Boiler feed & induced draft fan drive systems

Water & Wastewater

• Pump Stations: Multi-pump speed control for water distribution networks
• Treatment Plants: Aeration, filtration, & sludge handling drive systems
• Desalination: High-pressure pump & membrane process drive control
• Irrigation Systems: Variable speed pump control for agricultural water networks
