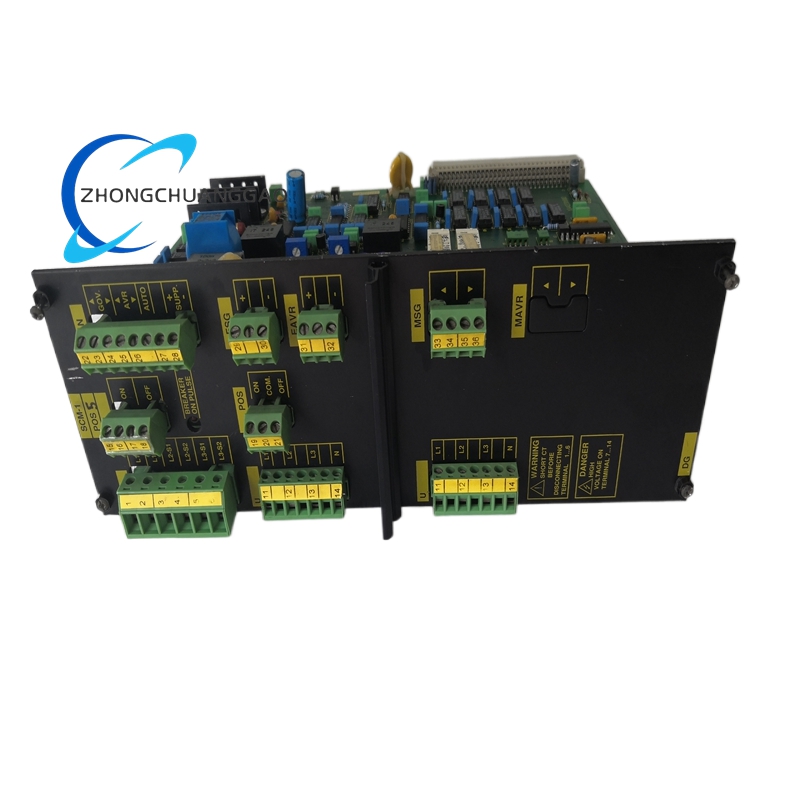

ABB SCM-1 Serial Communication Module

Description

Technical Specifications

• Product Type: Serial Communication Expansion Module
• Compatible Platforms: ABB AC 800M series controllers, CI853/CI854 communication interface racks
• Interface Types:
  • Serial: RS-232C, RS-422, RS-485
  • Fieldbus: PROFIBUS DP-V0/V1, DeviceNet, CANopen
• Supported Protocols: MODBUS RTU (Master/Slave), MODBUS ASCII, DF1, DH485, PROFIBUS DP
• Data Transfer Rates:
  • Serial: 9.6 kbps to 115.2 kbps (software configurable)
  • Fieldbus: Up to 12 Mbps (PROFIBUS DP)
• Connectors:
  • Serial: 9-pin D-Sub, screw terminal blocks
  • Fieldbus: D-Sub connectors, terminal blocks
• Power Supply: Backplane-powered (5V DC / 24V DC) from the controller rack
• Physical Dimensions: Standard 19-inch rack-mounted module, 100mm (W) x 150mm (H) x 60mm (D)
• Weight: Approximately 0.45 kg
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5–95% RH, non-condensing
• Isolation: 2.5 kV galvanic isolation between communication interfaces and backplane
• EMC Compliance: IEC 61000-6-2, IEC 61000-6-4, CE, UL
• Indicators: Multi-color LED indicators for power, communication status, and fault diagnostics

Key Features

Versatile Protocol & Interface Support

• Multi-Interface Design: Integrates RS-232, RS-422, and RS-485 serial ports plus fieldbus interfaces, delivering extensive connectivity options.
• Wide Protocol Compatibility: Supports mainstream industrial protocols including MODBUS RTU/ASCII, DF1, and PROFIBUS DP, ensuring compatibility with numerous legacy and modern devices.
• Flexible Configuration: All parameters such as baud rate, data bits, parity, and protocol mode are software-configurable for tailored communication setups.

Seamless System Integration

• Plug-and-Play Installation: Directly inserts into ABB controller expansion slots, with automatic backplane recognition and power sourcing.
• High-Speed Backplane Communication: Utilizes high-speed parallel bus for efficient data exchange between the module and the main controller, minimizing latency.
• Transparent Operation: Functions transparently to the control system, requiring no complex programming for basic communication tasks.
• Wide Device Compatibility: Connects ABB controllers to PLCs, HMIs, variable frequency drives, instruments, meters, and sensors from various manufacturers.

Industrial-Grade Reliability

• Full Galvanic Isolation: 2.5 kV electrical isolation protects against ground loops, electrical noise, and voltage transients in harsh industrial environments.
• Robust Construction: Industrial-grade components and PCB design withstand vibration, dust, and temperature fluctuations.
• Comprehensive Protection: Built-in over-voltage, over-current, and ESD protection safeguards the module and connected equipment.
• Diagnostic LED Indicators: Real-time LED status display for power, data transmission, and fault conditions to enable quick on-site troubleshooting.

Advanced Communication Performance

• High-Speed Data Transfer: Supports fast baud rates and fieldbus speeds for efficient real-time data acquisition and control command transmission.
• Multi-Device Networking: RS-485 interface enables multi-drop network topology, connecting up to 32 devices on a single bus.
• Data Buffering: Integrated data buffers ensure reliable data transmission and prevent data loss during high-traffic communication periods.
• Error Handling: Automatic error detection and retransmission mechanisms maintain data integrity in electrically noisy environments.

Application Scenarios

• Process Automation (Chemical, Oil & Gas, Pharmaceutical):
  • Connects AC 800M controllers to field instruments like flow meters, pressure transmitters, and analytical sensors using MODBUS RTU.
  • Integrates with third-party PLC systems and valve actuators for unified process control.
  • Enables communication with legacy distributed control systems (DCS) during plant modernization.
• Manufacturing & Production Automation:
  • Links controllers to robotics, conveyor systems, and packaging machinery for coordinated production line control.
  • Connects to barcode scanners, vision systems, and industrial printers for real-time data exchange.
  • Facilitates communication between assembly line workcells and central control systems.
• Power Generation & Distribution:
  • Interfaces with protective relays, power meters, and switchgear monitoring devices in substations.
  • Collects operational data from generators, turbines, and auxiliary equipment in power plants.
  • Supports grid monitoring and control through communication with SCADA systems.
• Water & Wastewater Treatment:
  • Connects to pump and valve controllers, level sensors, and water quality analyzers.
  • Enables remote monitoring and control of treatment processes in remote pumping stations.
  • Integrates with SCADA systems for centralized management of water distribution networks.
• Mining & Metals Processing:
  • Provides communication links to heavy-duty equipment like crushers, mills, and conveyors.
  • Connects to monitoring systems for ore processing and material handling equipment.
  • Ensures reliable data transmission in electrically noisy and high-vibration mining environments.
• HVAC & Building Automation:
  • Integrates with building management systems (BMS) to control chillers, pumps, and air handling units.
  • Connects to temperature controllers, energy meters, and ventilation equipment.
  • Facilitates energy management system integration for optimized building efficiency.
• Marine & Offshore Applications:
  • Provides reliable communication for ship automation systems, propulsion controls, and auxiliary machinery.
  • Connects to navigation equipment, tank level monitors, and safety systems on commercial vessels.
  • Operates reliably in high-humidity, high-vibration marine environments.
