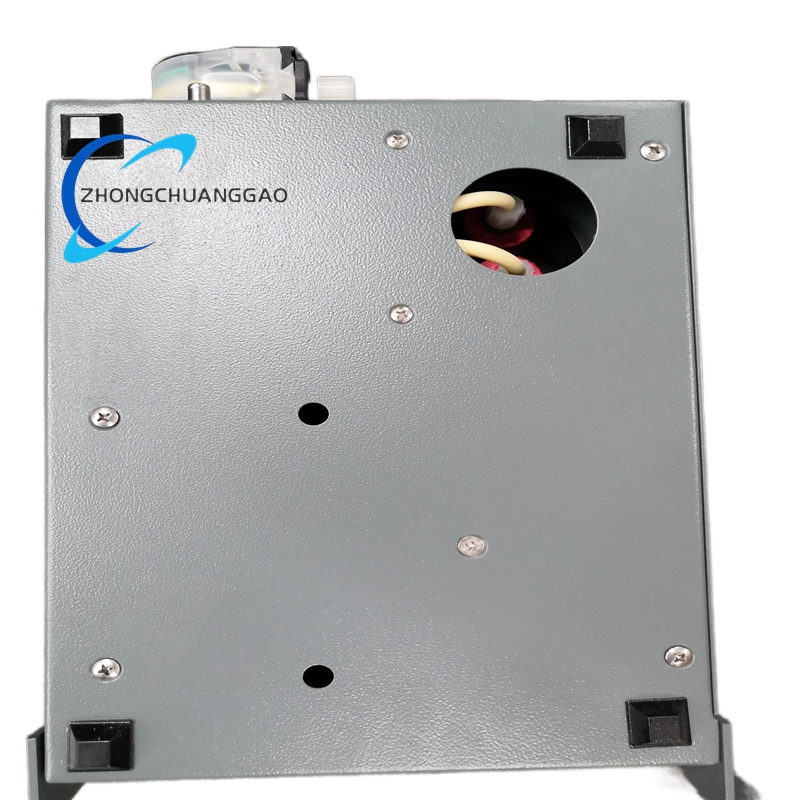

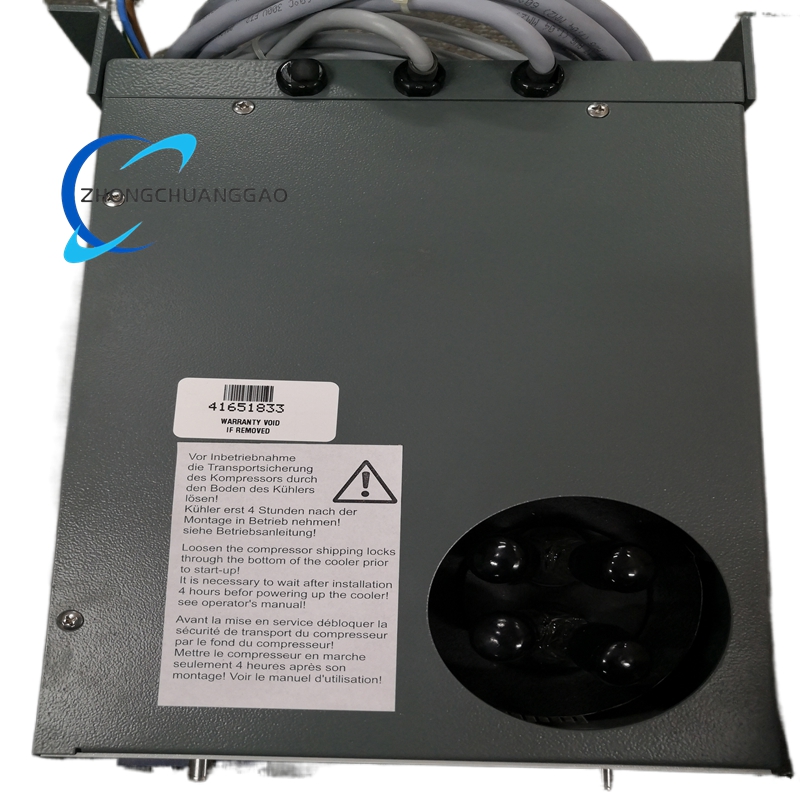

ABB SCC-C 23070-0-10310110 Compressor-Type Sample Gas Cooler

Description

Technical Specifications

• Product Type
  • Compressor-Type Sample Gas Cooler
• Cooling Performance
  • Target Outlet Dew Point: Factory set at +3 °C to +5 °C, adjustable from +1 °C to +15 °C
  • Dew Point Stability: ±0.3 °C under varying ambient temperatures or gas flow rates
  • Cooling Capacity: Efficiently cools gas flows up to 2 x 125 L/h (dual path) or 1 x 250 L/h (single path)
• Gas Path Configuration
  • Number of Gas Paths: Configurable for 1 or 2 independent sample gas paths
  • Heat Exchanger Material: Available in glass, PVDF, or stainless steel (tool-free exchangeable)
  • Gas Line Material: Corrosion-resistant, chemically compatible with aggressive process gases
  • Maximum Operating Pressure: 1 MPa (10 bar)
• Power Supply
  • Input Voltage: 115 V AC / 230 V AC, auto-switchingeero
  • Frequency: 50/60 Hzeero
  • Power Consumption: Maximum 185 VA during operationeero
• Physical & Mechanical Data
  • Form Factor: Compact, 1/2 19″ rack-mountable unit (6 HU)
  • Dimensions (W x H x D): 266 mm x 302 mm x 300 mm
  • Mounting: Supports 19″ rack installation or wall mounting
  • Weight: Approximately 8.5 kg
  • Protection Class: IP20 (for indoor, cabinet-mounted use)
• Environmental Ratings
  • Operating Temperature: +5 °C to +45 °Ceero
  • Storage Temperature: -25 °C to +60 °Ceero
  • Relative Humidity: ≤ 75% RH (annual average), up to 90% RH for short periods (non-condensing)eero
  • Vibration Resistance: Complies with EN 60068-2-6eero
  • Shock Resistance: Complies with EN 60068-2-27eero
• Safety & Compliance
  • Integrated Safety: Over-temperature protection, compressor overload protection
  • Certifications: CE, UL, cUL
  • Material Compliance: RoHS compliant

Key Features

• Precision Dew Point Control
  • Active Thermal Regulation: Utilizes a closed-loop temperature controller to maintain an ultra-stable outlet dew point, critical for accurate gas analysis.
  • Anti-Freeze Protection: Prevents heat exchanger freezing with a minimum set-point limit of +1 °C.
  • Compressor Technology: High-efficiency, hermetic refrigerant compressor ensures reliable and consistent cooling performance.
• Advanced Design & Durability
  • Tool-Free Maintenance: Heat exchangers are easily replaceable without tools, reducing service time.
  • Corrosion Resistance: Constructed with high-grade, chemical-resistant materials for compatibility with harsh, acidic, or corrosive sample gases.
  • Condensate Management: Integrated peristaltic pump for automatic and reliable removal of separated condensate.
• Operational Reliability
  • Continuous Operation: Designed for 24/7 uninterrupted operation in industrial process environments.
  • Wide Ambient Compatibility: Maintains performance in high-temperature environments up to +45 °Ceero.
  • Status Monitoring: Built-in temperature display and alarm contacts for real-time status and fault indication.
• System Integration
  • Modular Compatibility: Fully interoperable with the ABB SCC-F sample gas feed unit for a complete sample handling system.
  • Alarm Interface: Provides potential-free contact for remote temperature alarm signaling to PLC or SCADA systems.
  • Compact Footprint: Space-saving design ideal for integration into standard analysis cabinets.

Application Scenarios

• Continuous Emissions Monitoring (CEMS)
  • Power Plants: Cooling flue gas samples from boilers and incinerators for SO₂, NOₓ, CO, and dust measurement.
  • Waste Incineration: Conditioning aggressive, high-humidity exhaust gases for emissions compliance monitoring.
  • Industrial Boilers: Ensuring dry, stable sample gas for accurate combustion efficiency analysis.
• Process Gas Analysis
  • Chemical & Petrochemical Plants: Conditioning process gases for monitoring reactor efficiency and product quality.
  • Metallurgy & Cement: Cooling high-temperature, dusty kiln and furnace off-gases.
  • Mining & Mineral Processing: Treating gas samples from smelting and refining operations.
• Oil & Gas Industry
  • Natural Gas Processing: Drying and stabilizing natural gas samples for composition analysis (methane, ethane, impurities).
  • Refineries: Conditioning samples from distillation and cracking units.
• Environmental & Research Facilities
  • Air Quality Monitoring Stations: Preparing ambient air samples for pollutant analysis.
  • Laboratories & Test Rigs: Providing precise gas conditioning for analytical research and product testing.
• Wastewater & Biogas
  • Biogas Plants: Cooling and drying biogas (methane, CO₂) for energy content and impurity analysis.
  • Wastewater Treatment: Monitoring digester and odor control exhaust gases.
