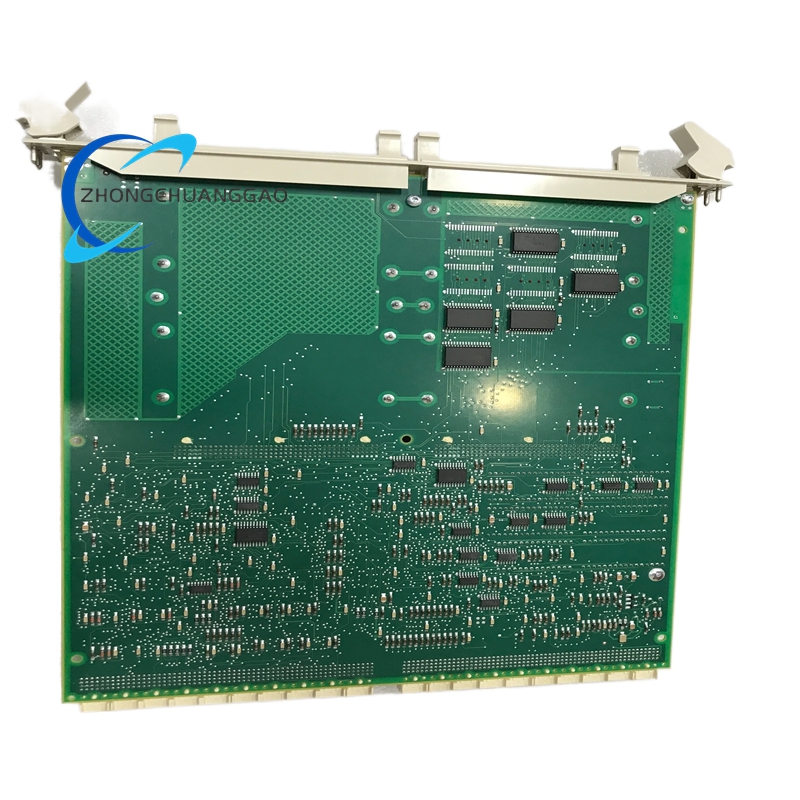

ABB SC560 3BSE008105R1 Processor Module/Submodule Carrier with Local CPU

Description

Basic System Parameters

• Product Series: Advant Controller / Advant OCS
• Module Type: Processor Module / Submodule Carrier with Local CPU
• CPU Performance: High-speed 32-bit RISC processor, 0.1 ms instruction execution time for critical tasks
• Memory: 256 KB RAM (expandable), 512 KB non-volatile flash memory for program and data storage
• Input Voltage: 24 V DC (internal system power supply)
• Power Consumption: Max. 15 W
• Dimensions: 288 mm (D) × 22.5 mm (H) × 486 mm (W)
• Weight: Approximately 0.76 kg
• Mounting: Rack-mountable (standard Advant OCS chassis)
• Protection Class: IP20 (front panel)

I/O & Submodule Capabilities

• Submodule Slots: Supports up to 8 plug-in submodules (digital I/O, analog I/O, counter, communication submodules)
• Digital I/O Capacity: Up to 16 digital input channels, 16 digital output channels (configurable)
• Analog I/O Capacity: Supports high-resolution analog input/output submodules (configurable for voltage/current signals)
• I/O Expansion: Max. 256 I/O points via local expansion; up to 384 I/O points via CC-Link remote I/O
• Signal Isolation: Full galvanic isolation (2500 V rms) between I/O channels and CPU logic

Communication Specifications

• Built-in Interfaces: Ethernet (10/100 Mbps), RS485 (Modbus RTU)
• Supported Protocols: Profibus DP, Modbus RTU, TCP/IP, ABB proprietary bus protocols
• Data Transfer Rate: Up to 12 Mbps (fieldbus), 100 Mbps (Ethernet)
• Dual Redundant Communication: Supports redundant network configurations for enhanced reliability

Environmental & Reliability Specifications

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -50°C to +85°C
• Relative Humidity: 5–95% (non-condensing)
• Vibration Resistance: 10–2000 Hz, 2 g (IEC 60068-2-6)
• Shock Resistance: 20 g, 11 ms (IEC 60068-2-27)
• EMC Compliance: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (emission standards)

Certifications & Compliance

• Safety Certifications: CE, UL, CSA
• Functional Safety: IEC 61508 SIL 2 compatible
• Programming Standard: IEC 61131-2
• Environmental Compliance: RoHS, REACH

Key Functional Features

High-Speed Processing & Control

• 32-Bit RISC CPU: Delivers fast execution of complex logic, sequential, and PID control algorithms
• Real-Time Operation: Sub-millisecond task processing for time-critical industrial processes
• Multi-Tasking: Supports simultaneous execution of up to 32 independent control tasks
• Precision Timing: 1 ms resolution for sequence control and event triggering

Versatile I/O & Submodule Integration

• Modular Submodule Design: Hot-swappable submodules for digital, analog, and special functions
• Flexible Signal Compatibility: Accepts 4–20 mA, 0–10 V, thermocouple, RTD, and dry contact signals
• Isolated I/O Channels: Full galvanic isolation eliminates ground loops and enhances noise immunity
• Distributed I/O Support: Seamless connection to remote I/O stations over fieldbuses

Advanced Communication Capabilities

• Multi-Protocol Support: Native compatibility with major industrial fieldbuses and Ethernet protocols
• Redundant Networks: Dual communication interfaces for fault-tolerant system design
• Data Exchange: Real-time cyclic and acyclic data transfer with PLCs, SCADA, and HMI systems
• Diagnostic Communication: Transmits detailed module, I/O, and process diagnostics to upper-level systems

Comprehensive Programming & Configuration

• IEC 61131-2 Languages: Supports ladder logic, function block diagram (FBD), structured text (ST), instruction list (IL)
• Offline/Online Programming: Full program editing, monitoring, and debugging during operation
• Parameter Configuration: Intuitive software tools for I/O setup, control tuning, and communication parameters
• Program Backup: Non-volatile memory storage and easy transfer via memory card or network

Built-In Diagnostics & Reliability

• Module Self-Diagnostics: Continuous monitoring of CPU, memory, power, and communication circuits
• Channel-Level Diagnostics: Per-channel signal monitoring, fault detection, and status indication
• LED Status Indicators: Power, run, fault, communication, and I/O status LEDs for quick visual inspection
• Fault Logging: Non-volatile storage of up to 100 fault events with timestamps for troubleshooting
• Hot-Swappable Design: Submodules replaceable without system shutdown, minimizing downtime

Industrial-Grade Durability

• Conformal Coated PCB: Protects against dust, moisture, chemicals, and corrosive atmospheres
• Wide Temperature Range: Operates reliably in extreme industrial temperature environments
• High Shock/Vibration Resistance: Rugged construction for heavy industrial and mobile applications
• Long-Life Components: Industrial-grade electronics for minimum 100,000 hours MTBF

Application Scenarios

Distributed Control Systems (DCS)

• Advant OCS Platforms: Core processor for Advant Controller-based DCS in process industries
• Process Automation: Sequential and closed-loop control for continuous manufacturing processes
• Batch Processing: Precise recipe management and sequence control for chemical, pharmaceutical batches
• Redundant Control Systems: Dual SC560 configuration for 24/7 mission-critical operations

Power Generation & Transmission

• Thermal Power Plants: Boiler control, turbine governing, and auxiliary system control
• Hydroelectric Facilities: Dam gate control, turbine speed regulation, and excitation control
• Wind/Solar Energy: Inverter control, grid synchronization, and power management systems
• Substation Automation: Protection relay control, breaker management, and SCADA integration

Oil & Gas Industry

• Upstream Drilling: Wellhead control, mud circulation, and blowout prevention systems
• Refining & Petrochemicals: Distillation, cracking, and reactor process control
• Offshore Platforms: Topsides process control, utility systems, and safety shutdown
• LNG Terminals: Liquefaction, storage, and regasification process automation

Chemical & Pharmaceutical Manufacturing

• Chemical Processing: Reactor control, material blending, and pressure/temperature regulation
• Pharmaceutical Production: Cleanroom process control, batch formulation, and GMP compliance
• Specialty Chemicals: Precise dosing, reaction control, and product quality monitoring

Mining & Mineral Processing

• Mineral Processing: Crusher, mill, flotation cell, and filter press control
• Metal Refining: Smelting, casting, and rolling mill automation
• Bulk Material Handling: Conveyor, stacker/reclaimer, and loading system control

Water & Wastewater Treatment

• Water Treatment Plants: Pump control, filtration, disinfection, and distribution systems
• Wastewater Facilities: Aeration, sludge digestion, and odor control automation
• Desalination Plants: High-pressure pump, membrane, and brine disposal control

Manufacturing & Automotive

• Automotive Assembly: Assembly line sequencing, robotic cell control, and material handling
• Food & Beverage: Processing, packaging, bottling, and pasteurization lines
• Plastics & Rubber: Extrusion, injection molding, and calendering machine control
• Textile Manufacturing: Spinning, weaving, and dyeing process automation

Marine & Offshore

• Ship Propulsion: Main engine control, propulsion speed regulation, and dynamic positioning
• Deck Machinery: Crane, winch, and mooring system control
• Offshore Vessels: Cargo handling, stability control, and safety system automation
