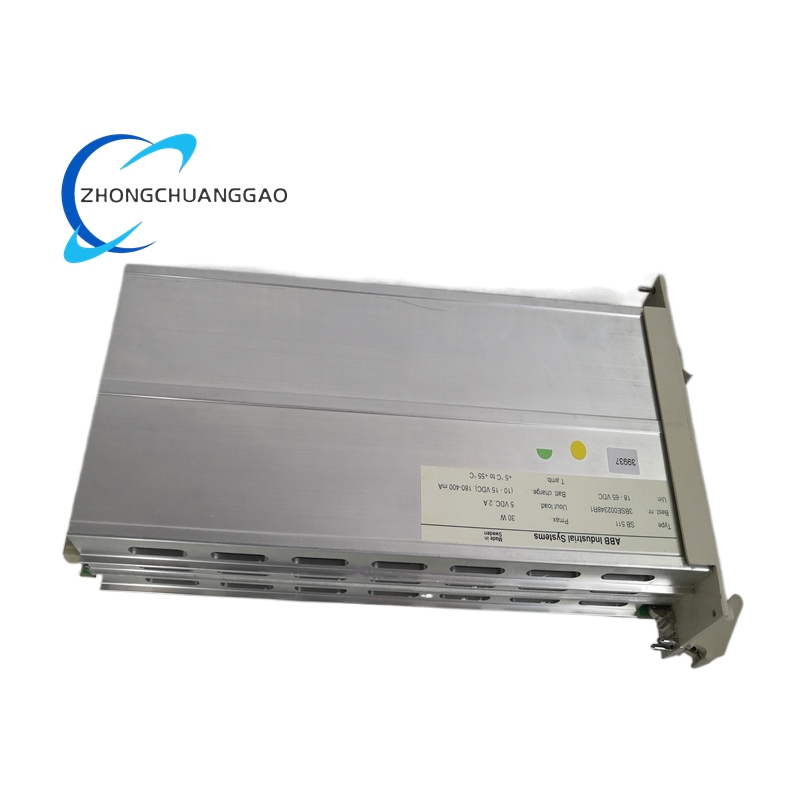

ABB SB511 Backup Power Supply Module

Description

Technical Specifications

• Product Type: Backup Power Supply Module
• Primary Function: Battery charging and uninterruptible backup power provision
• Input Voltage Range: 24 – 48 V DCABB Group
• Battery Compatibility: Specifically designed for 12 V DC, 4 Ah NiCd batteriesABB Group
• Output Voltage: 24 V DC regulated backup output
• Protection Circuits: Overload protection, short-circuit protection, over-voltage protection
• Physical Dimensions: 291 mm (Depth) × 150 mm (Height) × 60 mm (Width)ABB Group
• Net Weight: 0.96 kgABB Group
• Mounting: Standard rack mounting for DCS system subracks
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5 – 95% RH, non-condensing
• EMC Compliance: Conforms to IEC/EN 61000-6-2 (industrial immunity) and IEC/EN 61000-6-4 (emission) standards
• Certifications: CE, UL, CSA
• RoHS Compliance: Exempted from the scope of EU Directive 2011/65/EU (RoHS)ABB Group
• Spare Fuse: Compatible with 3BSC770001R50 replacement fuseABB Group

Key Features

Reliable Backup Power Provision

• Dedicated Battery Charging: Provides precise, constant charging for a 12 V, 4 Ah NiCd battery, maintaining optimal charge levels for instant readinessABB Group.
• Instantaneous Failover: Automatically switches to battery backup power within milliseconds upon detecting a primary power failure, ensuring zero interruption to critical control functions.
• Continuous Power Support: Delivers regulated 24 V DC output to sustain essential system components, including controller memory, real-time clocks, and communication interfaces during outages.

Advanced Protection & Safety

• Multi-Level Protection: Integrates built-in overload, short-circuit, and over-voltage protection circuits to safeguard the module, connected battery, and host DCS system from electrical faults.
• Galvanic Isolation: Features full electrical isolation between input, output, and battery circuits, preventing ground loops and electrical interference that could compromise system stability.
• Diagnostic Indicators: Equipped with LED status indicators to visibly display power status, active charging mode, battery health, and fault conditions for quick on-site assessment.

Industrial-Grade Durability

• Robust Construction: Built with high-grade industrial components to withstand harsh plant conditions, including temperature fluctuations, vibration, and electrical noise.
• Wide Environmental Range: Operates reliably within a temperature spectrum of 0°C to +55°C, suitable for diverse industrial facilities.
• Long-Term Stability: Designed for continuous, 24/7 operation with minimal maintenance, ensuring long service life and consistent performance.

Seamless System Integration

• Plug-and-Play Compatibility: Directly integrates into ABB Advant Master and Symphony DCS system racks, requiring no external adapters or complex configuration.
• Transparent Operation: Functions transparently to the control system, requiring no user programming or intervention during normal operation or power failover.
• Modular Design: Compact, standardized form factor allows for easy installation, replacement, and hot-swapping in existing DCS configurations without full system shutdown.

Application Scenarios

• Process Automation (Oil & Gas, Chemical, Pharmaceutical):
  • Provides backup power for DCS controllers in continuous process plants, preventing data loss and process disruption during power dips or outages.
  • Safeguards critical control algorithms, setpoints, and historical data in refineries, chemical processing units, and pharmaceutical manufacturing lines.
• Power Generation & Distribution:
  • Ensures uninterrupted operation of turbine control systems, boiler management, and substation automation controllers within power plants.
  • Maintains vital monitoring and control functions for grid stability equipment during temporary power supply failures.
• Mining & Metals Processing:
  • Supports DCS systems controlling crushers, mills, and conveyors in harsh mining environments, avoiding costly unplanned downtime.
  • Preserves operational parameters and safety interlock logic in smelters and rolling mills during electrical disturbances.
• Water & Wastewater Treatment:
  • Sustains SCADA and control system operations for pump stations, filter systems, and water distribution networks.
  • Prevents process reset and data loss in remote treatment facilities during main power interruptions.
• Marine & Offshore Installations:
  • Provides backup power for dynamic positioning and vessel automation systems on commercial ships and offshore rigs.
• Manufacturing & Automotive Assembly:
  • Protects PLC and DCS controlled assembly lines, robotic workcells, and material handling systems from power failure-induced crashes.
  • Ensures maintenance of production schedules and quality control data by sustaining control system integrity.
