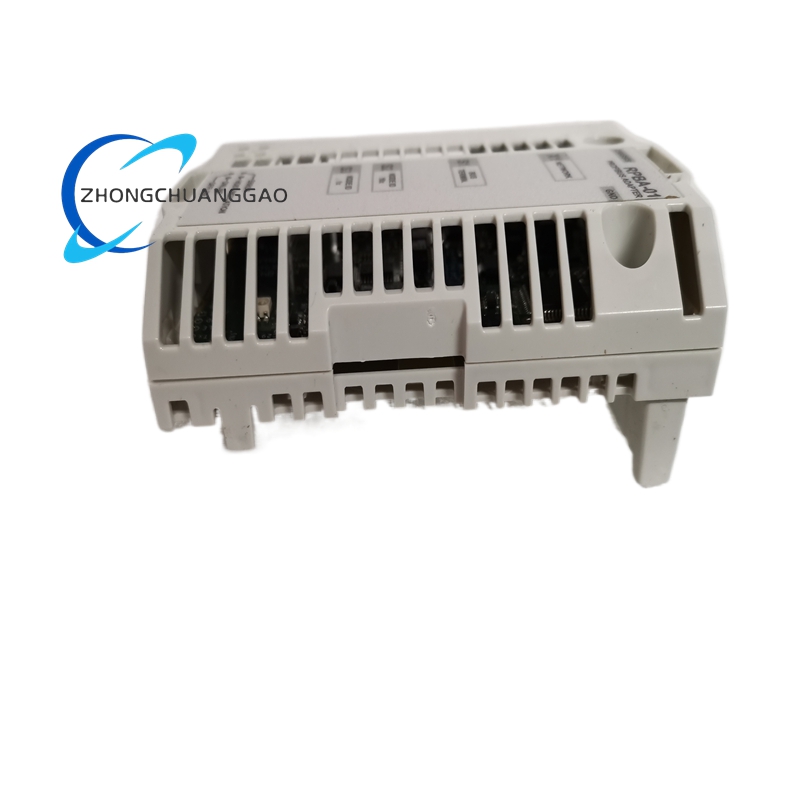

ABB RPBA-01 PROFIBUS DP Communication Adapter Module

Description

Technical Specifications

Core Communication Parameters

• Supported Protocols: PROFIBUS DP-V0, PROFIBUS DP-V1 (IEC 61158 compliant)
• Data Transmission Rate: 9.6 kbps to 12 Mbps (auto-negotiated)
• Node Address Range: 0 to 125 (configured via DIP switches or drive parameters)
• I/O Data Length: Max. 244 bytes input, max. 244 bytes output
• Supported PPO Types: PPO1, PPO2, PPO3, PPO4, PPO5, PPO6ABB Group
• Bus Interface: 9-pin D-Sub (female) PROFIBUS connector

Electrical Specifications

• Power Supply: Internal drive supply (5 V DC typical, 24 V DC compatible)
• Power Consumption: < 3 W (typical operation)
• Isolation: Galvanic isolation between control and bus circuits for noise immunity
• EMC Compliance: EN 61800-3 (industrial electromagnetic compatibility)

Physical & Environmental Specifications

• Mounting: Plug-in installation into drive control unit optional slot
• Dimensions: 165 mm × 115 mm × 50 mm
• Weight: Approximately 200 g
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5–95% non-condensing
• Protection Class: IP20 (module front)
• Certifications: CE, UL, IEC 61158, PROFIBUS certified

System Compatibility

• Compatible Drive Series: ACS550, ACH550, ACS800, ACS880, ACQ580
• Master System Compatibility: All standard PROFIBUS DP masters (Siemens SIMATIC S7, Beckhoff, etc.)
• Configuration Tools: ABB Drive composer, SIMATIC PDM, GSD file integration for master station setupABB Group

Key Functional Features

Comprehensive Drive Control

• Control Commands: Local/remote start/stop, run enable, fault reset, and direction controleero
• Reference Adjustment: Speed/torque reference input, process value setpoint for PID controleero
• Mode Switching: Seamless transition between manual, automatic, and local control modes
• Parameter Management: Read/write access to all drive parameters (e.g., speed limits, acceleration times)eero

Real-Time Data Monitoring

• Actual Value Feedback: Phase current, DC bus voltage, output frequency, motor speed, torque, and powereero
• Status Monitoring: Drive operating mode, fault status, warning signals, and I/O state indicationeero
• Fault Diagnosis: Real-time fault code transmission, alarm logging, and troubleshooting support
• Cycle Data Exchange: Deterministic cyclic communication for critical process data (DP-V0)

Advanced Communication Capabilities

• DP-V1 Support: Acyclic data exchange for parameter upload/download, event reporting, and diagnostic data transmissionABB Group
• Auto Telegram Detection: Automatic identification of PPO types to optimize data transfer efficiencyABB Group
• High-Speed Data Rate: Up to 12 Mbps for rapid response in high-dynamic drive applications
• Bus Master-Slave Operation: Acts as a PROFIBUS slave device, enabling centralized control by the master systemeero

System Integration & Reliability

• Plug-and-Play Installation: Direct slot mounting with internal bus connection, no external wiring required
• Seamless Profile Support: Compliant with PROFIdrive and ABB drive profiles for standardized integrationABB Group
• Status Indicators: LED indicators for power, network activity, and fault status for easy diagnostics
• Self-Diagnostics: Internal monitoring of communication health, with fault indication and error reporting
• Robust Design: Industrial-grade components and EMC protection for reliable operation in harsh environments

Application Scenarios

Industrial Drive Automation

• Variable Speed Drives: Speed/torque control of conveyors, pumps, fans, and compressors in manufacturing plants
• Process Control: Integration with PLC systems for closed-loop control of temperature, pressure, and flow processes
• Material Handling: Conveyor systems, cranes, and hoists requiring precise speed regulation and status feedback

Manufacturing & Processing

• Automotive Production: Robotic arms, assembly line drives, and paint shop systems with high-speed communication
• Food & Beverage: Mixers, extruders, and filling machines requiring reliable PROFIBUS connectivity
• Plastics & Rubber: Extrusion lines, injection molding machines, and calenders for process consistency

Oil & Gas Industry

• Refineries: Pump and compressor drives in process units with long-distance communication needs
• Offshore Platforms: Hazardous-area rated drives for drilling, production, and utility systems
• Pipelines: Pipeline booster stations and metering systems with deterministic control requirements

Power & Energy

• Power Plants: Boiler feed pumps, cooling fans, and auxiliary drives with high-reliability communication
• Renewable Energy: Wind turbine pitch control, solar inverter systems, and hydroelectric plant auxiliaries
• Grid Support: Static frequency converters and reactive power compensation systems

Water & Wastewater

• Water Treatment Plants: Pump drives for water supply, filtration, and distribution systems
• Wastewater Facilities: Aeration blowers, sludge pumps, and dewatering systems with continuous monitoring
• Desalination Plants: High-pressure feed pumps and circulation systems for seawater desalination

Mining & Minerals

• Mining Operations: Crusher, mill, and conveyor drives for bulk material processing
• Underground Mining: Flameproof-rated drives with PROFIBUS connectivity for hazardous environments
• Mineral Processing: Flotation cells, thickeners, and filter presses with precise control requirements

Marine & Offshore

• Shipboard Systems: Propulsion drives, thrusters, and deck machinery (winches, cranes)
• Offshore Vessels: Dynamic positioning systems and cargo handling equipment with robust communication
• Naval Applications: Military vessel drives for propulsion and auxiliary systems
