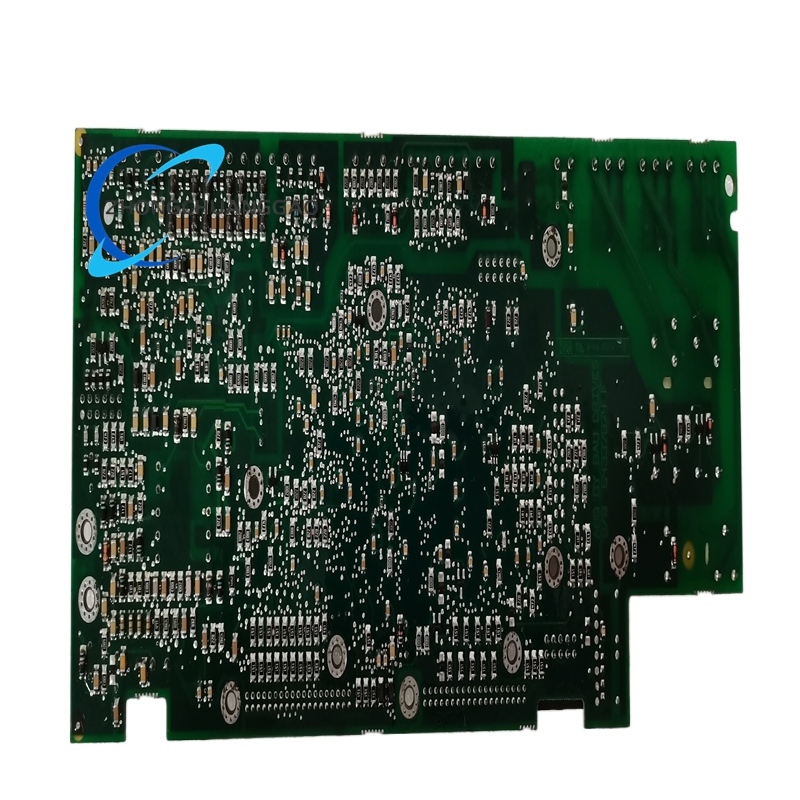

ABB RMIO-01C-Y RMIO-01C-Y Drive Control Board

Description

Technical Specifications

• Processor: 32-bit high-speed microcontroller
• Power Supply: 24 V DC (±10%, short-circuit protected), internally powered by the drive
• Digital Inputs: 8 isolated inputs (24 V DC logic)
• Digital Outputs: 6 relay outputs (250 V AC, 3 A resistive)
• Analog Inputs: 4 channels (0–10 V DC / 4–20 mA, configurable)
• Analog Outputs: 2 channels (0–10 V DC / 4–20 mA, configurable)
• Communication Interfaces:
  • DDCS (Distributed Drive Communication System) fiber optic link
  • RS-232 (local configuration)
  • RS-485 (fieldbus expansion)
  • Optional plug-in modules: Profibus DP, DeviceNet, Ethernet/IP
• Operating Temperature: 0°C to +50°C (32°F to +122°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Humidity: 5%–95% (non-condensing)
• Dimensions (H×W×D): 240 mm × 100 mm × 10 mm (9.4 in × 3.9 in × 0.4 in)
• Weight: 0.26 kg (0.57 lbs)
• Certifications: CE, UL, CSA
• Coating: Conformal acrylic coating (RMIO-01C-Y variant)

Key Features

1. Central Drive Control: Executes closed-loop speed/torque control for ACS800 drives, supporting both scalar and vector control modes。
2. Conformal Coating Protection: The RMIO-01C-Y variant features full PCB conformal coating, resisting dust, moisture, and corrosive gases in harsh industrial environments。
3. Flexible I/O Configuration: Provides 8 digital inputs, 6 relay outputs, 4 analog inputs, and 2 analog outputs, fully configurable via drive parameters。
4. High-Speed Fiber Optic Communication: Integrates DDCS fiber optic interface for deterministic, noise-immune communication between drives and controllers。
5. Fieldbus Expansion Ready: Supports plug-in communication modules for seamless integration with Profibus, DeviceNet, and Ethernet/IP industrial networks。
6. Real-Time Monitoring & Diagnostics: Captures drive operating data (current, voltage, temperature) and fault codes for predictive maintenance and troubleshooting。
7. Compact & Durable Design: Compact form factor enables easy installation in ACS800 drive cabinets; robust components ensure long-term reliability。
8. Parameter Storage & Backup: Stores drive configuration parameters in non-volatile memory; supports parameter upload/download via RS-232。
9. Overload & Fault Protection: Monitors drive and motor conditions to trigger protective actions (e.g., overcurrent, overtemperature, ground fault)。
10. Hot-Swappable Compatibility: Designed for easy replacement in ACS800 drives without system-wide shutdown, minimizing maintenance downtime。

Application Scenarios

• Industrial Motor Control: Deployed in manufacturing plants, steel mills, and paper mills for precise speed/torque control of AC motors (pumps, fans, conveyors).
• Process Automation: Used in chemical, pharmaceutical, and food processing industries to regulate motor-driven equipment in harsh, corrosive environments.
• HVAC Systems: Applied in large commercial buildings and data centers for energy-efficient control of ventilation fans and water pumps.
• Mining & Material Handling: Utilized in mining operations and port facilities to control heavy-duty conveyors, cranes, and hoists in dusty, humid conditions.
• Renewable Energy: Deployed in wind turbines and solar power plants to control grid-tie inverters and auxiliary motors, ensuring stable power generation.
