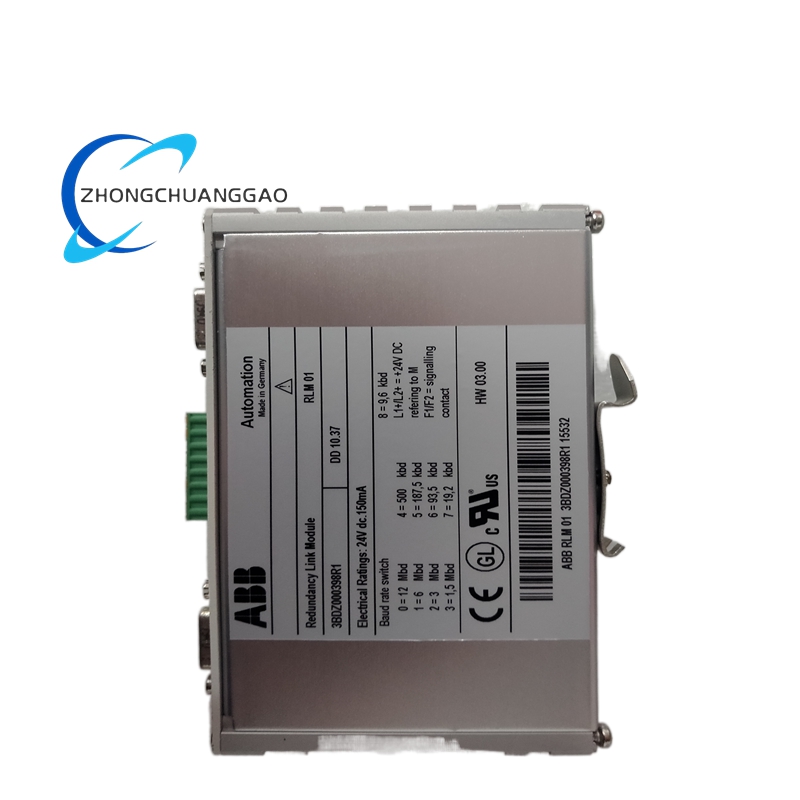

ABB RLM01 3BDZ00398R1 PROFIBUS Redundancy Link Module

Description

Technical Specifications

• Product Type: PROFIBUS DP Redundancy Link Module
• Supported Protocol: PROFIBUS DP V0/V1 (compliant with EN 50170 standard)
• Port Configuration:
  • 1 x PROFIBUS DP master port (M, non-redundant side)
  • 2 x PROFIBUS DP slave ports (A and B, redundant side)
• Communication Speed: Auto-adaptive, 9.6 kbps to 12 Mbps
• Network Capacity: Supports up to 31 PROFIBUS DP stations per segment
• Power Supply:
  • Input: 24 V DC (20–33 V DC)
  • Power Consumption: Typical 150 mA at 24 V DC
• Physical Characteristics:
  • Dimensions: 134 mm (W) × 56 mm (H) × 70 mm (D)
  • Weight: Approx. 0.33–0.46 kg

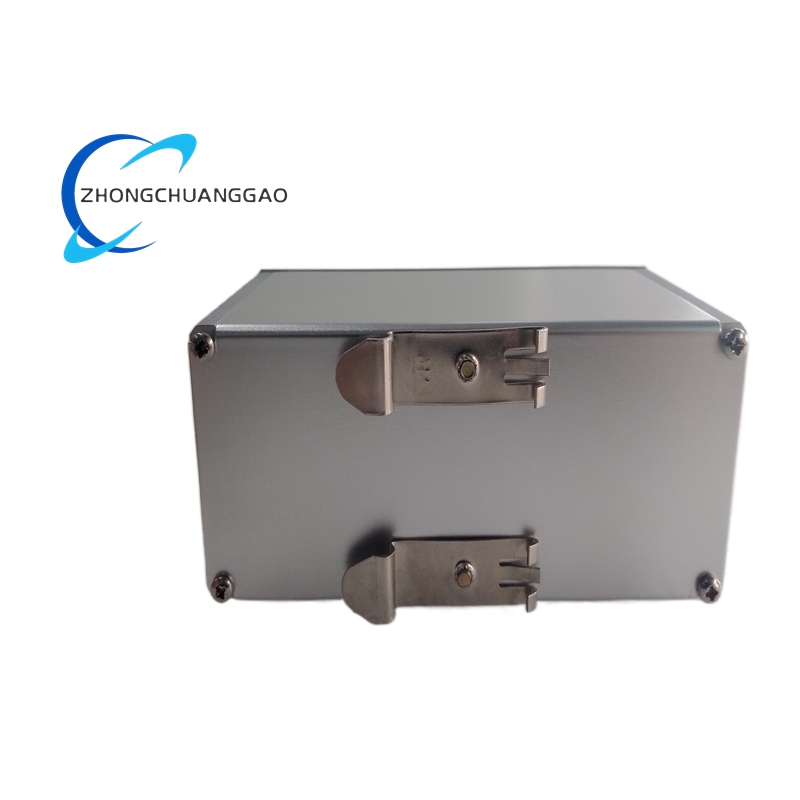

  • Mounting: DIN rail (EN 50022 standard)
  • Enclosure: Rugged industrial plastic
  • Protection Class: IP20
• Environmental Ratings:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5–95% non-condensing
  • EMC Compliance: IEC/EN 61000-6-2, IEC/EN 61000-6-4
• Diagnostics Interface: 8-pin terminal strip for diagnostic signals
• Certifications: CE, UL, CSA, Germanischer Lloyd (marine)

Key Features

Advanced Redundancy Management

• 1:1 Line Redundancy: Establishes two fully independent PROFIBUS lines. The module actively monitors both links and automatically switches traffic to the healthy line within 100 ms upon detecting a failure on the primary line, with zero data loss.
• Transparent Operation: Requires no configuration within the PROFIBUS network; no slave address assignment needed. It appears as a passive component to the master and slaves.
• Signal Repeater Function: Regenerates and amplifies the PROFIBUS signal, extending the maximum network segment length and preserving signal integrity over long cable runs.

Comprehensive Diagnostics & Monitoring

• Front-panel LED Indicators: Multi-color LEDs display real-time status for power, communication activity on all three lines (M, A, B), and specific fault conditions.
• Potential-free Signaling Contact: Provides a remote alarm output for external fault indication systems.
• Diagnostic Data Output: Detailed status messages accessible via the 8-pin terminal strip for integration into system SCADA for predictive maintenance.
• Power Supply Monitoring: Continuously supervises the 24 V DC input and triggers alarms for under-voltage conditions.

Industrial-grade Reliability

• Wide Operating Temperature: Performs reliably in extreme industrial environments from -20°C to +60°C.
• Galvanic Isolation: Full electrical isolation between the three PROFIBUS ports and the power supply, protecting against ground loops and electrical interference.
• Marine Certification: Germanischer Lloyd approval enables deployment in marine and offshore applications.
• Hot-swappable Design: Allows for replacement or maintenance without shutting down the entire network, minimizing system downtime.

Easy Integration & Flexibility

• Plug-and-play Installation: Simple DIN-rail mounting and screw terminal connections for quick commissioning.
• Universal Compatibility: Fully compatible with all standard PROFIBUS DP masters and slaves. Ideal for upgrading single-port field devices into a redundant network architecture.
• Flexible Network Topology: Can be installed adjacent to the master, before a segment of slaves, or directly in front of an individual critical slave device.

Application Scenarios

• Process Automation (Oil & Gas, Chemical, Pharmaceutical):
  • Ensures uninterrupted communication in continuous process plants where downtime poses significant safety and financial risks.
  • Connects critical field transmitters, control valves, and analyzers to redundant DCS controllers (e.g., ABB 800xA) in refineries and chemical plants.
• Power Generation & Distribution:
  • Provides redundant communication links for turbine control, boiler management, and substation automation systems.
  • Secures data exchange between PLCs and I/O modules in power plants, preventing communication failures that could lead to blackouts.
• Mining & Metals:
  • Operates reliably in harsh, dusty, and high-vibration environments of mines, smelters, and rolling mills.
  • Maintains control communication for conveyors, crushers, and heavy machinery, essential for 24/7 operations.
• Marine & Offshore Platforms:
  • Certified for use on commercial vessels and offshore rigs, managing redundant networks for propulsion, dynamic positioning, and cargo handling systems.
• Manufacturing & Automotive:
  • Protects high-speed assembly lines and robotic workcells from communication interruptions.
  • Integrates single-interface PLCs and HMI panels into redundant networks for enhanced production line availability.
• Water & Wastewater Treatment:
  • Secures SCADA communication for pump stations and filter plants, ensuring reliable remote control and monitoring of distributed assets.
