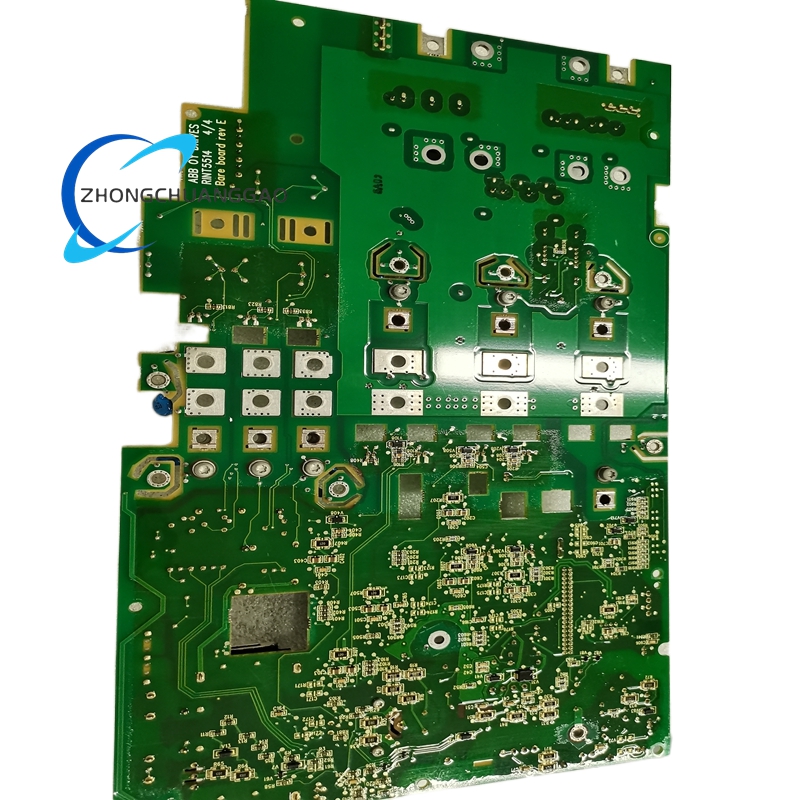

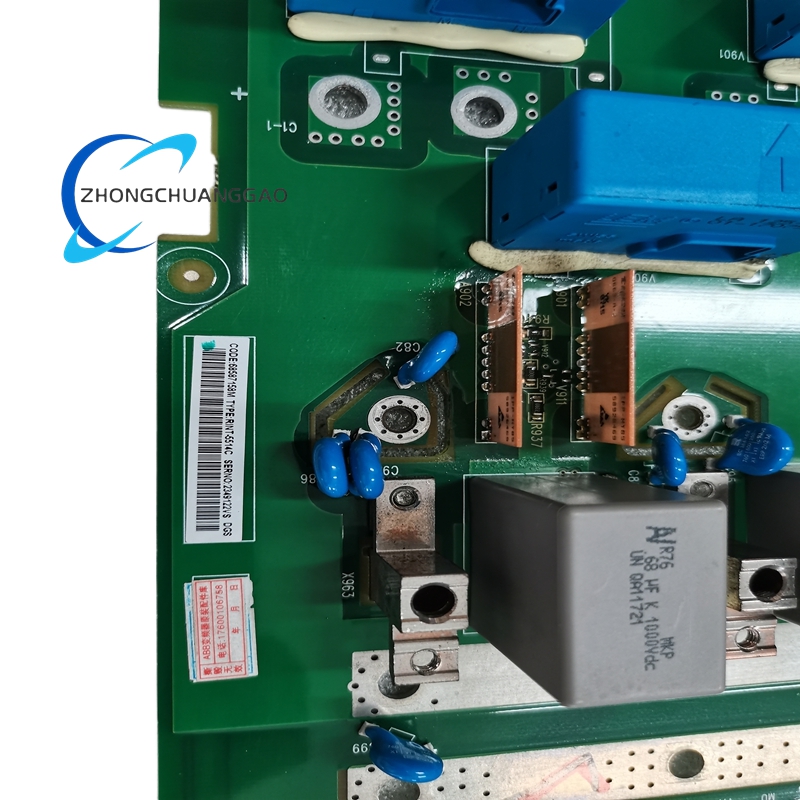

ABB RINT-5514C Main Circuit Interface Board

Description

Technical Specifications

Basic Parameters

• Compatible Drive Series: ABB ACS800 (ACS800-01, ACS800-04)
• Applicable Power Ratings: 30 kW, 37 kW, 45 kW
• Board Type: Integrated main circuit interface, drive, and power board
• Dimensions: 515 mm (L) × 260 mm (W) × 90 mm (H)
• Weight: Approximately 1.7 kg
• Mounting: Direct internal mounting within ACS800 drive chassis

Power Supply & Electrical Characteristics

• Input Power: Derived from ACS800 main circuit DC bus
• Auxiliary Power Output: Provides stable control power, drive power, and logic power for internal circuits
• Isolation: 2500 V rms galvanic isolation between control and power circuits
• Power Consumption: Max. 25 W (typical operation)

Interface & Connectivity

• IGBT Drive Interfaces: Multi-channel optical drive outputs for inverter/rectifier IGBT modules
• Control Unit Connection: Dedicated interface for connection to RDCU control board
• I/O Expansion Connection: Interface for RMIO/AINT I/O extension boards
• Analog Inputs: Multi-channel current/voltage sampling inputs (0–500 V DC, 0–50 A AC)
• Digital Inputs/Outputs: Optically isolated digital I/O for external control signals
• Communication Interfaces: Optical fiber communication ports, RS-485 based Modbus support
• Temperature Monitoring: Integrated RTD/NTC sensor inputs for heat sink and ambient temperature detection

Environmental Specifications

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5–95% non-condensing
• Protection: Anti-surge, EMC protection, reverse polarity protection
• Certifications: IEC 61800-5-1, CE, UL, RoHS compliant

Performance Parameters

• IGBT Switching Frequency: Up to 16 kHz (configurable)
• Current Sampling Accuracy: ±0.1%
• Voltage Sampling Accuracy: ±0.2%
• Response Time: < 1 μs for fault detection and protection triggering
• Temperature Monitoring Range: -40°C to +125°C

Key Functional Features

Integrated Power Management

• Multi-Output Power Supply: Generates isolated power supplies for control logic, IGBT drivers, and auxiliary circuits
• Voltage Stabilization: Precise DC bus voltage regulation and stabilization
• Power Loss Protection: Instantaneous power failure detection and controlled shutdown sequence

Advanced IGBT Drive & Control

• High-Speed IGBT Trigger: Optical isolation drive signals with dead-time control
• Parallel IGBT Balancing: Active current sharing for parallel-connected power modules
• Overcurrent Suppression: Real-time overcurrent detection with immediate gate shutdown
• Soft Switching Control: Optimizes switching transitions to reduce losses and EMI

Comprehensive Protection Functions

• Overvoltage Protection: DC bus overvoltage monitoring and clamping
• Overcurrent Protection: Instantaneous and time-delayed overcurrent protection for all phases
• Short-Circuit Protection: Immediate IGBT shutdown on phase-to-phase or phase-to-ground short circuits
• Overtemperature Protection: Heat sink and ambient temperature monitoring with thermal shutdown
• Earth Fault Detection: Sensitive residual current monitoring for ground fault protection
• Phase Loss Protection: Detects input phase loss and unbalance conditions
• Self-Diagnosis: Continuous hardware self-test with fault code generation

Signal Processing & Monitoring

• High-Precision Sampling: Simultaneous multi-channel analog/digital signal sampling
• Real-Time Measurement: Calculates phase current, DC bus voltage, output frequency, and power parameters
• Condition Monitoring: Tracks IGBT operation hours, temperature history, and fault occurrences
• Fault Recording: Stores last 10 fault events with time stamps and detailed parameters

System Integration & Communication

• Control Unit Interface: High-speed data exchange with RDCU main control board
• Optical Communication: Fiber-optic links for noise-immune long-distance communication
• Protocol Support: Compatible with Modbus RTU, DriveBus, and optional fieldbus adapters
• External I/O Connection: Direct interface to remote I/O modules and control panels
• Parameter Configuration: Supports firmware updates and parameter setting via PC tools

Reliability & Durability

• Industrial-Grade Components: High-quality components for extended service life
• Enhanced Heat Dissipation: Optimized PCB layout and thermal design
• Anti-Interference Design: Multi-layer PCB with comprehensive EMC filtering
• Vibration Resistance: Conformal coating and robust mechanical construction
