Product Short Description

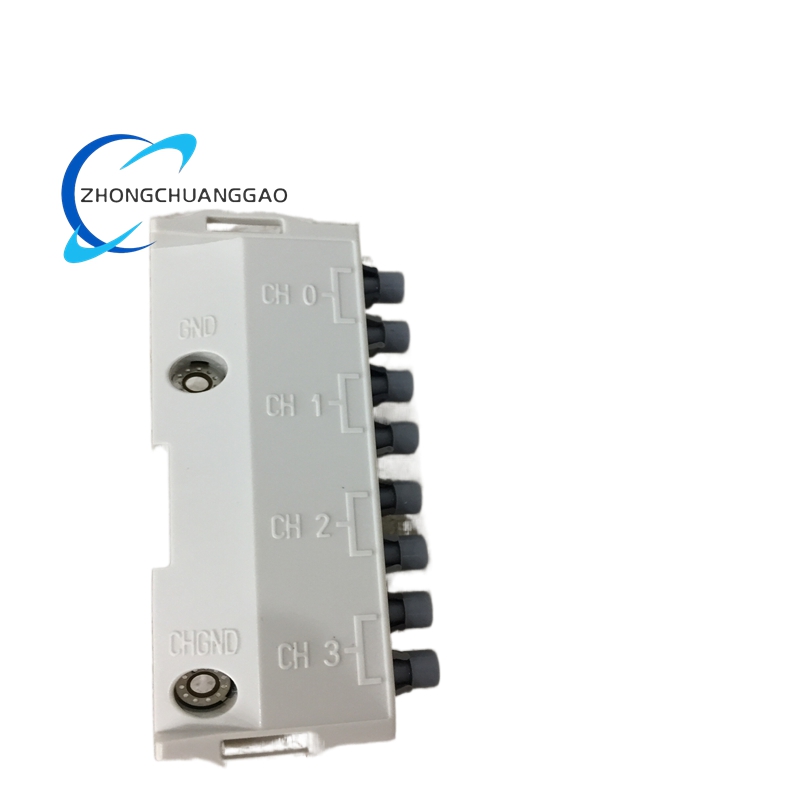

The ABB RDCO-02C is a high-performance, fiber-optic communication option module specifically designed for the ABB ACS800 series industrial inverters. As a core component of the ABB drive communication system, it implements the proprietary DDCS (Drive Communication Control System) protocol to enable high-speed, deterministic, and interference-resistant data exchange between inverters, control units, and distributed I/O systems. Engineered with a coated circuit board for enhanced durability in harsh industrial environments, the module serves as a critical bridge for real-time parameter configuration, status monitoring, and system synchronization, ensuring stable and efficient operation of large-scale automation networks.
Description
Technical Specifications
| Parameter Category | Details |
|---|---|
| Product Type | DDCS Communication Option Module (Coated) |
| Compatible Host | ABB ACS800 Series Inverters |
| Communication Protocol | DDCS (ABB Proprietary Fiber Optic Protocol) |
| Communication Channels | 4 x Fiber Optic Channels (CH0, CH1, CH2, CH3) |
| Data Transmission Rate | Configurable: 1 Mbit/s, 2 Mbit/s, 4 Mbit/s |
| Fiber Optic Interface | Agilent Versatile Link (Transmit/Receive Pair) |
| Power Supply | +5 V DC |
| Maximum Power Consumption | 200 mA |
| Protection Level | IP20 |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5–95% (Non-condensing) |
| Certifications | CE, IEC 61800-5-1, RoHS |
| Mounting Method | Integrated with ACS800 Main Drive Unit |
| Mechanical Design | Coated PCB for Dust and Moisture Resistance |
Key Functional Features
High-Speed & Reliable Fiber Optic Communication
- Equipped with four independent fiber optic channels (CH0–CH3) supporting configurable speeds up to 4 Mbit/s, delivering microsecond-level data refresh rates for real-time control.
- Adopts Agilent Versatile Link optical components to ensure galvanic isolation, effectively eliminating electromagnetic interference (EMI) and electrical noise in high-power industrial environments.
- Supports redundant communication links via multi-channel configuration, enabling automatic failover to maintain system continuity in critical applications.
Seamless System Integration
- Native compatibility with the ABB ACS800 series, enabling direct connection to RMIO Motor Control and I/O boards, BCU control units, and other DDCS-enabled devices.
- Facilitates seamless integration with ABB System 800xA DCS, PLCs, HMIs, and SCADA systems via standard industrial protocols, supporting unified monitoring and management of entire automation lines.
- Allows flexible allocation of communication channels: CH0 for fieldbus adapters, CH1 for I/O expansion, CH2 for master/follower links, and CH3 for auxiliary control, optimizing system architecture for diverse scenarios.
Robust Industrial Durability
- Features a coated circuit board design to resist dust, moisture, and chemical corrosion, extending service life in harsh conditions such as manufacturing workshops, offshore platforms, and chemical plants.
- Complies with stringent EMC standards (IEC 61000-4-2) to ensure stable performance in environments with strong electromagnetic interference.
- Integrated with the ACS800 main unit, eliminating the need for additional mounting hardware and reducing installation complexity.
Efficient Monitoring & Configuration
- Enables real-time transmission of inverter operating data (e.g., voltage, current, speed, fault codes) to upper-level systems, supporting proactive maintenance and troubleshooting.
- Allows remote parameter adjustment and firmware updates without halting production, improving operational efficiency and reducing downtime.
- Supports diagnostic functions to quickly locate communication faults, ensuring rapid recovery of the entire control system.
Application Scenarios
The ABB RDCO-02C is widely deployed in industries requiring high-reliability communication for ACS800-based drive systems:
Metals & Mining
- Core control for rolling mill main drives, continuous casters, and excavator hydraulic systems, ensuring precise speed and torque synchronization under heavy loads.
- Real-time regulation of ore crushers, conveyor belts, and lifting equipment to maintain stable production flow in mining sites.
Oil & Gas
- High-speed communication for pipeline compressors, pump stations, and offshore drilling rigs, enabling fast response to pressure and flow changes.
- Integration with safety instrumented systems (SIS) to implement interlock control for hazardous area equipment, ensuring operational safety.
Power Generation & Energy
- Control of thermal power plant induced draft fans, boiler feed pumps, and hydro-turbine governors, supporting stable grid connection and load regulation.
- Communication interface for wind turbine converters and solar photovoltaic inverters, facilitating real-time data collection and efficiency optimization.
Chemical & Petrochemical
- Precision control of polymerization reactors, distillation columns, and chemical dosing systems, ensuring accurate parameter adjustment for continuous production.
- Reliable data transmission for explosion-proof drive equipment in refineries and chemical processing plants.
Manufacturing & Materials Handling
- High-performance communication for automotive assembly lines, robotic arms, and packaging machinery, enabling coordinated motion control.
- Real-time monitoring of conveyor systems, cranes, and lifting platforms in logistics and warehousing to improve operational efficiency.
Water & Wastewater
- Communication interface for water plant pumps, valves, and aeration systems, supporting precise flow and pressure control.
- Reliable data transmission for sewage treatment equipment to ensure stable operation of purification processes.
