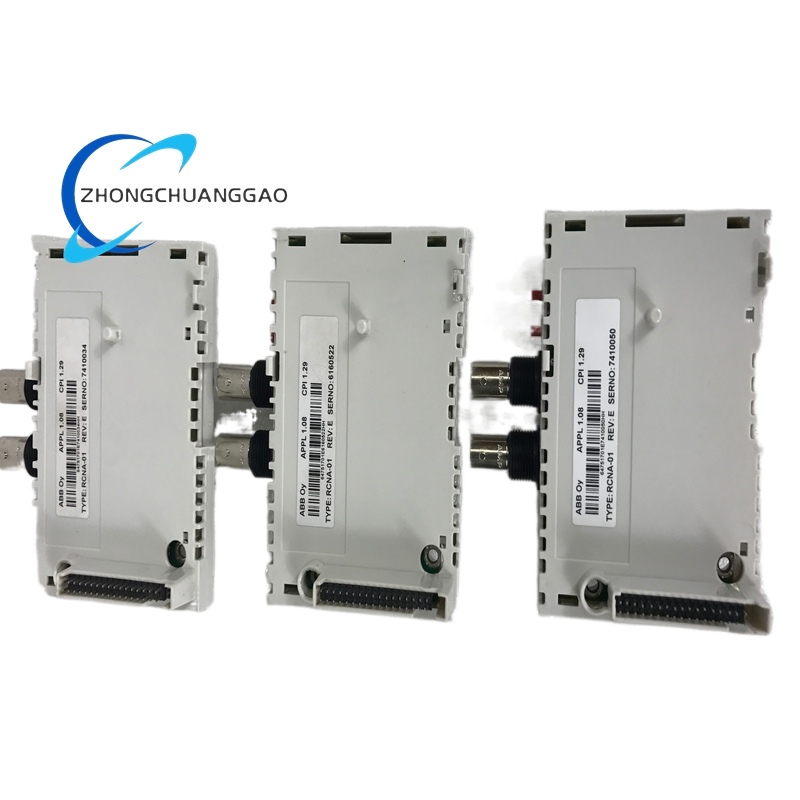

ABB RCNA-01 ControlNet Adapter Module

Description

Technical Specifications

• Product Type: ControlNet Fieldbus Communication Adapter Module
• Compatible Drive Series:
  • ACS550 Series (General Purpose Drives)
  • ACH550 Series (HVAC Drives)
  • ACS800 Series (Industrial Drives)
  • ACQ800 Series (Water & Wastewater Drives)
  • DCS800 Series (DC Drives)ABB Group
• Communication Protocol: ControlNet (Compliant with international Communication Adapter profile 12)
• Network Data Rate: 5 Mbps (fixed ControlNet standard speed)
• Network Interface:
  • Dual BNC coaxial connectors (for redundant media)
  • Supports RG-6 quad-shielded coaxial cable only
  • Built-in 75 Ω, 1% metal film bus termination resistor
  • Network Access Port (NAP) for diagnostic and configuration access
• Power Requirements:
  • Power Source: Powered directly from the host drive (no external supply needed)
  • Current Consumption: 260 mA max. at 5 V DC
  • Power Consumption: < 2 W (typical operational)
• Physical Characteristics:
  • Form Factor: Compact drive-mounted option module
  • Weight: 0.15 kg (approx.)
  • Dimensions: 65 x 100 x 28 mm
  • Mounting: Inserts into dedicated drive option slot, secured with clips and screws
  • Enclosure Rating: IP20 (internal drive mounting)
• Environmental Ratings:
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5–95% non-condensing
  • Vibration/Shock: IEC 60068-2-6 compliant for industrial environments
• Connection Capacity:
  • Maximum Connection Size: 450 bytes per direction (input/output)
  • Topology Support: Bus, Tree, and Star network topologies
• Certifications & Compliance: CE, UL, cUL, ATEX (for hazardous locations)
• Lifecycle Status: Active (Classic phase product)ABB Group

Key Features

• High-Speed ControlNet Communication:
  • Operates at the full ControlNet bandwidth of 5 Mbps for real-time, low-latency data transfer.
  • Implements the Producer/Consumer communication model for efficient multicast and peer-to-peer data exchange.
  • Enables transmission of control commands, speed/torque references, process data, and fault resets between the network and drive.
  • Supports both standard and vendor-specific ControlNet objects for full interoperability.
• Media Redundancy & Reliability:
  • Features dual redundant BNC ports for ControlNet cable redundancy, eliminating single points of failure.
  • Utilizes high-performance RG-6 quad-shielded cable to maximize signal integrity and resistance to electrical noise.
  • Automatic failover between primary and backup communication paths ensures uninterrupted control.
  • Solid-state design with no moving parts delivers an estimated minimum lifetime of 100,000 hours.
• Seamless Drive Integration:
  • Plug-and-play installation into the dedicated option slot of compatible ABB drives.
  • Direct power and communication interface with the drive’s control board, no external wiring required.
  • Full read/write access to all drive parameters, status words, and actual values via the network.
  • Configuration is managed centrally via the ControlNet scanner or drive engineering tools.
• Advanced Diagnostic Capabilities:
  • Integrated Network Access Port (NAP) for on-site network troubleshooting and monitoring.
  • Comprehensive LED status indicators for power, network communication, faults, and redundancy status.
  • Continuous self-diagnostics monitor network health, connection quality, and module integrity.
  • Detailed fault codes and status messages are accessible over the network for predictive maintenance.
• Robust Industrial Design:
  • Conformal coated circuit board protects against dust, humidity, and industrial chemical contaminants.
  • Extended operating temperature range ensures stable performance in extreme plant conditions.
  • High immunity to electromagnetic interference (EMI) and electrical noise common in industrial environments.
  • Designed for high-availability applications requiring continuous, 24/7 operation.
• Flexible Network & Control Features:
  • Supports connection to multiple ControlNet scanners for distributed control architectures.
  • Facilitates seamless integration with PLCs, HMIs, and DCS systems on the same ControlNet network.
  • Enables full remote control and monitoring of the drive, eliminating the need for local physical interfaces.
  • Supports time-stamped data transfer for precise event logging and process synchronization.

Application Scenarios

• Manufacturing & Assembly Lines:
  • Real-time speed and torque control for conveyors, mixers, and pumps in automotive and general manufacturing.
  • Integrated drive control for packaging machinery, ensuring precise coordination with line PLCs.
  • Centralized monitoring and parameterization of motor control centers (MCCs) in production facilities.
• Oil & Gas Industry:
  • Control of pumps, compressors, and fans in refineries, pipelines, and offshore platforms.
  • Reliable communication in hazardous areas with ATEX-certified installations.
  • Integration with safety instrumented systems (SIS) for emergency shutdown and process interlocking.
• Power Generation & Distribution:
  • Drive control for boiler feed pumps, induced draft fans, and cooling systems in thermal power plants.
  • Coordinated control of wind turbine pitch systems and converter drives.
  • Integration with SCADA systems for remote monitoring and load management in substations.
• Water & Wastewater Treatment:
  • Precise control of water intake pumps, aeration blowers, and filter presses.
  • Networked control for large-scale water distribution networks and pumping stations.
  • Reliable operation in corrosive and humid treatment plant environments.
• HVAC & Building Automation:
  • Control of large ventilation fans, chillers, and pumps in commercial and industrial buildings.
  • Integration with building management systems (BMS) for energy-efficient climate control.
  • Redundant communication for critical HVAC systems in hospitals and data centers.
• Metals & Mining:
  • High-performance drive control for rolling mills, crushers, and conveyors in mining operations.
  • Robust communication in high-vibration, high-dust environments of metal processing plants.
  • Seamless integration with complex, multi-drive coordinated systems.
• Marine & Offshore:
  • Control of propulsion drives, bow thrusters, and cargo handling systems on commercial vessels.
  • Reliable operation in harsh marine environments with high humidity and salt spray.
  • Integration with ship automation and power management systems.
