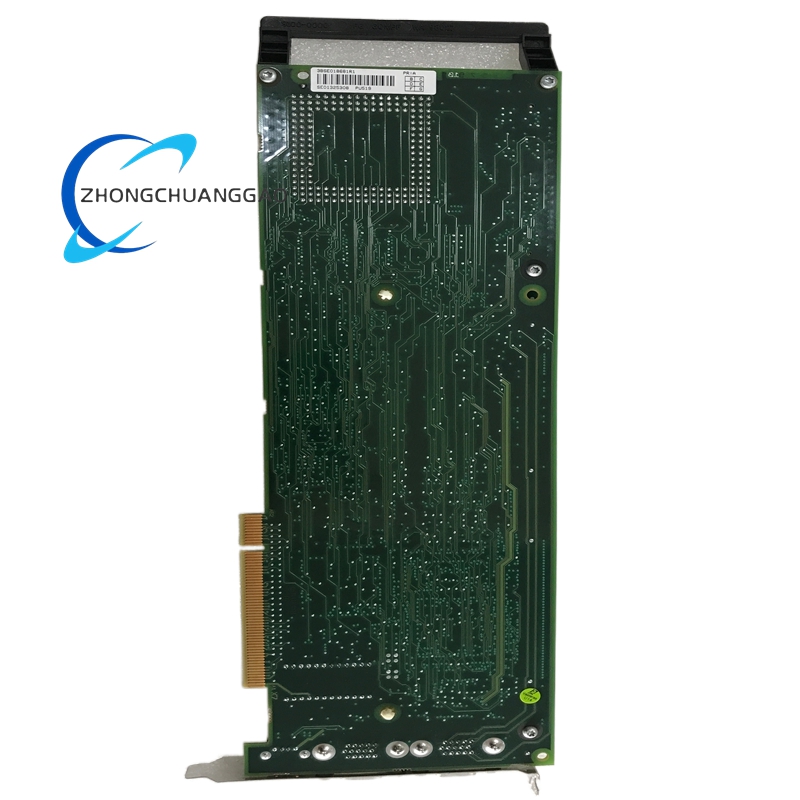

ABB PU519 Real-Time Accelerator (RTA) Board

Description

Technical Specifications

• Product Type: Real-Time Accelerator (RTA) Board / DCS Co-Processor Module
• Product Series: ABB System 800xA, Advant OCS
• Processor: High-performance DSP (Digital Signal Processor)
• Processing Capability: Up to 1 MHz task processing cycle
• Memory:
  • 2 MB Flash Memory (for firmware and application storage)
  • 256 KB RAM (for real-time data processing)
• Bus Interface: Dual-channel MB300 (Advant Master Bus 300)
• Bus Compatibility: 5V 32-bit 33MHz PCI bus
• Physical Dimensions: 325 mm x 126 mm x 17 mm
• Weight: 0.34–0.4 kg (net)
• Power Supply: 24 V DC (18–32 V DC input range)
• Power Consumption: 12 W (typical)
• Operating Temperature: -25°C to +70°C
• Humidity: 5–95% non-condensing
• Vibration Resistance: 5 g (IEC 60068-2-6)
• Ingress Protection: IP20 (cabinet installation)
• Mounting: Rack-mounted (standard control cabinet chassis)
• Certifications: CE, UL, IEC 61131-2, RoHS, EMC compliant

Key Functional Features

• Ultra-High-Speed Real-Time Processing
  • Dedicated DSP architecture delivers microsecond-level deterministic operation.
  • Supports up to 1 MHz control cycle speed for time-critical processes.
  • Offloads complex control algorithms from main CPU to reduce system latency.
  • Enables high-speed signal sampling and precision closed-loop control.
• Dual-Channel High-Speed Bus Communication
  • Dual MB300 bus interfaces provide redundant, high-bandwidth system connectivity.
  • Ensures reliable, interference-free data exchange with main controllers and I/O subsystems.
  • Supports simultaneous data transfer for parallel processing tasks.
  • Delivers low-latency communication for large-scale distributed control networks.
• Robust Industrial Reliability
  • Extended temperature range operation for harsh plant environments.
  • Rugged PCB design with high resistance to vibration and shock.
  • Industrial-grade components ensure continuous, maintenance-free operation.
  • Built-in fault detection and hardware watchdog for fail-safe performance.
• Optimized Memory Architecture
  • Dedicated flash memory stores firmware, control algorithms, and configuration data.
  • High-speed RAM processes real-time data and temporary operational variables.
  • Efficient memory management reduces access latency and boosts processing throughput.
  • Non-volatile flash retains critical data during power interruptions.
• Seamless System Integration
  • Direct compatibility with ABB System 800xA and Advant OCS DCS platforms.
  • Plug-and-play installation with automatic bus configuration recognition.
  • Supports system expansion and retrofit installations without full shutdown.
  • Fully compatible with ABB Control Builder engineering tools for configuration.
• Advanced Diagnostic Capabilities
  • On-board LED indicators for real-time status, communication, and fault monitoring.
  • Continuous self-diagnostics of processor, memory, and bus interfaces.
  • Detailed event logging for troubleshooting and predictive maintenance.
  • Remote diagnostic access via system network for proactive maintenance.

Application Scenarios

• Oil & Gas
  • High-speed control of refining processes and distillation columns.
  • Precision regulation of pipeline compressor stations.
  • Real-time monitoring and control of offshore drilling systems.
  • Fast response safety interlock systems for production platforms.
• Power Generation
  • Excitation system control for thermal and hydroelectric generators.
  • Ultra-fast grid stability and voltage regulation applications.
  • High-speed turbine governing and load control systems.
  • Real-time monitoring for boiler and steam cycle processes.
• Chemical & Petrochemical
  • Precision batch reactor control with fast parameter adjustment.
  • High-speed polymerization and reaction process regulation.
  • Real-time safety instrumented system (SIS) logic execution.
  • Complex multi-variable control for continuous process plants.
• Metals & Mining
  • High-performance rolling mill drive control systems.
  • Real-time regulation of smelting and electrolysis processes.
  • Fast response material handling and conveyor control.
  • Precision temperature and pressure control in metal processing.
• Water & Wastewater
  • High-speed chemical dosing and pH adjustment control.
  • Real-time pump and valve regulation for water distribution.
  • Fast response filtration and purification process management.
  • Critical control for wastewater treatment aeration systems.
• Manufacturing & Machinery
  • High-speed assembly line motion control.
  • Precision robotics and servo system coordination.
  • Real-time quality control and inspection process management.
  • Fast response control for packaging and material processing lines.
• Power Transmission & Distribution
  • Control of flexible AC transmission systems (FACTS).
  • High-speed static VAR compensation regulation.
  • Real-time grid stability and power quality management.
  • Fast switching control for high-voltage distribution networks.
