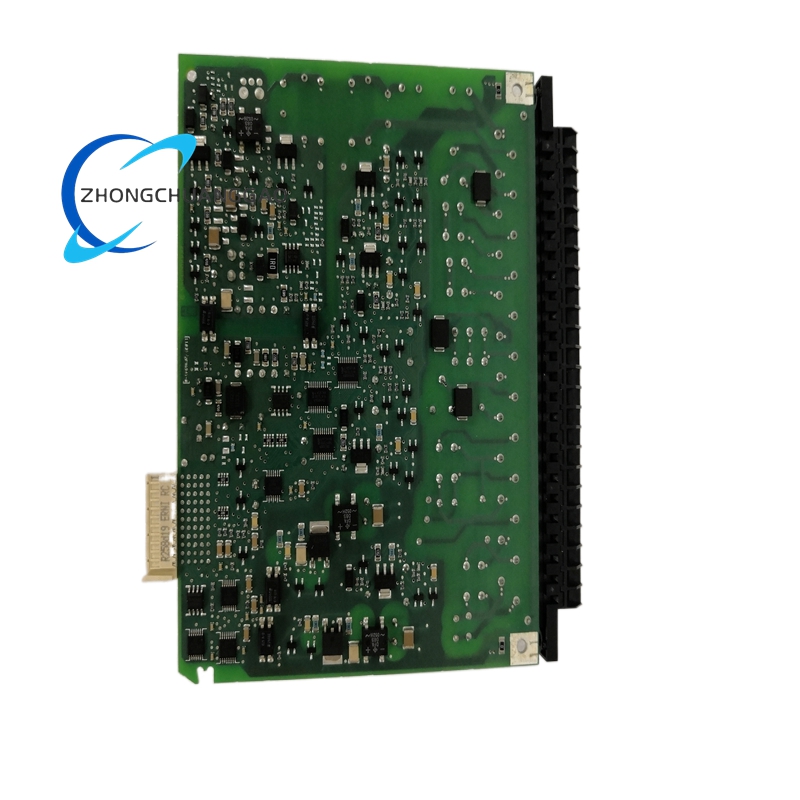

ABB PSM00064 Industrial Interface Module/Signal Conditioning Module

Description

Technical Specifications

• Product Type: Signal Conditioning & Interface Module
• Input Signal Range:
  • Voltage Input: 10–30 V DC
  • Current Input: Supports standard industrial current loops
• Power Requirements:
  • Supply Voltage: 10–30 V DC
  • Current Consumption: 20 mA (typical)
• Output Characteristics:
  • Output Load Capacity: 200 mA maximum
  • Signal Isolation: Full galvanic isolation between input and output
• Environmental Ratings:
  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 10–95% non-condensing
  • Vibration Resistance: Complies with IEC 60068-2-6 standards
  • Shock Resistance: Withstands industrial-level mechanical shocks
• Physical Specifications:
  • Form Factor: Compact PCB module for DIN-rail or panel mounting
  • Construction: Industrial-grade circuit board with protective coating
  • Terminals: Screw terminals for secure field wiring
  • Weight: 0.2 kg (approximate)
• Protection Features:
  • Over-voltage protection
  • Over-current protection
  • Reverse polarity protection
  • Electrical isolation voltage: 2.5 kV AC
• Certifications: CE, UL, cUL, ATEX
• Compatibility: Interfaces with ABB PLCs, DCS systems, and standard industrial I/O networks

Key Features

• High-Precision Signal Conditioning:
  • Delivers accurate amplification, filtering, and conversion of analog and digital signals
  • Maintains signal integrity with high signal-to-noise ratio in electrically noisy environments
  • Provides linear signal processing with minimal distortion across full operating range
  • Supports wide input voltage tolerance for flexible field device connectivity
• Advanced Electrical Isolation:
  • Full galvanic isolation up to 2.5 kV AC eliminates ground loops and electrical interference
  • Isolates sensitive control circuitry from high-voltage field devices
  • Protects connected equipment from electrical surges and transient voltage spikes
  • Ensures safe signal transfer between intrinsically safe and non-intrinsically safe circuits
• Robust Industrial Reliability:
  • Operates stably in extreme temperature ranges from -25°C to +70°C
  • Resists vibration, shock, and mechanical stress common in industrial facilities
  • Conformal coating protects circuitry from humidity, dust, and chemical contaminants
  • Solid-state design with no moving parts ensures long service life and high MTBF
• Flexible System Integration:
  • Compatible with ABB AC 700, AC 800M, and System 800xA control platforms
  • Interfaces with standard 4–20 mA, 0–10 V, and digital signal protocols
  • Supports direct connection to sensors, transmitters, actuators, and control relays
  • Easy wiring with screw terminals for quick installation and maintenance
• Comprehensive Protection Mechanisms:
  • Built-in over-voltage and over-current protection safeguards connected devices
  • Reverse polarity protection prevents damage from incorrect wiring
  • Short-circuit protection on output channels ensures system safety
  • Thermal overload protection maintains performance under high-load conditions
• Compact & Efficient Design:
  • Space-saving compact form factor optimizes control cabinet installation
  • Low power consumption (20 mA typical) reduces energy usage and heat generation
  • Plug-and-play functionality enables straightforward installation and replacement
  • Versatile mounting options for DIN rails or direct panel installation

Application Scenarios

• Oil & Gas Industry:
  • Signal conditioning for wellhead pressure, temperature, and flow transmitters
  • Isolated interface for pipeline monitoring sensors and metering devices
  • Signal conversion for refinery process analyzers and safety instrumented systems
  • Interface module for offshore platform instrumentation and control loops
• Chemical & Pharmaceutical Processing:
  • Isolated signal management for reactor temperature and pressure sensors
  • Signal conditioning for batch process monitoring and analytical instruments
  • Interface for hazardous area level sensors and flow controllers
  • Isolated I/O for cleanroom environmental monitoring systems
• Power Generation & Distribution:
  • Signal conversion for boiler and turbine auxiliary sensor systems
  • Isolated interface for substation current and voltage transformers
  • Condition monitoring signals for generator sets and power transmission equipment
  • Interface module for wind turbine pitch and yaw control sensors
• Water & Wastewater Treatment:
  • Signal conditioning for pump station level and flow sensors
  • Isolated interface for water quality analyzers and pH measurement devices
  • Signal conversion for filter press and clarification process instrumentation
  • Module for wastewater treatment aeration basin monitoring systems
• Manufacturing & Machinery:
  • Interface for industrial robot position and pressure feedback sensors
  • Signal conditioning for assembly line torque and vibration monitoring
  • Isolated I/O for material handling conveyor speed and load sensors
  • Module for machine tool temperature and tool wear monitoring systems
• Metals & Mining:
  • Signal conversion for smelting furnace temperature and level sensors
  • Isolated interface for ore crushing and grinding process instrumentation
  • Condition monitoring for rolling mill tension and speed sensors
  • Module for mine ventilation and gas detection systems
• Marine & Offshore:
  • Interface for shipboard engine room temperature and pressure sensors
  • Signal conditioning for dynamic positioning system feedback signals
  • Isolated I/O for offshore rig drilling instrumentation and valve controls
  • Module for marine fuel management and emissions monitoring systems
