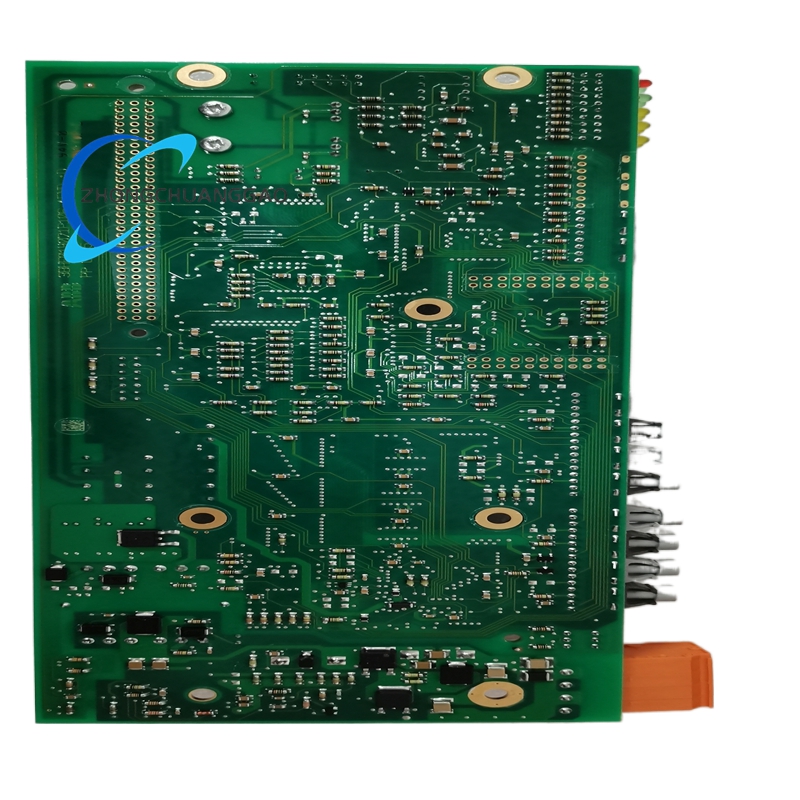

ABB PPC905AE101 Process Control Module

Description

Technical Specifications

• Product Series
  • AC 800PEC Series
• Processor
  • Type: Dual-core industrial processor
  • Frequency: 800 MHz
  • Architecture: Multi-core parallel processing for high-efficiency algorithm execution
• Memory
  • Program Storage: 8 GB Flash memory
  • Data Memory: 2 GB DDR4 SDRAM (expandable to 4 GB)
• Power Supply
  • Nominal Input: 24 V DC
  • Voltage Range: 19.2 V DC – 28.8 V DC (±20%)
  • Power Consumption: ≤ 30 W
  • Protection: Reverse polarity protection
• Analog I/O Interfaces
  • Analog Inputs (AI): 16 channels, configurable for 4–20 mA DC / 0–10 V DC, 16-bit resolution
  • Analog Outputs (AO): 12 channels, 4–20 mA DC, 14-bit resolution
• Digital I/O Interfaces
  • Digital Inputs (DI): 32 channels, selectable PNP/NPN type, response time ≤ 10 μs
  • Digital Outputs (DO): 24 channels, relay output type, rated 250 V AC / 5 A
• Drive Control Interfaces
  • Pulse Outputs: 4 channels, maximum frequency 1 MHz
  • PWM Outputs: 8 channels, adjustable duty cycle 0–100%
• Communication Interfaces
  • Ethernet: 2 ports, 10/100 Mbps, supporting protocols including Modbus TCP, PROFINET
  • Serial: 1 port, configurable for RS-232 / RS-485
  • Fieldbus: Support for industrial protocols like Profibus DP
• Physical Characteristics
  • Dimensions (W x H x D): 85 mm x 35 mm x 125 mm
  • Weight: 0.2 kg
  • Mounting: Standard DIN-rail mounting
  • Housing: Industrial-grade printed circuit board with anti-interference coating
• Environmental Ratings
  • Operating Temperature: -25 °C to +70 °C
  • Storage Temperature: -40 °C to +85 °C
  • Humidity: 5% RH – 95% RH (non-condensing)
  • Protection Rating: IP20
• Certifications
  • CE, UL, RoHS

Key Features

• High-Speed Processing Performance: Equipped with a dual-core 800 MHz processor, enabling parallel execution of complex control algorithms and ensuring microsecond-level response for real-time process regulation.
• Multi-Mode Control Capability: Integrates support for logic control, continuous process control, and motion control, providing a unified solution for diverse industrial automation requirements.
• High-Precision Signal Handling: Features 16-bit analog inputs and 14-bit analog outputs, delivering exceptional signal accuracy for precise monitoring and regulation of critical process variables.
• Comprehensive I/O Configuration: Offers a rich set of 32 digital, 24 relay, 16 analog, and dedicated drive interfaces, facilitating direct connection to a wide array of sensors, actuators, and high-power drive units.
• Flexible Communication Suite: Integrates dual Ethernet and serial ports, supporting major industrial protocols for seamless integration with DCS, PLCs, HMIs, and enterprise-level networks.
• Robust Industrial Reliability: Operates stably across an extended temperature range of -25 °C to +70 °C, with strong resistance to vibration, humidity, and electromagnetic interference, ensuring 24/7 operation.
• Advanced Protection Mechanisms: Incorporates multi-layered protection including overcurrent, overvoltage, undervoltage, and short-circuit safeguards to protect both the module and connected equipment.
• Ample Data Storage: Provides 8 GB of flash memory for program storage and 2 GB DDR4 for data processing, supporting extensive data logging and complex application programs.
• Modular & Compact Design: Features a slim, DIN-rail mountable form factor, optimizing cabinet space and enabling flexible system configuration and expansion.
• Advanced Diagnostics: Built-in self-diagnostic and real-time monitoring functions enable proactive fault detection, simplifying maintenance and minimizing system downtime.

Application Scenarios

• Power Generation Industry: Controls auxiliary systems such as boiler feed pumps, induced draft fans, and forced draft fans. Manages pressure, flow, and temperature to optimize combustion efficiency and ensure stable water levels.
• Chemical & Petrochemical Processing: Executes closed-loop control for reaction vessels, distillation columns, and pipelines. Regulates temperature, pressure, and liquid level to ensure product quality and prevent hazardous conditions.
• Metallurgical Industry: Applied in steel rolling mills for roll pressure and strip tension control, and in non-ferrous smelting for electrolytic cell temperature and current regulation.
• Pulp & Paper Manufacturing: Manages dewatering, pressing, and drying processes in paper machines, ensuring uniform paper thickness, consistent moisture content, and stable production speed.
• Water & Wastewater Treatment: Controls pump stations, filtration systems, and chemical dosing processes, maintaining precise parameter control for efficient water purification.
• Oil & Gas Industry: Manages upstream drilling equipment, midstream pipeline pressure, and downstream refining processes, ensuring safe and efficient operation.
• General Manufacturing: Automates assembly lines, packaging machinery, and material handling systems, providing precise motion and sequence control for increased productivity.
• Mining Industry: Controls ore crushing, grinding, and conveying equipment, operating reliably in high-dust, high-vibration environments.
• Marine & Offshore: Serves as a control core for ship propulsion systems, auxiliary machinery, and safety systems, certified for harsh marine conditions.
