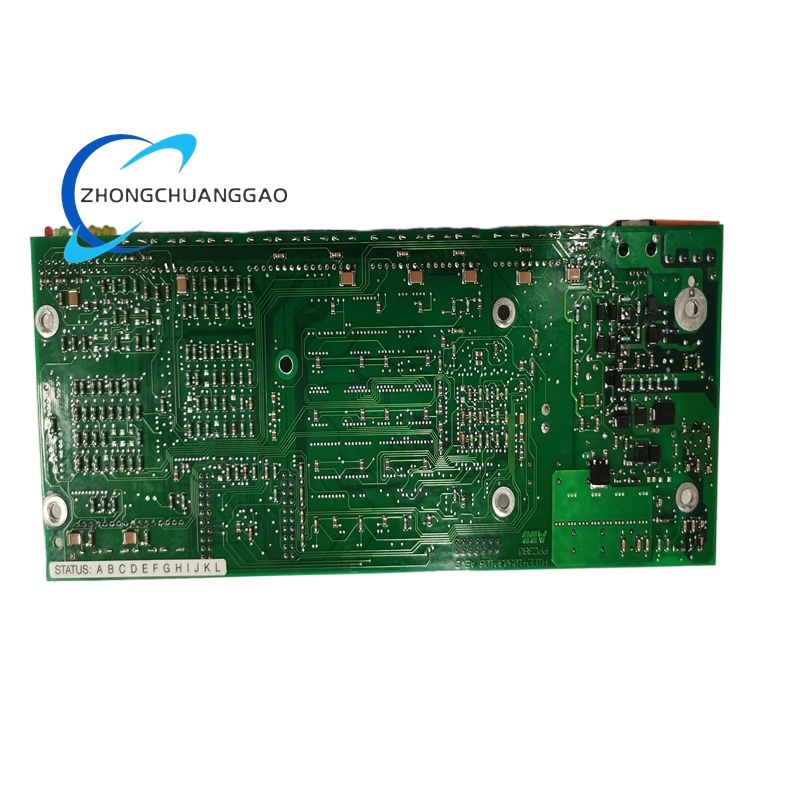

ABB PPC380AE02 High-Performance Industrial Control Module

Description

Technical Specifications

• Product Type: Advanced Industrial Control & Processing Module
• Processor:
  • CPU: 32-bit high-performance RISC processor
  • Processing Speed: High-speed execution with 550 μs typical I/O processing cycle time
• Memory:
  • RAM: 16 MB onboard volatile memory for real-time data processing
  • Flash Memory: 16 MB non-volatile flash memory for program and configuration storage
  • Data Retention: Battery-backed memory preserves user programs and critical process data during power loss
• Power Requirements:
  • Input Voltage: 24 V DC (±20% tolerance)
  • Input Current: 0.5 A maximum at nominal voltage
  • Power Consumption: 12 W maximum operational power
• Communication Interfaces:
  • Fieldbus: Supports Profibus DP, Modbus RTU/TCP, CAN, FF H1, Hart protocols
  • System Bus: High-speed proprietary backplane connection for AC 800M controller integration
  • Ethernet: Optional 10/100 Mbps Ethernet port for networked communication and remote access
  • Serial: RS-232/RS-485 ports for legacy device connectivity
• I/O Capabilities:
  • Signal Support: Mixed analog (AI/AO) and digital (DI/DO) signal processing
  • Analog Resolution: 16-bit high-resolution conversion for precision measurement and control
  • Update Rate: Fast analog/digital data update rates for real-time process responsiveness
• Physical Characteristics:
  • Form Factor: Standard 19-inch rack-mounted PCB module
  • Weight: 2.0 kg
  • Dimensions: Compact industrial card format for standard control cabinet mounting
  • Mounting: Direct backplane insertion for System 800xA racks
• Environmental Ratings:
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 10–95% non-condensing
  • Vibration Resistance: IEC 60068-2-6 compliant for heavy industrial vibration conditions
  • Corrosion Resistance: G3 industrial harsh environment rating
• Certifications: CE, UL, cUL, ATEX, IEC 61508 (SIL 3 capable), DNV-GL, ABS
• Configuration: Programmable via ABB Control Builder M software suite

Key Features

• High-Speed Processing & Precision Control:
  • 32-bit RISC processor delivers rapid execution of control logic, PID loops, and mathematical computations
  • 16-bit analog-to-digital/digital-to-analog conversion ensures sub-0.1% measurement and control accuracy
  • High-speed I/O processing minimizes latency for time-critical process loops
  • Supports advanced control algorithms including fuzzy logic, adaptive control, and cascade control
• Robust & Reliable Industrial Design:
  • Fan-less, solid-state construction eliminates moving parts for maximum mean time between failures (MTBF)
  • Extended temperature and vibration tolerance for operation in extreme plant conditions
  • Conformal coating option provides enhanced protection against humidity, dust, and chemical contaminants
  • Redundant power and communication paths prevent single points of failure
• Seamless System Integration:
  • Native compatibility with ABB AC 800M controllers and System 800xA DCS environment
  • Multi-protocol fieldbus support enables connectivity to third-party sensors, actuators, and PLCs
  • Plug-and-play installation with automatic configuration recognition
  • Seamless data exchange with supervisory control and data acquisition (SCADA) systems
• Advanced Redundancy & Fault Tolerance:
  • Full module-level redundancy support for critical control paths
  • Automatic failover to backup module without process interruption
  • Configurable fault protection and fallback strategies for output signals during anomalies
  • Continuous self-diagnostics monitor hardware health and communication integrity
• Flexible Signal & Communication Management:
  • Universal signal conditioning supports diverse analog and digital field devices
  • Isolated I/O channels protect against ground loops and electrical interference
  • High-speed data bus enables real-time synchronization across distributed control nodes
  • Built-in time synchronization via GPS or network time protocol (NTP) for precise event logging
• Simplified Engineering & Maintenance:
  • Intuitive configuration via Control Builder M with drag-and-drop programming
  • Comprehensive library of pre-defined function blocks and process control templates
  • Hot-swappable design allows module replacement without system shutdown
  • Remote diagnostics and firmware updates reduce on-site maintenance requirements
  • Detailed alarm and event logging supports regulatory compliance and troubleshooting

Application Scenarios

• Oil & Gas Industry:
  • Critical process control for refinery distillation, cracking, and hydroprocessing units
  • Offshore platform wellhead control, separation, and utility systems
  • Pipeline compressor stations and metering systems for precise flow regulation
  • LNG liquefaction and regasification process control
• Chemical & Petrochemical Manufacturing:
  • Reactor, fermenter, and polymerization process temperature/pressure control
  • Batch process management for pharmaceutical and specialty chemical production
  • Hazardous area material handling and safety interlock systems
  • Emission monitoring and flue gas treatment control
• Power Generation:
  • Boiler combustion control and steam turbine governing in thermal power plants
  • Combined-cycle gas turbine (CCGT) auxiliary system control
  • Wind/solar farm grid integration and power conversion control
  • High-voltage substation protection and switchgear control
• Metals & Mining:
  • Electric arc furnace and continuous casting machine control
  • Ore crushing, grinding, and flotation process automation
  • Hot/cold rolling mill tension and speed control
  • Mine hoist and conveyor system safety and speed regulation
• Water & Wastewater Treatment:
  • Water purification plant filtration and disinfection control
  • Sewage treatment aeration, clarification, and sludge processing
  • Pumping station flow control and level regulation
  • Desalination plant reverse osmosis process control
• Marine & Offshore:
  • Shipboard propulsion and engine control system (ECS) modules
  • Dynamic positioning (DP) system control interfaces
  • Offshore rig drilling and topside process control
  • Marine wastewater and ballast water management systems
• Manufacturing & General Industry:
  • Automotive assembly line robot and conveyor control
  • Food & beverage processing and packaging line automation
  • Paper & pulp mill drying, pressing, and winding control
  • Textile manufacturing spinning, weaving, and dyeing process control
