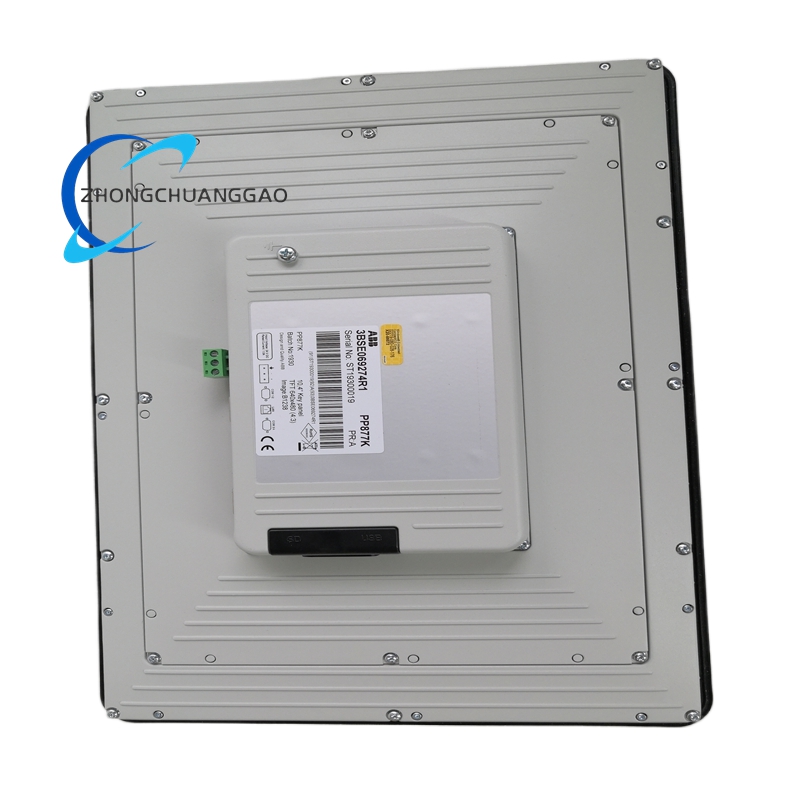

ABB PP877K Panel 800 Standard Keypad Operator Panel

Description

Technical Specifications

• Product Type: Industrial Keypad Operator Panel / HMI Interface
• Product Series: ABB Panel 800 (Standard Version)
• Display: 10.4-inch TFT-LCD with LED backlight
• Display Resolution: 640 x 480 pixels (VGA, 4:3 aspect ratio)
• Display Brightness: 450 cd/m²
• Input Method: Physical keypad with 22 function keys + navigation keys
• Processor: 400 MHz ARM9 industrial processor
• Memory:
  • 128 MB DDR2 RAM (for real-time data processing)
  • 80 MB application memory
  • Internal flash storage for project and log data
  • 1 x SD card slot for external memory expansion
• Operating System: Proprietary real-time operating system (RTOS)
• Communication Interfaces:
  • 1 x Ethernet port (10/100 Mbps)
  • 2 combined serial ports (2 x RS232, 2 x RS422/485)
  • 1 x USB port
• Supported Communication Protocols:
  • Modbus RTU/TCP
  • PROFIBUS DP
  • PROFINET
  • OPC UA
  • Ethernet/IP
• Power Supply: 24 V DC (18–32 V DC range)
• Power Consumption: 15 W (typical)
• Physical Dimensions (W x H x D): 286 mm x 410 mm x 83 mm
• Cut-out Dimensions (W x H): 394 mm x 270 mm
• Weight: 1.5 kg (net)
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Ingress Protection: IP66 front panel, IP20 rear casing
• Housing Material: Die-cast powder-coated aluminum
• Mounting: Front flush mounting for control cabinets
• Certifications: CE, UL, CSA, ATEX, RoHS compliant

Key Functional Features

• Industrial-Grade Durability
  • IP66-rated front panel resists dust, moisture, oil, chemical splashes, and high-pressure washing.
  • Die-cast aluminum housing delivers exceptional shock and vibration resistance.
  • Fanless passive cooling design ensures maintenance-free, continuous operation.
  • Wide temperature tolerance supports stable performance in harsh plant conditions.
• Tactile Keypad Operation
  • 22 backlit function keys + dedicated navigation keys for precise, tactile input.
  • Key operation functions with gloved hands for safe use in industrial settings.
  • Programmable function keys for quick access to frequent operations and shortcuts.
  • High-key travel and responsive feedback for accurate, error-resistant input.
• High-Visibility Visualization
  • 10.4-inch high-brightness LED-backlit display delivers clear process graphics and data.
  • Wide viewing angle ensures readability from various operator positions.
  • Support for vector-based, high-resolution graphics and dynamic process mimic diagrams.
  • Real-time display of trend charts, alarm lists, and operational parameters.
• High-Speed Performance
  • ARM9 processor enables fast screen rendering and low-latency command response.
  • Real-time operating system guarantees deterministic performance for critical control tasks.
  • Sufficient memory supports complex HMI applications and extensive data logging.
  • Rapid data acquisition and update rates for accurate real-time process representation.
• Comprehensive Communication & Integration
  • Multi-protocol support enables seamless connectivity with ABB controllers and third-party devices.
  • Ethernet interface facilitates connection to SCADA systems and industrial networks.
  • Serial ports support integration with legacy devices and field instrumentation.
  • USB and SD card ports enable easy project transfer, firmware updates, and data backup.
• Advanced Alarm & Diagnostics
  • Centralized alarm management with prioritization, logging, and historical tracking.
  • Visual and audible alarm notifications for immediate anomaly detection.
  • Built-in hardware and communication diagnostics for proactive system health monitoring.
  • Detailed fault codes and event logs to support rapid troubleshooting.
• Flexible Engineering & Security
  • Compatible with ABB Panel Builder 800 software for intuitive application development.
  • Supports IEC 61131-3 standards for consistent programming and system integration.
  • Multi-level user access control with password protection for operational security.
  • Online configuration changes allow application updates without process interruption.
  • Optimized form factor for easy installation in new systems and retrofits.

Application Scenarios

• Oil & Gas
  • Refinery process monitoring and control
  • Offshore platform operational interfaces
  • Pipeline and compressor station control rooms
  • Tank farm inventory and safety system management
• Chemical & Petrochemical
  • Batch reactor control and precise recipe parameter entry
  • Distillation column monitoring and manual parameter adjustment
  • Hazardous area process interfaces (ATEX compliant)
  • Plant safety instrumented system (SIS) interaction
• Power Generation
  • Thermal power plant boiler and turbine control
  • Renewable energy plant monitoring (solar, wind, hydro)
  • Substation automation and load management
  • Grid stability and distribution control
• Water & Wastewater
  • Water treatment plant process control
  • Pumping station automation and manual parameter setting
  • Water quality adjustment and data logging
  • Wastewater treatment facility operation interfaces
• Metals & Mining
  • Smelting and refining process control
  • Material handling and crushing plant monitoring
  • Rolling mill operational control and parameter input
  • Mine automation and safety system interaction
• Manufacturing & Machinery
  • Automated production line control
  • Precise machine parameter setting and calibration
  • Assembly line process monitoring and quality control
  • Packaging line operation and production data entry
• Food & Beverage
  • Processing and packaging line control
  • Batch mixing, pasteurization, and sterilization
  • Hygienic process monitoring and quality control
  • Production efficiency tracking and manual data input
• Pharmaceuticals & Biotechnology
  • GMP-compliant process monitoring and control
  • Clean utility system management
  • Fermentation and purification process interfaces
  • Precise batch manufacturing and recipe parameter entry
