ABB PP865A Panel 800 Touchscreen Human-Machine Interface (HMI) Operator Panel

Description

Technical Specifications

• Product Series
  • Panel 800
• Display
  • Size: 15-inch TFT color LCD
  • Resolution: 1024 x 768 pixels (XGA)
  • Color Depth: 64,000 colors
  • Backlight: LED, long-life design
  • Touchscreen: Resistive touch technology, rated for ≥1 million finger touches
• Physical Characteristics
  • Front Panel Dimensions (W x H x D): 398 mm x 304 mm x 6 mm
  • Mounting Depth: 60 mm (160 mm including clearance)
  • Weight: 3.7 kg
  • Housing: Die-cast, powder-coated aluminum (rear)
  • Mounting: Front-panel flush mount
• Power Supply
  • Nominal Input: 24 V DC
  • Voltage Range: 19.2 V DC – 28.8 V DC
  • Power Consumption: Max 8 W

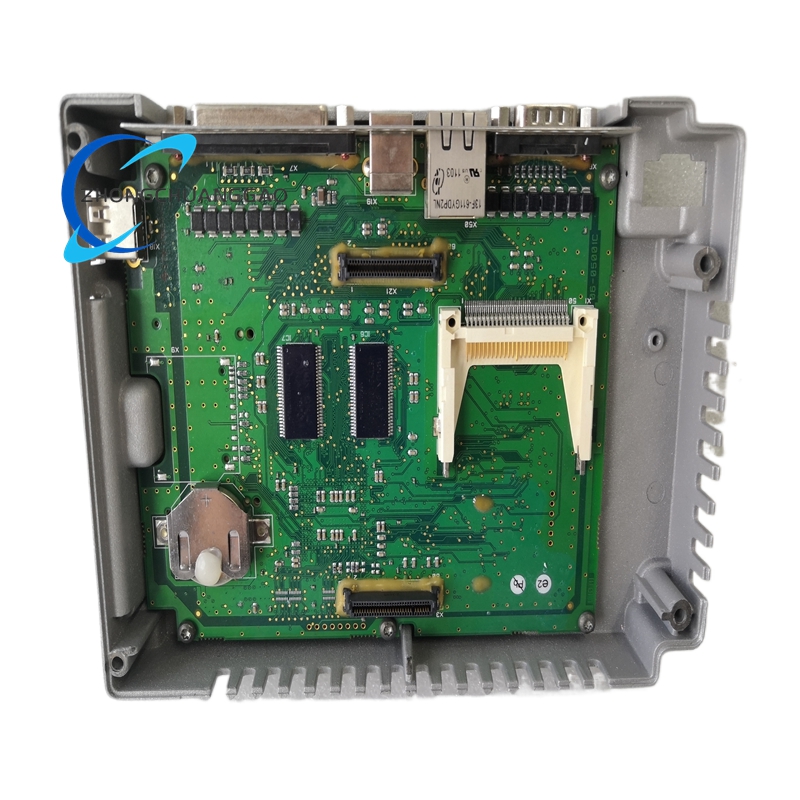

• Communication Interfaces
  • Ethernet: 1 x shielded RJ45 port, 10/100 Mbps
  • Serial Ports: 1 x RS-232C (9-pin D-sub), 1 x RS-422/RS-485 (25-pin D-sub)
  • USB: 1 x USB 1.1 Type A (Host), 1 x USB 1.1 Type B (Device)
  • Memory Expansion: 1 x Compact Flash (CF) card slot, supports Type I/II cards
• Environmental Ratings
  • Operating Temperature: 0 °C to +55 °C
  • Storage Temperature: -20 °C to +60 °C
  • Front Protection Rating: IP66 (dust and water resistant)
  • Rear Protection Rating: IP20
• Certifications
  • CE, UL, ATEX (for hazardous areas)
• Software Compatibility
  • ABB Panel Builder 800 (for configuration, programming, and customization)

Key Features

• Large, High-Resolution Display: Features a 15-inch XGA (1024×768) color TFT LCD that delivers crisp, clear visualization of process data, trends, alarms, and graphical mimic diagrams, ensuring excellent readability in diverse industrial lighting conditions.
• Reliable Resistive Touch: Equipped with a durable resistive touchscreen that enables precise operation, even when the operator is wearing work gloves, ensuring consistent usability in industrial settings.
• Industrial-Grade Robustness: Constructed with a powder-coated aluminum rear housing and an IP66-rated front panel, providing superior resistance to dust, water splashes, oil, and vibration, ideal for harsh factory floor environments.
• Extensive Connectivity: Offers a rich set of communication ports including 10/100 Mbps Ethernet, RS-232, RS-485, and USB, supporting standard protocols like Modbus TCP/RTU for seamless integration with controllers, PLCs, and plant networks.
• Flexible Data Management: Integrated CF card slot facilitates easy project backup, firmware updates, data logging, and system cloning, simplifying deployment, maintenance, and system replication.
• Advanced HMI Functionality: Provides comprehensive built-in features including alarm management (up to 16 groups), historical trending, data logging, recipe management, user security (up to 8 access levels), and multi-language support (up to 10 languages).
• Customizable Interface: Fully configurable with ABB Panel Builder 800 software, allowing the creation of tailored process screens, intuitive symbol-based navigation, and personalized function assignments to match specific operational needs.
• Ergonomic & Space-Saving Design: Slim profile minimizes cabinet space requirements while the front-mounted design ensures easy operator access and visibility.
• Long-Term Durability: Designed for continuous 24/7 operation with high-quality components, ensuring a long service life and minimal downtime in critical applications.

Application Scenarios

• Process Industries (Chemical & Petrochemical): Central HMI for DCS in refineries, chemical plants, and pharmaceutical facilities, monitoring reactors, distillation columns, and cleanroom processes.
• Power Generation: Operator interface for boiler control, turbine management, and auxiliary systems in thermal, hydro, and combined-cycle power plants.
• Oil & Gas: Control and monitoring of upstream drilling rigs, midstream pipeline networks, and downstream processing units.
• Water & Wastewater Treatment: Local control panel for pump stations, filtration systems, water purification, and distribution networks.
• Metals & Mining: Interface for high-temperature processes like smelters, rolling mills, and ore processing in dusty, demanding environments.
• Manufacturing & Machinery: HMI for assembly lines, packaging machinery, material handling systems, and machine tools in automotive and general manufacturing.
• Marine & Offshore: Certified for use on ships and offshore platforms, controlling propulsion, auxiliary systems, and safety equipment.
• Building Automation: Central control panel for HVAC, fire safety, and energy management systems in large commercial and industrial buildings.
• Food & Beverage: GMP-compliant interface for batch processing, packaging lines, and sanitary process monitoring in food and beverage production.
