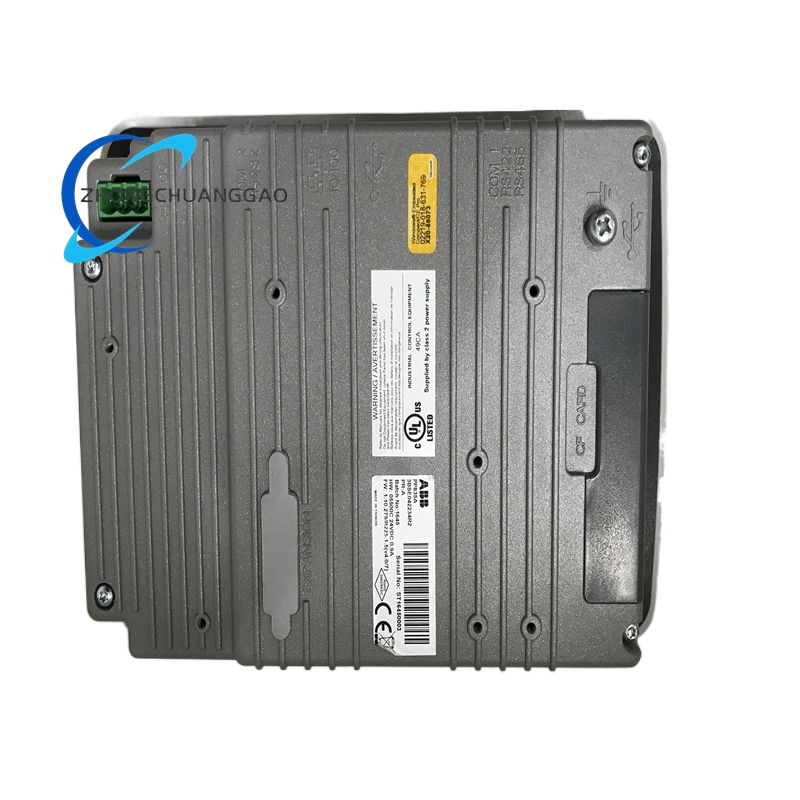

ABB PP835A Panel 800 Series Operator Touch Panel

Description

Technical Specifications

• Product Type: Industrial Operator Touch Panel / HMI Interface
• Product Series: ABB Panel 800
• Display: 5.7-inch TFT-LCD color display
• Display Resolution: 640 x 480 pixels (VGA)
• Touchscreen Technology: Capacitive multi-touch sensing
• Processor: High-performance 32-bit RISC processor
• Memory:
  • 512 MB RAM (for real-time data processing and application execution)
  • 4 GB internal flash memory (for project storage, data logging, and firmware)
• Operating System: Proprietary real-time operating system (RTOS)
• Communication Interfaces:
  • 1 x Ethernet port (10/100 Mbps)
  • 1 x RS-232 serial port
  • 1 x RS-485 serial port
  • 1 x USB 2.0 port
• Supported Communication Protocols:
  • Modbus RTU/TCP
  • PROFIBUS DP
  • PROFINET
  • OPC UA
  • CANopen
• Power Supply: 24 V DC (18–32 V DC range)
• Power Consumption: 8 W (typical)
• Physical Dimensions (W x H x D): 160 mm x 120 mm x 50 mm
• Weight: 0.5 kg (net)
• Operating Temperature: -20°C to +55°C
• Storage Temperature: -30°C to +70°C
• Ingress Protection: IP65 front panel, IP20 rear casing
• Housing Material: Rugged ABS plastic with aluminum internal frame
• Mounting: Front flush mounting for control cabinets
• Certifications: CE, UL, CSA, ATEX (hazardous area approved)

Key Functional Features

• Industrial-Grade Durability
  • IP65-rated front panel resists dust, moisture, oil, and chemical exposure.
  • Fanless, passive thermal design ensures maintenance-free, continuous operation.
  • Wide temperature tolerance supports deployment in harsh plant environments.
  • Shock and vibration resistant construction complies with IEC industrial standards.
• Intuitive Visualization & Interaction
  • 5.7-inch high-brightness VGA display delivers clear process data and graphics.
  • Capacitive touchscreen supports precise, responsive input with gloved operation.
  • Customizable mimic diagrams, trend charts, and digital dashboards for process visualization.
  • Integrated function keys and LED indicators for quick access to critical controls.
• High-Speed Performance
  • Powerful RISC processor ensures fast screen rendering and low-latency command response.
  • Real-time operating system guarantees deterministic performance for critical control tasks.
  • Large memory capacity supports complex HMI applications and extensive data logging.
  • Fast data acquisition and update rates for accurate real-time process representation.
• Comprehensive Communication & Integration
  • Multi-protocol support enables seamless connectivity with ABB controllers and third-party devices.
  • Ethernet interface facilitates connection to SCADA systems and industrial networks.
  • Serial ports support integration with legacy devices and field instrumentation.
  • USB port enables easy project transfer, firmware updates, and data backup.
• Advanced Alarm & Diagnostics
  • Centralized alarm management with prioritization, logging, and historical tracking.
  • Visual and audible alarm notifications for immediate anomaly detection.
  • Built-in hardware and communication diagnostics for proactive system health monitoring.
  • Detailed fault codes and event logs to support rapid troubleshooting.
• Flexible Engineering & Security
  • Compatible with ABB Control Builder software for intuitive application development.
  • Supports IEC 61131-3 standards for consistent programming and system integration.
  • Multi-level user access control with password protection for operational security.
  • Online configuration changes allow application updates without process interruption.
  • Compact form factor optimizes space usage for new installations and retrofits.

Application Scenarios

• Oil & Gas
  • Refinery process monitoring and control
  • Offshore platform operational interfaces
  • Pipeline and compressor station control
  • Tank farm inventory and safety system management
• Chemical & Petrochemical
  • Batch reactor control and recipe management
  • Distillation column monitoring and parameter adjustment
  • Hazardous area process interfaces (ATEX compliant)
  • Plant safety instrumented system (SIS) interaction
• Power Generation
  • Thermal power plant boiler and turbine control
  • Renewable energy plant monitoring (solar, wind, hydro)
  • Substation automation and load management
  • Grid stability and distribution control
• Water & Wastewater
  • Water treatment plant process control
  • Pumping station automation and monitoring
  • Water quality parameter adjustment and logging
  • Wastewater treatment facility operation interfaces
• Manufacturing & Machinery
  • Packaging line control and monitoring
  • Material handling and conveyor system operation
  • Assembly line process control and quality monitoring
  • Machine tool operation and parameter management
• Metals & Mining
  • Smelting and refining process control
  • Material handling and crushing plant monitoring
  • Rolling mill operational interfaces
  • Mine automation and safety system interaction
• Food & Beverage
  • Processing and packaging line control
  • Batch mixing, pasteurization, and sterilization
  • Hygienic process monitoring and quality control
  • Production efficiency and downtime tracking
• Building Automation
  • HVAC system control and monitoring
  • Facility energy management interfaces
  • Lighting and utility system operation
  • Building safety and access control integration
