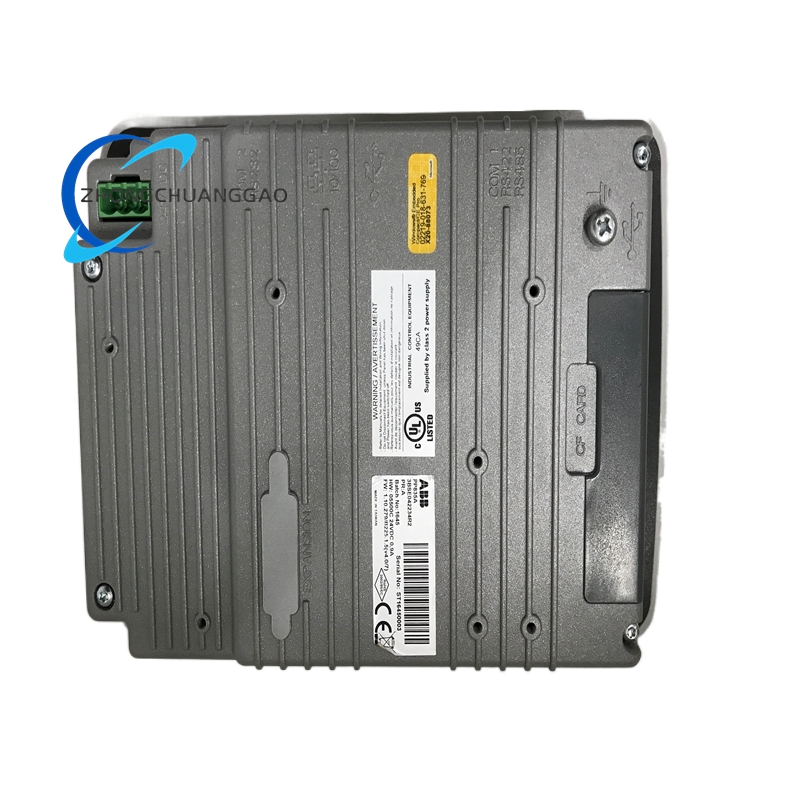

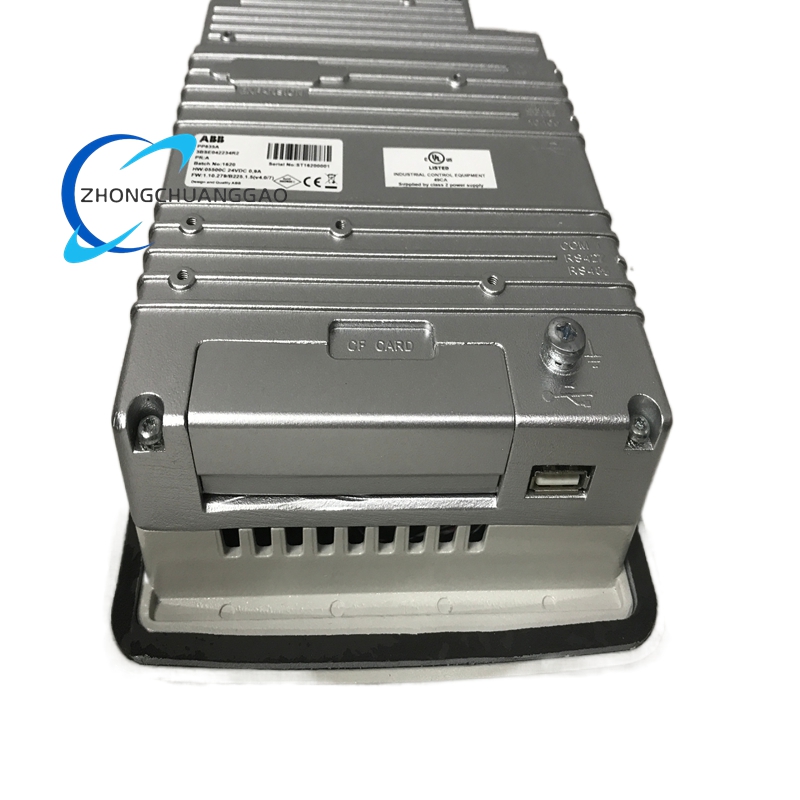

ABB PP835 Panel 800 Operator Interface Panel

Description

Technical Specifications

• Product Series
  • Panel 800
• Display
  • Type: 6.5-inch TFT color LCD
  • Resolution: 640 x 480 pixels (VGA)
  • Backlight: LED, with a lifetime exceeding 25,000 hours at 25°C
  • Touchscreen: Resistive touch technology
• User Interface
  • Function Keys: 20 dual-color backlit function keys
  • Emergency Stop Button: Integrated, for immediate safety shutdown
• Power Supply
  • Nominal Input: 24 V DC
  • Voltage Range: 19.2 V DC – 28.8 V DC
  • Power Consumption: Max 500 mA
• Communication Interfaces
  • Ethernet: 1 x shielded RJ45 port, 10/100 Mbps
  • Serial: 1 x RS-232/RS-485 configurable port
  • Memory Expansion: 1 x Compact Flash (CF) card slot, supporting Type I/II cards
• Physical Characteristics
  • Dimensions (W x H x D): 302 mm x 228 mm x 58 mm
  • Weight: 1.1 kg
  • Mounting: Front-panel flush mount
• Environmental Ratings
  • Operating Temperature: -20 °C to +55 °C
  • Storage Temperature: -40 °C to +70 °C
  • Front Protection Rating: IP66 (dust and water resistant)
  • Rear Protection Rating: IP20
• Certifications
  • CE, UL, ATEX (for hazardous areas)
• Software Compatibility
  • ABB Panel Builder 800 (for configuration and programming)

Key Features

• Dual Interaction Modes: Combines a responsive resistive touchscreen with 20 backlit function keys, offering flexible and precise operation for all user preferences.
• High-Visibility Display: Features a 6.5-inch VGA color display with long-life LED backlighting, ensuring clear readability of process data, trends, and alarms in various industrial lighting conditions.
• Superior Environmental Sealing: Boasts an IP66-rated front panel, providing complete protection against dust, splashing water, and oil, making it suitable for harsh factory floors.
• Reliable Industrial Communication: Equipped with 10/100 Mbps Ethernet and serial ports, supporting standard protocols like Modbus TCP/RTU for seamless connectivity to controllers and plant networks.
• Flexible Data Storage: Integrated CF card slot enables easy project backup, data logging, and system cloning, simplifying deployment and maintenance.
• Enhanced Operational Safety: Includes a dedicated, easily accessible emergency stop button to initiate immediate process shutdown for critical safety situations.
• Customizable Interface: Fully configurable via ABB Panel Builder 800 software, allowing creation of tailored process screens, alarm lists, and user-specific function key assignments.
• Durable Construction: Engineered with industrial-grade materials to withstand vibration, temperature fluctuations, and continuous operation, ensuring long-term reliability.
• Compact & Space-Efficient: Optimized form factor for flush mounting in control panels, minimizing required cabinet space while maximizing operator accessibility.

Application Scenarios

• Process Control Systems: Primary operator interface for ABB Freelance and AC 900F DCS in chemical, petrochemical, and oil & gas plants.
• Power Generation: Monitoring and control of boilers, turbines, and auxiliary systems in thermal, hydro, and combined-cycle power plants.
• Water & Wastewater: Local control panel for pump stations, filter processes, and water distribution networks.
• Manufacturing & Machinery: HMI for assembly lines, packaging machines, and material handling equipment in automotive and general manufacturing.
• Metals & Mining: Interface for controlling smelters, rolling mills, and ore processing in high-temperature, high-dust environments.
• Pharmaceutical & Food & Beverage: GMP-compliant interface for process monitoring and batch control in cleanroom production facilities.
• Marine & Offshore: Control and monitoring of shipboard systems and offshore platforms, certified for harsh marine environments.
• Building Automation: Central control panel for HVAC, fire safety, and energy management systems in large commercial and industrial buildings.
