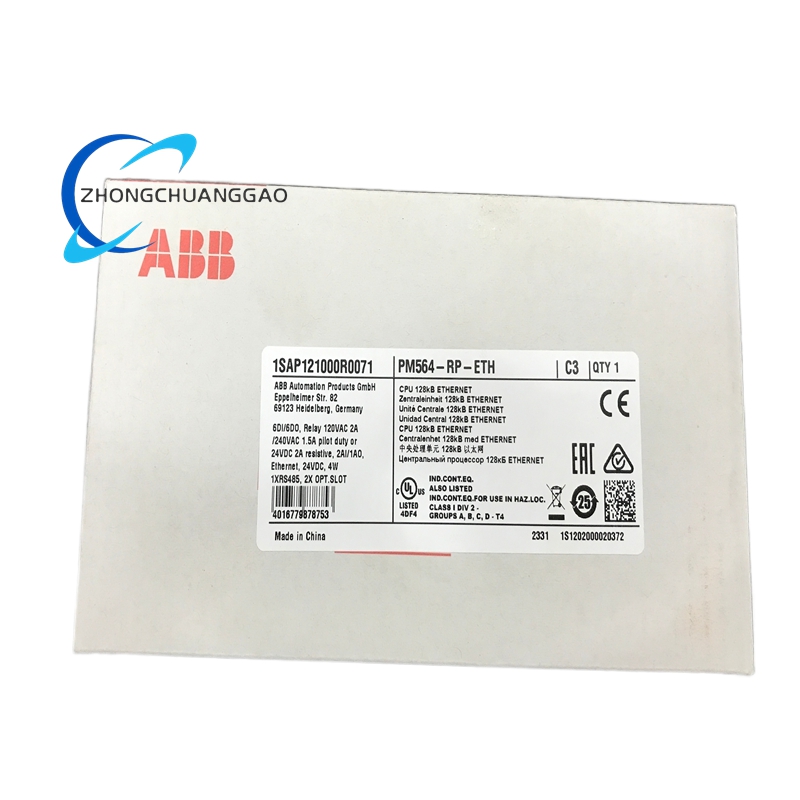

ABB PM564-RP-ETH AC500-eCo CPU Module

Description

Technical Specifications

• Product Series
  • AC500-eCo
• Processor
  • 32-bit high-performance processor
  • Instruction execution time: 0.08 µs per instruction
• Memory
  • User program memory: 128 KB
  • Non-volatile data memory: Integrated
  • Optional SD card support: Up to 32 GB for program backup & data logging
• Power Supply
  • Nominal input: 24 V DCABB Group
  • Voltage range: 19.2 V DC – 28.8 V DC
  • Current consumption: 120 mA at 24 V DC
• Built-in I/O Configuration
  • Digital Inputs (DI): 6 channels, 24 V DCABB Group
  • Digital Outputs (DO): 6 channels, relay outputABB Group
  • Analog Inputs (AI): 2 channelsABB Group
  • Analog Outputs (AO): 1 channelABB Group
• Communication Interfaces
  • Ethernet: 1 port (RJ45), 10/100 MbpsABB Group
  • Serial (COM1): 1 x RS-485ABB Group
  • USB: 1 x Mini-B, for programming & service
• Supported Protocols
  • Ethernet: Modbus TCP, HTTP, FTP, SNTP, DHCPABB Group
  • Serial: Modbus RTU, ASCII, CS31ABB Group
• Expansion Capability
  • Local I/O expansion: Up to 10 additional S500/S500-eCo I/O modules
  • Max local I/O channels: Up to 335 mixed I/O points
• Physical Dimensions
  • 164 mm x 73 mm x 98 mm (W x H x D)
• Weight
  • 0.282 kg
• Operating Temperature
  • -25 °C to +60 °C
• Storage Temperature
  • -40 °C to +85 °C
• Protection Rating
  • IP20 (panel/rack mount)
• Certifications
  • CE, UL, Class I Div 2 Groups A,B,C,D-T4
• Mounting
  • DIN-rail mountable

Key Features

• Integrated I/O & Processing: Combines 6 DI, 6 DO (relay), 2 AI, 1 AO with a high-speed processor to deliver a complete control solution in one compact unitABB Group.
• Onboard Ethernet Connectivity: Features a 10/100 Mbps Ethernet port supporting Modbus TCP, web server, FTP, and SNTP protocols for seamless network integration, remote monitoring, and program upload/downloadABB Group.
• High-Speed Performance: Executes instructions at 0.08 µs per instruction, ensuring rapid response and precise control for real-time automation tasks.
• Flexible Serial Communication: Equipped with RS-485 (COM1) supporting Modbus RTU/ASCII and CS31 bus for connecting to remote I/O, HMIs, and field devicesABB Group.
• Robust Expansion: Supports up to 10 additional S500/S500-eCo I/O modules, enabling system scaling up to 335 local I/O channels to match application growth.
• Flexible Data Storage: Integrates non-volatile memory and supports an optional SD card (up to 32 GB) for secure program backup, data logging, and easy system cloning.
• Industrial Durability: Operates reliably across a wide temperature range (-25 °C to +60 °C) and carries hazardous location certifications (Class I Div 2), suitable for harsh industrial settings.
• Compact & Space-Saving: Low-profile, DIN-rail mount design minimizes cabinet space usage, ideal for small control panels and machine-mounted applications.
• User-Friendly Maintenance: USB port enables direct programming and diagnostics; hot-swappable module design simplifies installation and replacement.
• Multi-Protocol Support: Compatibility with standard industrial protocols ensures interoperability with ABB and third-party devices, reducing integration complexityABB Group.

Application Scenarios

• Factory Automation: Controls conveyors, packaging machines, assembly lines, and material handling systems in small-to-medium manufacturing setups.
• Food & Beverage Industry: Manages temperature control, mixing processes, filling lines, and packaging equipment with precise analog and digital control.
• HVAC & Building Automation: Regulates ventilation, heating, cooling systems, pumps, and fans in commercial and industrial building management.
• Water & Wastewater Treatment: Automates pump control, valve actuation, level monitoring, and filtration processes in small-scale water systems.
• Machine Building: Integrated into original equipment manufacturer (OEM) machinery such as small presses, mixers, and specialized industrial equipment.
• Agricultural Automation: Controls irrigation systems, grain handling equipment, and greenhouse climate regulation.
• Textile & Printing Machinery: Drives tension control, speed regulation, and sequence control for textile and printing machines.
• Packaging & Labeling: Manages indexing, sealing, labeling, and sorting operations in standalone packaging units.
