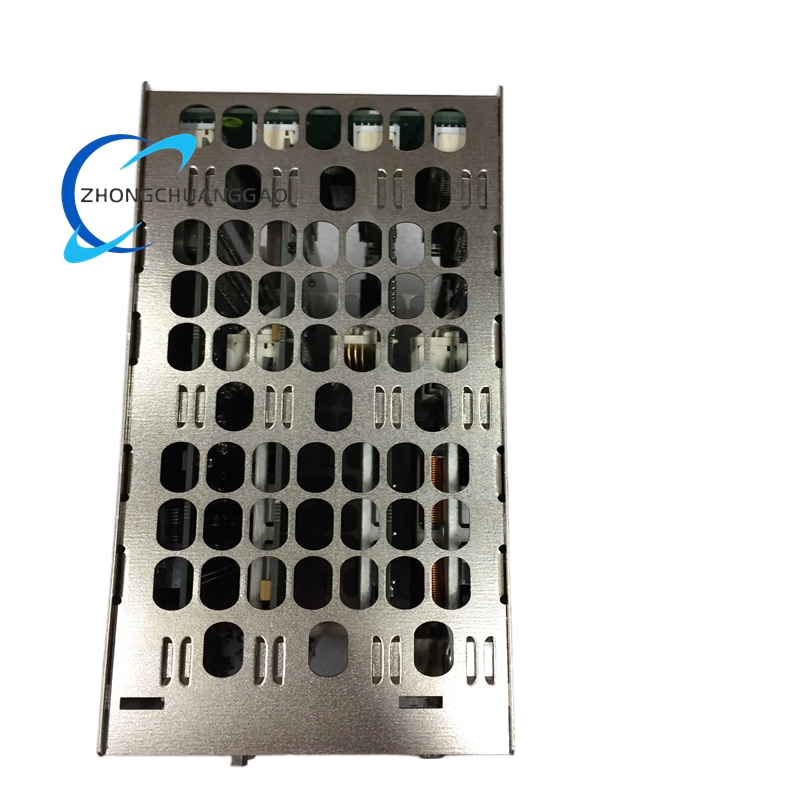

ABB PM150V08 Processor Module

Description

Technical Specifications

• Product Type: Central Processor Module (CPU)
• Compatible Systems: ABB AC410, Advant OCS, Advant Master DCS
• Processor: Motorola MC68020 32-bit high-performance microprocessor
• Processing Performance: 120 MIPS (Million Instructions Per Second)
• Internal Memory:
  • RAM: 8 MByte dynamic RAM with ECC (Error-Correcting Code)
  • Flash Memory: 8 MByte onboard flash ROM
  • Expansion Memory: PCMCIA slot for optional flash memory card expansion
• Power Supply: 24 VDC (nominal), 18–32 VDC operating range
• Power Consumption: Typical 15 W, low energy design
• Physical Dimensions (W × H × D): 234 mm × 99 mm × 216 mm
• Weight: 2.85 kg
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% non-condensing
• Protection: Industrial-grade anti-vibration, anti-shock, and electromagnetic interference (EMI) protection
• Communication Interfaces:
  • RS-232: Serial interface for engineering terminal connection
  • RS-485: Multi-drop serial bus for field device communication
  • Ethernet: 10/100 Mbps port for system networking and remote monitoring
  • System Bus: Proprietary parallel bus for high-speed connection to I/O racks
• Certifications: CE, UL, ATEX (for hazardous areas), compliant with IEC 61010 and EMC standards

Key Features

• High-Speed Processing Capability:
  • Equipped with a 32-bit Motorola MC68020 processor delivering 120 MIPS for fast execution of complex control logic.
  • ECC memory technology detects and corrects single-bit data errors, eliminating data corruption and ensuring system stability.
  • Supports multi-tasking operations, simultaneously handling process control, data acquisition, communication, and diagnostics.
• Advanced Memory Architecture:
  • 8 MByte ECC RAM accommodates large user programs and real-time process databases.
  • Onboard 8 MByte flash ROM stores system firmware and user application code.
  • PCMCIA card slot enables easy software upgrades, data logging, and application backup without system shutdown.
• Comprehensive Communication Suite:
  • Multiple built-in interfaces support seamless connection to engineering workstations, HMI, I/O modules, and third-party devices.
  • Supports standard protocols including Modbus RTU/ASCII, Profibus DP, and TCP/IP for versatile system integration.
  • High-speed proprietary bus ensures low-latency data exchange with local and remote I/O subsystems.
• Industrial-Grade Reliability:
  • Rugged hardware design withstands extreme temperatures, high vibration, and electrical noise.
  • Supports 1:1 redundant configuration with automatic failover for uninterrupted operation.
  • Built-in self-diagnostic routines continuously monitor module health, with LED status indicators for quick fault identification.
  • Hot-swappable design allows module replacement under power without system downtime.
• Flexible System Integration:
  • Fully backward compatible with legacy ABB PM150 series modules, simplifying system upgrades.
  • Supports centralized and distributed control architectures for scalable system design.
  • Compatible with ABB Control Builder M engineering tools for intuitive programming, configuration, and debugging.

Application Scenarios

• Power Generation:
  • Boiler control, turbine governing, and auxiliary systems in thermal, hydro, and gas power plants.
  • Grid interconnection and load distribution control systems.
• Oil & Gas Industry:
  • Process control for refineries, offshore platforms, and pipeline transportation.
  • Distillation, cracking, and storage terminal automation systems.
• Chemical & Pharmaceutical:
  • Precision control for chemical reactors, polymerization, and batch processing.
  • Cleanroom and pharmaceutical manufacturing process automation.
• Metals & Mining:
  • Control systems for steel rolling mills, smelting furnaces, and continuous casting lines.
  • Ore processing and material handling automation.
• Water & Wastewater:
  • SCADA and process control for water purification, sewage treatment, and pumping stations.
  • Reservoir and distribution network management systems.
• Paper & Pulp:
  • Web tension control, drying, and calendering process automation.
  • Pulp cooking, bleaching, and paper machine control systems.
• Cement & Glass:
  • Kiln control, raw material grinding, and clinker production automation.
  • Glass melting, forming, and quality control processes.
• Food & Beverage:
  • Batch processing, mixing, and packaging line control.
  • Hygienic process automation for beverage and dairy production.
