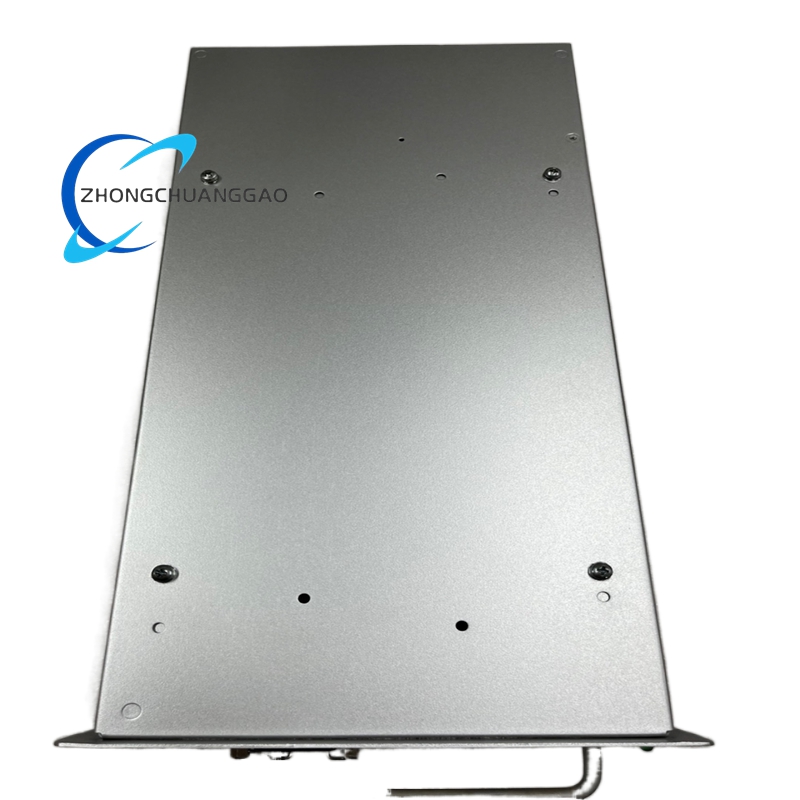

ABB PHARPS320000000 Modular Power Supply Module

Description

Technical Specifications

• Product Series
  • Modular Power System III (MPS III)
• Input Voltage
  • 90–264 V AC, single-phase, 47–63 Hz
  • Input Current: 11.5 A @ 100 V AC
  • Input Power: 1150 VA
• Output Configuration
  • 5 V DC @ 60 A
  • +15 V DC @ 3 A
  • -15 V DC @ 3 A
  • 24 V DC @ 17 A
  • Total Output Power: 900 W
• Efficiency
  • Greater than 90%
• Physical Dimensions
  • 229 mm (W) x 457 mm (H) x 203.2 mm (D)
• Weight
  • 6.36 kg
• Operating Temperature
  • -20 °C to +70 °C
• Storage Temperature
  • -40 °C to +85 °C
• Protection Rating
  • IP20 (rack-mounted)
• Certifications
  • CE, UL
• Mounting
  • Standard 3U rack-mountable design
• Origin
  • Sweden

Key Features

• Multi-Voltage Outputs: Provides four independent, isolated DC voltage outputs (5V, ±15V, 24V) to directly power a wide range of DCS components, eliminating the need for external converters.
• High Efficiency: Operates at over 90% efficiency, minimizing power loss, reducing heat generation, and lowering long-term operational costs.
• Wide Input Voltage Range: Accepts 90–264 V AC input, ensuring global compatibility and stable performance under voltage fluctuation conditions.
• Hot-Swap Capability: Supports hot-swapping in redundant configurations, allowing module replacement without system shutdown, drastically reducing maintenance downtime.
• Comprehensive Protection: Integrates overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection, and overtemperature protection to safeguard the module and all connected control system hardware.
• Galvanic Isolation: Full galvanic isolation between input and outputs, and between output channels, enhances noise immunity and protects sensitive control circuitry.
• Robust Industrial Design: Constructed to withstand high levels of vibration, humidity, and dust, ensuring reliable performance in extreme industrial environments.
• Advanced Thermal Management: Optimized internal layout and heat sink design for efficient cooling, enabling continuous full-load operation across the entire temperature range.
• Redundancy Support: Designed for parallel operation to create N+1 redundant power systems, ensuring seamless failover and maximizing system uptime for critical processes.
• System Compatibility: Fully integrated and certified for use with ABB Bailey INFI 90 and Network 90 DCS platforms, ensuring seamless interoperability.

Application Scenarios

• Power Generation: Provides reliable power for turbine control systems, boiler protection systems, and substation automation in coal, gas, hydro, and nuclear power plants.
• Oil & Gas Industry: Supports critical control systems for upstream drilling, midstream pipeline monitoring, and downstream refinery processes.
• Chemical & Petrochemical Processing: Ensures stable power for DCS controlling chemical reactors, distillation columns, and safety instrumented systems (SIS).
• Water & Wastewater Treatment: Powers automation systems for pump control, filtration, purification, and distribution networks.
• Metals & Mining: Used in control systems for ore processing, smelting, rolling mills, and material handling operations.
• Pharmaceutical Manufacturing: Supports precise, regulatory-compliant process control in production and packaging lines.
• Paper & Pulp Industry: Delivers consistent power for web handling, drying, and winding control systems.
• Cement & Glass Manufacturing: Ensures reliable operation of automation systems in high-temperature and high-dust production environments.
