Product Short Description

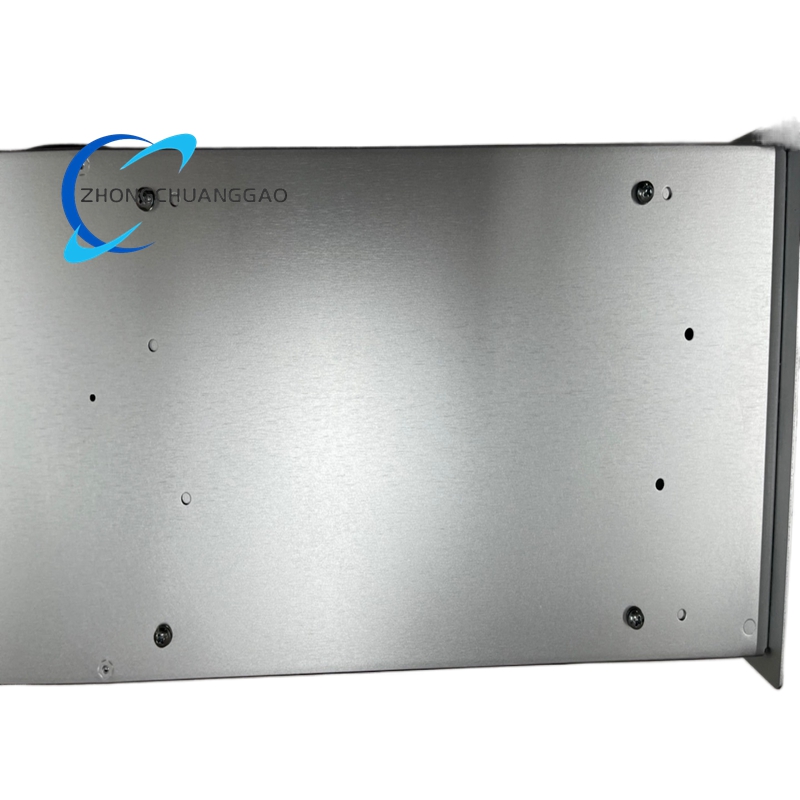

The ABB PHARPS03000000 is a high-performance, industrial-grade power supply module, belonging to ABB’s Modular Power System III (MPS III) family. It is engineered specifically for ABB Bailey Infi 90 and Net 90 Distributed Control System (DCS) platforms, serving as a critical component to deliver stable, regulated power to control systems, I/O modules, processors, and field instrumentation. Designed for continuous operation in demanding industrial environments, this module ensures high reliability, efficiency, and consistent performance to support uninterrupted industrial process control.
Description
Technical Specifications
- Product Series
- Modular Power System III (MPS III)
- Input Voltage
- 85 – 264 V AC (wide range, single-phase)
- Output Configuration
- Dual isolated 24 V DC outputs
- Output Current: 17 A per channel (total 34 A)
- Output Power: Total 816 W (408 W per channel)
- Efficiency
- Up to 98%
- Physical Dimensions
- 229 mm x 102 mm x 457 mm (W x D x H)
- Weight
- 4.5 kg
- Operating Temperature
- -20°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Protection Rating
- IP20 (panel/rack mount)
- Certifications
- CE, UL
- Mounting
- 3U rack-mountable design
- Origin
- Sweden
Key Features
- Dual Isolated Outputs: Provides two independent 24 V DC power channels, offering redundancy and flexibility to power separate system segments.
- Ultra-High Efficiency: Operates at up to 98% efficiency, minimizing energy loss, reducing heat generation, and lowering operational costs.
- Wide Input Voltage Range: Accepts 85–264 V AC input, ensuring compatibility with global power standards and resilience against voltage fluctuations.
- Industrial-Grade Robustness: Constructed with high-quality components to withstand vibration, dust, and humidity, ensuring stable operation in harsh manufacturing conditions.
- Comprehensive Protection Mechanisms: Integrates built-in overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection, and overtemperature protection to safeguard the module and connected equipment.
- Advanced Thermal Management: Optimized internal design and heat dissipation for reliable continuous operation at full load within a wide temperature spectrum.
- Modular & Compact Design: 3U rack-mount form factor saves cabinet space and allows for easy installation, replacement, and system scalability.
- High Reliability: Designed for extended service life with minimal maintenance, supporting high Mean Time Between Failures (MTBF) for critical DCS applications.
- System Compatibility: Fully integrated and certified for use with ABB Bailey Infi 90 and Net 90 control systems, ensuring seamless interoperability.
Application Scenarios
This power supply module is deployed exclusively in mission-critical industrial automation and process control environments, primarily:
- Power Generation & Transmission: Supports control systems in coal-fired, gas, hydro, and nuclear power plants, as well as substation automation.
- Oil & Gas Industry: Provides stable power for upstream drilling controls, midstream pipeline monitoring, and downstream refinery process systems.
- Chemical & Petrochemical Processing: Ensures reliable power for DCS controlling chemical reactions, material handling, and safety instrumented systems.
- Water & Wastewater Treatment: Powers automation for pump control, filtration, purification, and distribution processes.
- Metals & Mining: Used in control systems for ore processing, smelting, rolling mills, and material handling lines.
- Pharmaceutical Manufacturing: Supports precise process control in regulated production and packaging lines.
- Paper & Pulp Industry: Ensures consistent power for web handling, drying, and winding control systems.
- General Manufacturing: Provides power for automated assembly lines, PLCs, and complex industrial machinery control systems.
