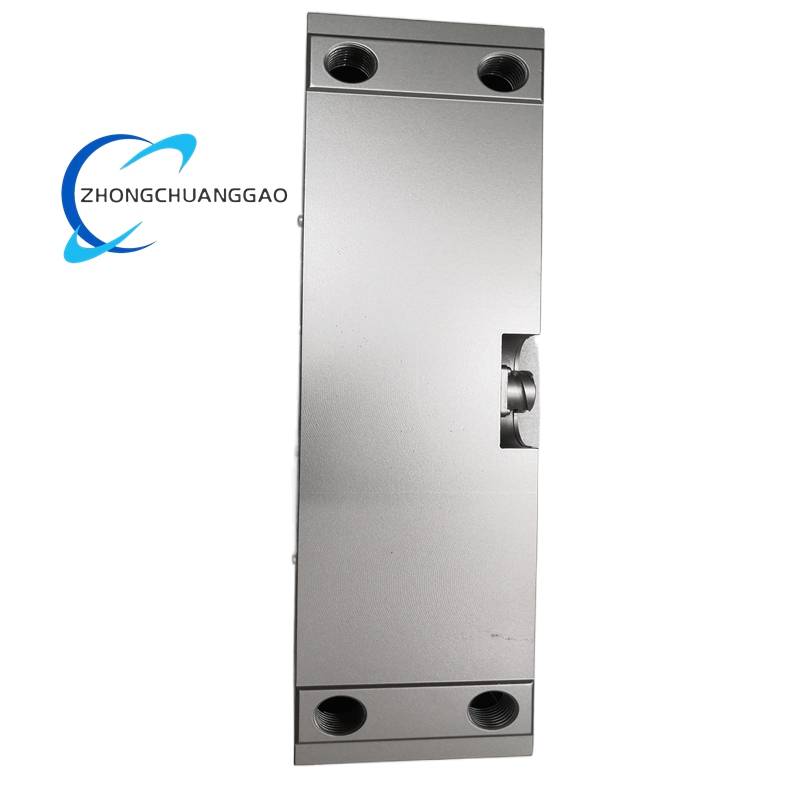

ABB PFTL201C 10KN Pressductor PillowBlock Load Cell

Description

Technical Specifications

• Product Type: Pressductor PillowBlock Load Cell
• Rated Capacity: 10 kN (0-10 kN measurement range)
• Extended Load Capacity: 15 kNABB Group
• Accuracy Class: 0.05
• Non-Linearity: ±0.05% FSO
• Hysteresis: ±0.05% FSO
• Repeatability: ±0.05% FSO
• Creep: ±0.05% FSO / 30 min
• Sensitivity: 2 mV/V
• Excitation Voltage: 10-30 VDC
• Input Resistance: 350 Ω ± 10 Ω
• Output Resistance: 350 Ω ± 10 Ω
• Insulation Resistance: >5000 MΩ (at 50 VDC)
• Zero Balance: ±1% FSO
• Transverse Load Capacity: 100 kN (vertical direction)ABB Group
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Protection Degree: IP67
• Construction: High-strength stainless steel
• Electrical Connection: Standard Cannon connector
• Cable Length: 3 m (standard)
• Mounting: PillowBlock design, mounted between machine frame and bearing housing
• Certifications: CE, UL

Key Features

• Advanced Pressductor Technology:
  • Utilizes magnetoelastic effect for measurement, ensuring superior stability and resistance to temperature drift.
  • Provides high-power, low-impedance AC output signals immune to electrical interference and ground faults.
  • Exhibits exceptional resistance to overload, shock, vibration, and long-term fatigue.
• High Precision Measurement:
  • Delivers 0.05% accuracy for ultra-precise tension monitoring.
  • Measures horizontal force component exclusively, eliminating roller weight interference.
  • Factory calibrated and temperature compensated for immediate deploymenteero.
• Robust Industrial Design:
  • Stainless steel construction with IP67 protection, suitable for harsh, wet, and corrosive environments.
  • Compact PillowBlock form factor for easy installation and integration.
  • High transverse load capacity ensures stability under multi-directional forcesABB Group.
• Reliable Performance:
  • Virtually unlimited mechanical cycle life with no degradation in performance.
  • Minimal maintenance requirements and long service life.
  • Stable output with minimal drift over extended operational periods.
• System Compatibility:
  • Seamlessly integrates with ABB PFEA series tension controllers and other industrial control systems.
  • Compatible with standard PLC and DCS systems for closed-loop control.

Application Scenarios

• Metal Processing Industry:
  • Steel and aluminum rolling mills, hot and cold rolling lines.
  • Metal strip pickling, annealing, and galvanizing lines.
  • Slitting, cut-to-length, and coating lines for metal sheets.
• Paper and Pulp Industry:
  • Paper machines, pulp drying lines, and calendar machines.
  • Rewinding, slitting, and paper converting operations.
• Plastics and Film Industry:
  • Film extrusion, blowing, and laminating lines.
  • Plastic sheet and foil manufacturing and processing equipment.
• Textile Industry:
  • Yarn spinning, fabric weaving, and dyeing processes.
  • Non-woven fabric production lines.
• Cable and Wire Manufacturing:
  • Wire drawing, stranding, and cable sheathing lines.
  • Optical fiber manufacturing and processing equipment.
• Converting and Packaging:
  • Flexible packaging, label printing, and foil converting machines.
  • Adhesive coating and laminating processes.
• Battery and Photovoltaic Industry:
  • Electrode foil coating lines for lithium-ion batteries.
  • Silicon wafer and solar panel production lines.
