Product Short Description

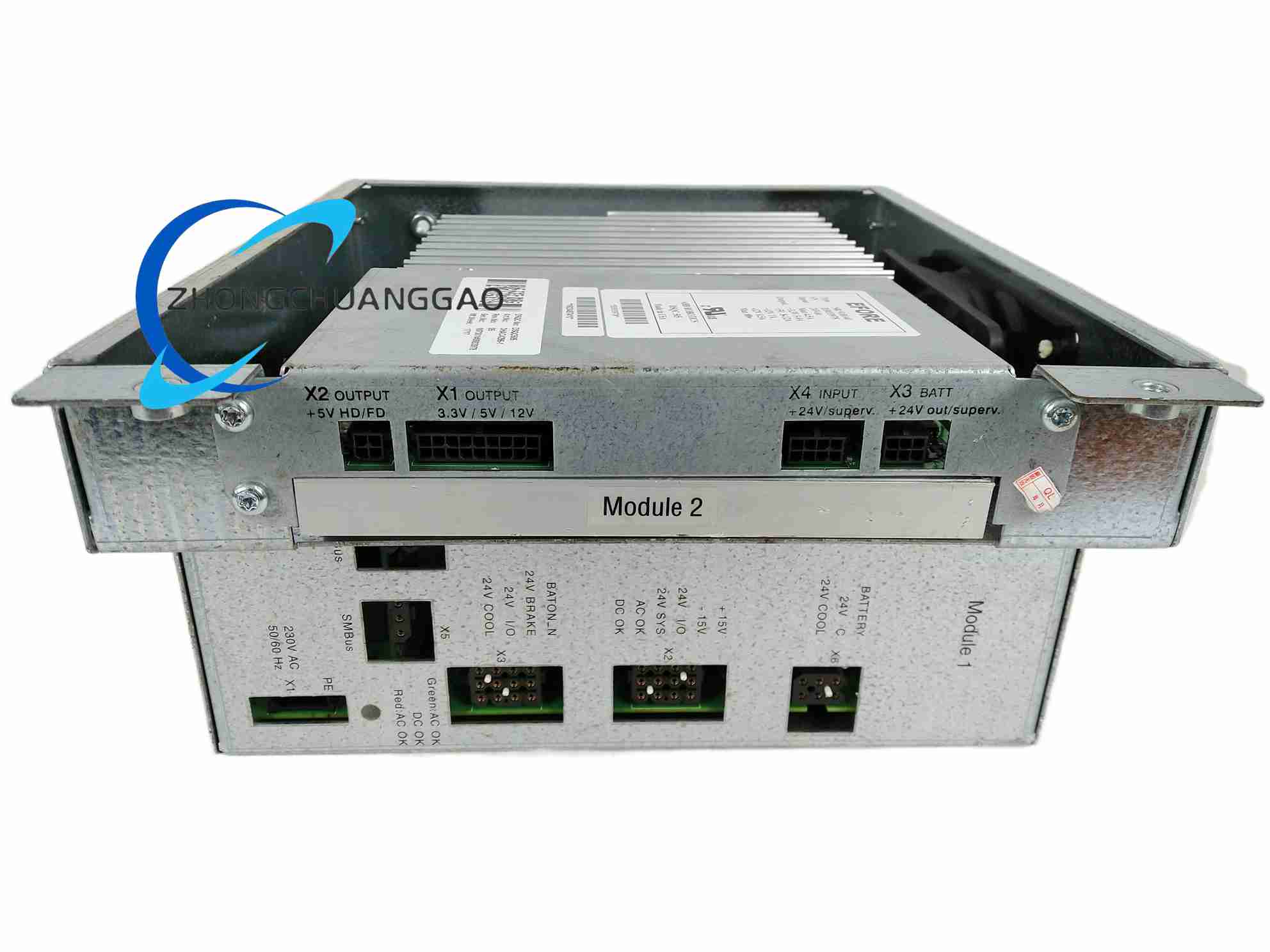

Product Name: ABB DSQC336 3HNE04092-1 Robot Ethernet Board
Product Overview: A robot ethernet communication board and power supply module for ABB robotic control systems (e.g., IRB 5400 robots), enabling high-speed data exchange over industrial Ethernet networks.
Technical Specifications:
- Product Type: Robot Ethernet Board / Robot Accessory
Description
- Power Supply: 24 VDC
- Voltage Tolerance: 18–30 VDC
- Current Consumption: < 1 A
- Data Rate: 10/100/1000 Mbps
- Protocols: Ethernet/IP, Modbus TCP
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: -20 °C to +70 °C
- Tariff Code: 8537101190
- Country of Origin: Sweden
- Estimated Shipping Size: 18.6 × 6.1 × 6 cm
- Weight: 0.4 kg (some configurations 1.32 kg)
- Condition: Factory New
Structural & Material Features: Engineered as a robotic control system component with standard industrial board construction, designed for panel mounting within ABB robot controller cabinets.
Working Principle: Serves as the Ethernet communication interface linking the ABB robot controller to Ethernet/IP or Modbus TCP networks, enabling high-speed data exchange for industrial automation and process control.
Application Scenarios: ABB robotic control systems requiring Ethernet connectivity; integration into DCS/PLC system architectures for industrial automation.
Installation & Usage Notes: Ensure the 24 VDC supply is within the 18–30 VDC tolerance range. Maintain operating environment within 0–55 °C. Install as a robot accessory in accordance with ABB controller mounting guidelines.
