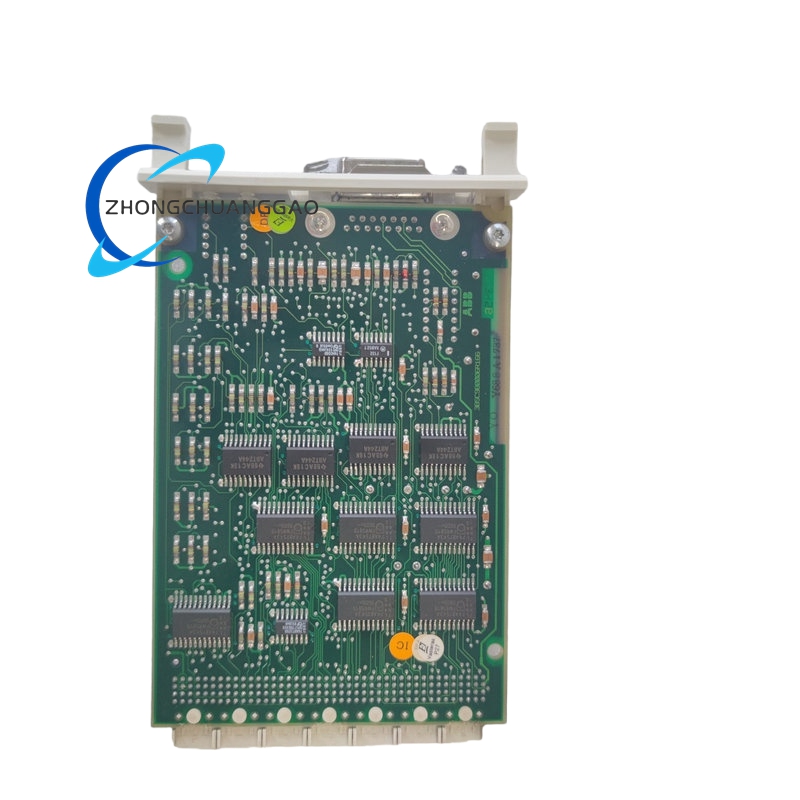

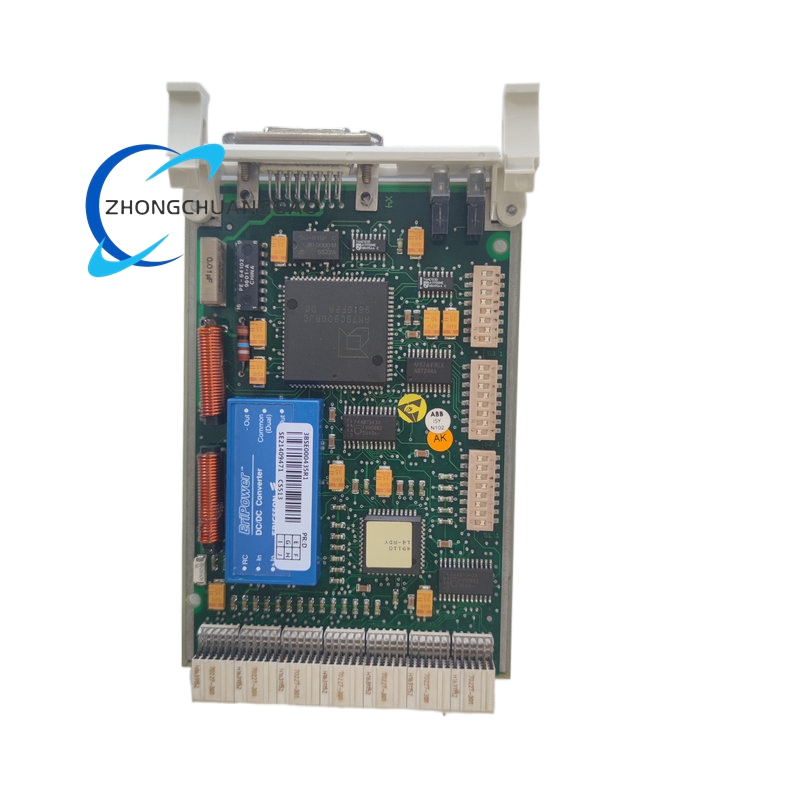

ABB CS513 3BSE000435R1

Description

Technical Specifications:

• Manufacturer: ABB

• Model: CS513

• Order Code: 3BSE000435R1

• Series: ABB S500 Series / Advant OCS Series

• Communication Standards: IEEE 802.3 (Ethernet)

• Communication Rate: 10/100 Mbps adaptive

• Interface Type: RJ45 Ethernet port; RS-485

• PROFIBUS DP: Maximum 12 Mbps

• MODBUS RTU: Maximum 19.2 kbps

• ASCII: Maximum 38.4 kbps

• Digital I/O: 32 channels digital input (DI); 16 channels digital output (DO)

• Protection Rating: IP20

• Operating Temperature: -25°C to +55°C; -25°C to +70°C per some sources

• Design: Modular industrial controller with advanced microchip technology

• Power Design: Redundant power supply support

Functional Features:

• High-speed, low-power, high-reliability operation for complex industrial automation scenarios

• Supports multiple industrial protocols for diverse application requirements

• High-speed communication capability for industrial automation system networking

• 32 digital input and 16 digital output channels for direct field device connectivity

• Redundant power supply design for high availability

Performance Parameters:

• PROFIBUS DP communication up to 12 Mbps

• Ethernet communication at 10/100 Mbps adaptive

• Wide operating temperature range down to -25°C

Material Composition: Industrial-grade components designed for harsh environment operation.

Structural Features: Modular form factor for S500 or Advant OCS rack mounting. IP20 protection rating requires installation within control cabinet.

Working Principle: The CS513 module functions as an I/O and communication interface within ABB’s S500 or Advant OCS control systems. It acquires digital input signals from field devices, drives digital output actuators, and communicates with higher-level controllers via PROFIBUS DP, Modbus RTU, or Ethernet protocols.

Advantages and Highlights:

• High-speed communication: PROFIBUS DP up to 12 Mbps

• 32 DI / 16 DO channels for dense I/O integration

• Redundant power supply design for system reliability

• Wide operating temperature range: -25°C to +70°C

• Multiple protocol support: PROFIBUS DP, Modbus RTU, ASCII, Ethernet

• IP20 protection with cabinet installation

Applicable Industries:

• Distributed Process Control

• Discrete Manufacturing

• Oil and Gas

• Chemical Processing

• Metallurgy

• Water and Wastewater Treatment

Model Series: ABB S500 Series / Advant OCS Series

Installation Requirements:

• Installs into compatible ABB S500 or Advant OCS rack system

• Requires installation within control cabinet due to IP20 rating

• PROFIBUS DP network connection via RS-485

• Ethernet connection via RJ45 port

• Redundant power supply connection recommended for high availability

Usage Precautions:

• Operate within specified temperature range: -25°C to +55°C

• Ensure proper cabinet ventilation

• Follow ESD precautions during installation and maintenance

• Verify correct I/O wiring polarity and voltage levels

• Use appropriate shielded cables for communication networks
