Product Short Description

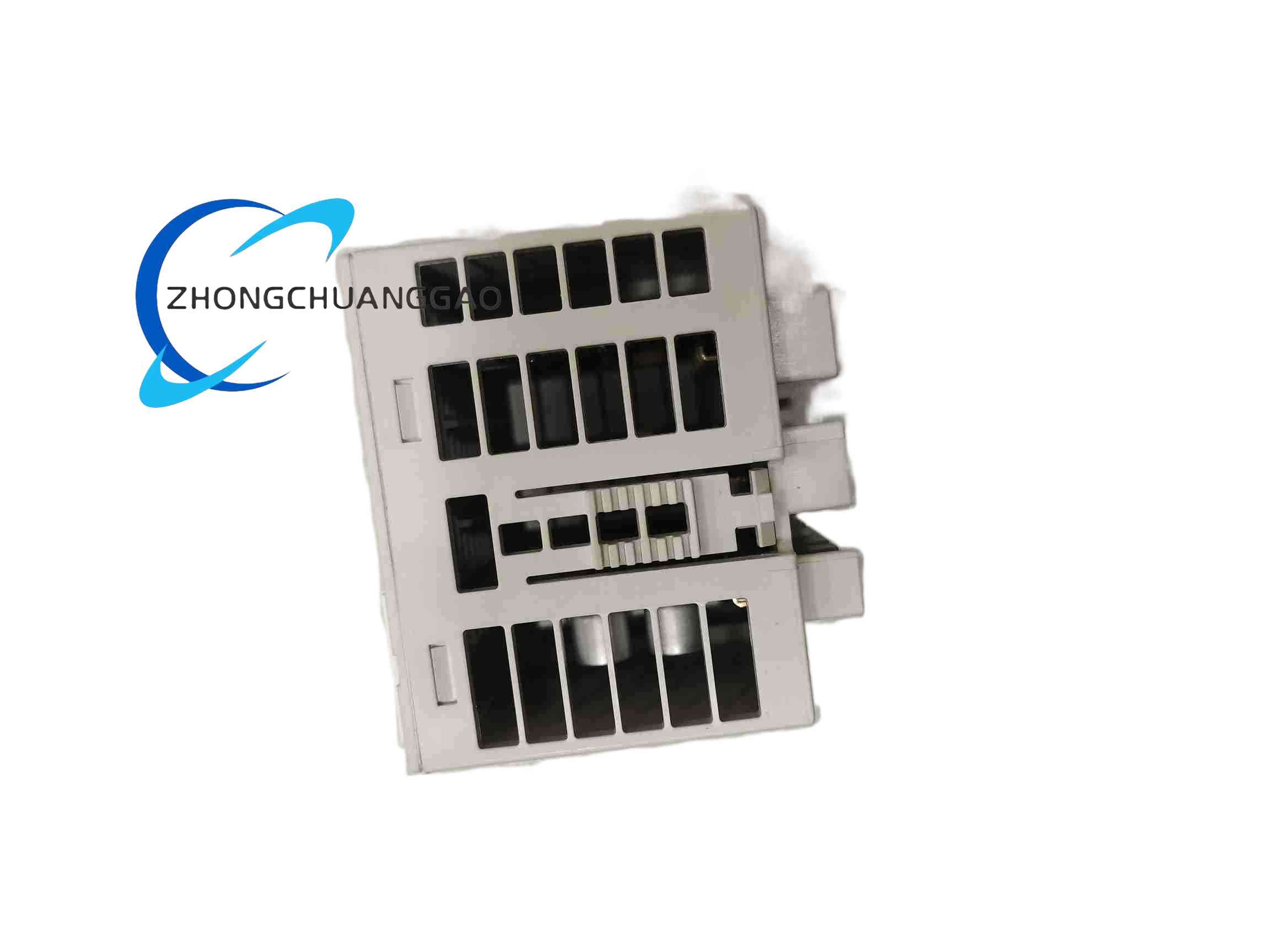

Product Overview: The ABB AI723F is a high-density analog input module in the S700 I/O series. It offers 16 independently configurable channels that can be set to voltage input (0…10 V or –10…+10 V), current input (0…20 mA or 4…20 mA), or temperature measurement via platinum/nickel RTD (Pt100, Pt1000, Ni1000) in 2-wire or 3-wire configuration. The module can also function as digital inputs. It is used either as direct I/O for AC 700F and AC 900F Freelance controllers, or as PROFIBUS remote I/O. Each channel is electrically isolated from the module’s internal electronics.
Description
Technical Specifications:
-
Article Number: 3BDH000376R0005
-
Number of Channels: 16, arranged in 2 groups of 8
-
Signal Types: Voltage 0…10 V / –10…+10 V (12-bit + sign), Current 0…20 mA / 4…20 mA (12-bit), Temperature via RTD
-
Conversion Error: Typ. 0.5 %, max. 1 % (non-linearity and calibration)
-
Input Signal Delay: Typ. 8 ms
-
Isolation: Electrical isolation between channels and module electronics (no potential separation between channels)
-
Internal Power: Supplied via I/O-Bus expansion bus
-
External Power: 24 V DC at terminals ZP/UP; max. ripple 5 %; reverse-polarity protected; UP fuse 10 A
-
Current Consumption (UP): 0.15 A normal, 0.05 A surge for 2 s
-
Status Indication: 19 LEDs for signal and fault status
-
Cable Length (max): 100 m with twisted pair ≥ 0.14 mm²
-
Dimensions (without terminal unit): 67.5 × 76 × 54 mm
-
Weight: 300 g
-
Mounting: Horizontal, or vertical with derated output (load reduced 50 %, operating temp. limited to 40 °C)
-
Cooling: Natural convection, not obstructed by cable trays or neighbouring components
-
Compliance: cULus, UL Class I Division 2 (Groups A–D)
Key Features:
-
Software-configurable per channel — no hardware change needed when switching between voltage, current or RTD
-
16 channels in a compact module reduce I/O rack space and wiring complexity
-
Channels isolated from internal electronics for improved noise immunity
-
Direct I/O capability for AC 700F/AC 900F controllers, or PROFIBUS DP remote I/O
-
Per-channel LED indication simplifies troubleshooting
-
Hazardous-location certified (UL Class I Div 2)
Application Scenarios: Chemical process control, metallurgical rolling mills, power monitoring, large municipal pumping stations, and any application requiring flexible, high-density analog signal acquisition.
Installation Requirements:
-
Install the module on the S700 I/O bus or PROFIBUS remote I/O station
-
Connect the external 24 V DC process voltage to terminals 1.8–4.8 (UP) and 1.9–4.9 (ZP)
-
Mount horizontally for full-rated operation; if vertical mounting is unavoidable, derate accordingly
-
Ensure natural convection is not blocked by adjacent components or cable trays
-
Use shielded twisted-pair cable for analog signals; keep within 100 m length
Usage Notes:
-
Configure unused voltage-input channels as “unused” and leave unused current-input channels open (they have a lower resistance allowing open state)
-
Avoid exceeding the 30 V maximum input signal on digital-input mode
-
Periodically inspect the UP terminal fuse and verify 24 V DC supply integrity
-
When used in hazardous locations, ensure the overall installation complies with UL Class I Div 2 requirements
