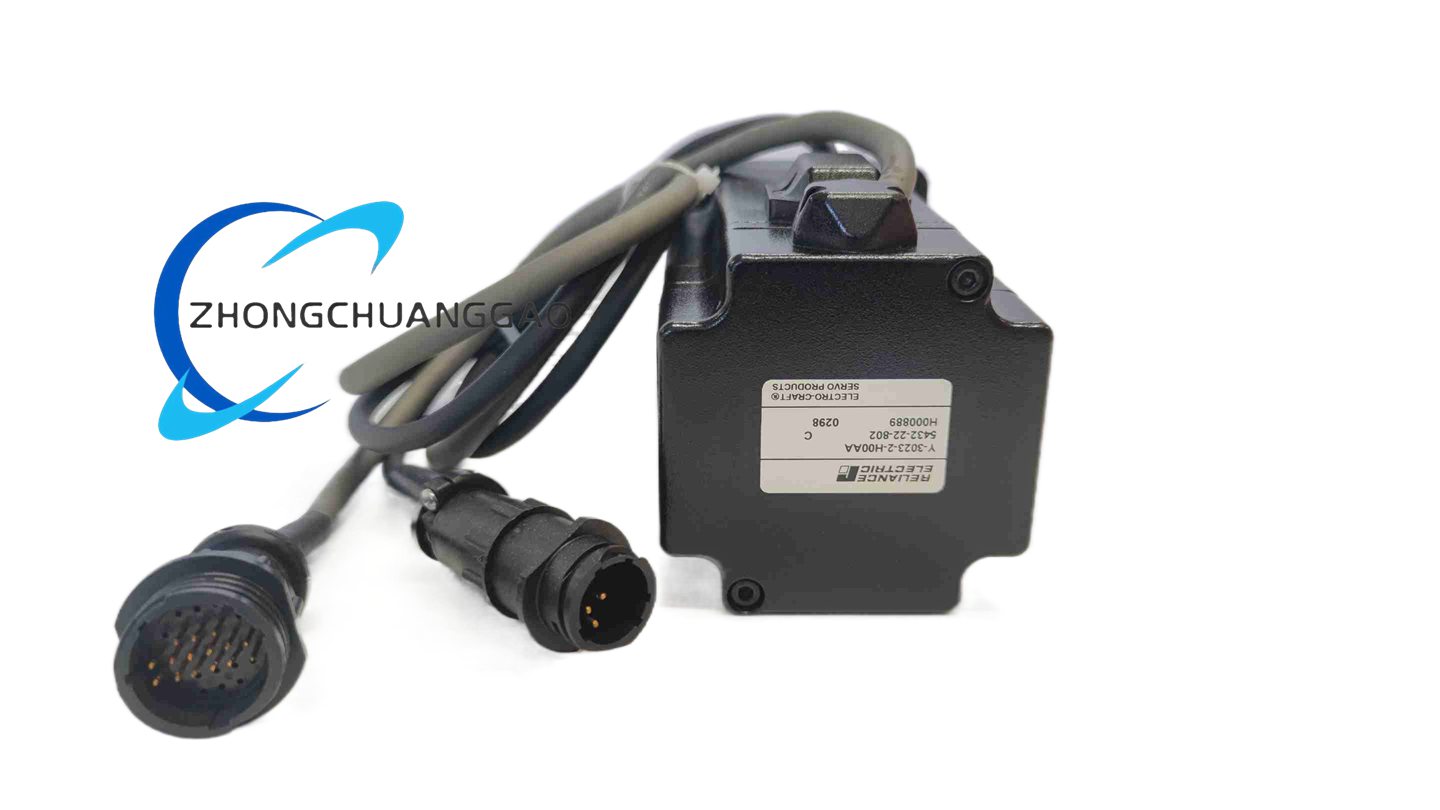

A‑B Y-3023-2-H00AA

Description

• Pole Count: 8 poles
• Maximum Operating Speed: 4500 RPM
• Continuous Stall Torque: 2.5 N·m
• Peak Torque: 7.1 N·m
• Built-in Encoder: Optical encoder, 2000 P/R, 5 VDC power supply
• Enclosure Protection Class: IP43
• Max Radial Shaft Load: 35 kg
• Thermal Resistance: 0.85 °C/W
• Weight: 3.94 kg
• Brake Configuration: Without holding brake

  Function Features

• Neodymium high-energy magnet rotor, low rotor inertia for fast acceleration and deceleration
• Integrated commutation & position feedback encoder
• Smooth speed regulation and high positioning accuracy
• Low torque ripple during continuous operation

  Application Scenarios: Automated assembly machines, packaging machinery, material handling equipment, CNC auxiliary axes, robotic auxiliary joints

  Material Composition: Aluminum alloy motor housing, silicon steel stator laminations, neodymium permanent magnet rotor, sealed ball bearings

  Structural Features: Flange mounting structure, integrated encoder rear cover, separated power cable and encoder cable interfaces

  Working Principle: Permanent magnet synchronous motor principle; servo driver outputs three-phase alternating current to generate rotating magnetic field, drives rotor rotation; encoder feeds real-time position and speed data back to servo drive for closed-loop control

  Installation Requirements: Standard flange mounting; ensure coaxial connection with load; align coupling precision to avoid radial overload

  Usage Notes

• Do not exceed specified maximum radial shaft load
• Keep ambient temperature within -10 °C ~ +40 °C
• Encoder wiring must use shielded cable to avoid signal interference
• Motor must be matched with corresponding Rockwell 1398 series servo drives
